Mining 220V Horizontal Vibrating Screen 3YK2160 Multi Layers Vibro Screening Machine

Large Image : Mining 220V Horizontal Vibrating Screen 3YK2160 Multi Layers Vibro Screening Machine

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	RUNWELL
Certification:	CE,ISO certificates
Model Number:	3YK2160

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 15000-35000
Packaging Details:	Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time:	10-20 working days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	50 sets per month

Contact Now

Mining 220V Horizontal Vibrating Screen 3YK2160 Multi Layers Vibro Screening Machine

Description

Application:	Ore,Mining	Warranty:	12 Months
Voltage:	220V/380V,415 V/50HZ	Condition:	New
Weight:	10.5t	Dimension(lwh):	Different Models
Type:	Vibrating Screen	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support
Power(Kw):	30	Product Name:	China Rotary Sand Vibrator Screen In High Quality Manufacture
Color:	Iron Grey,customized,black,as Per Customer's Demand	Material:	Carbon Steel,stainless Steel 304
Capacity:	50-400 TPH	Name:	Round Flour Sieving Machine Ultrasonic Vibrating Screen
Layer:	1-4	Usage:	Screening,Ore Sand,separation
Motor:	30Kw
Highlight:	Horizontal Vibrating Screen 3YK2160 , 220V Horizontal Vibrating Screen , Vibro Screening Machine

Product Description

YK Series Vibrating Screen

Application
The YK series circular vibrating screens adopt a high-speed eccentric wheel to drive the whole eccentric shaft as the source of the vibration exciter, boasting strong vibration force and high screening efficiency, and able to be used for classification of various loose stone materials, thus to effectively improve the production efficiency of the production line.

Main Features
1. High screening efficiency, adopts a high-speed eccentric wheel to drive the whole eccentric shaft as the source of the vibration exciter to achieve a stable vibration source and a strong vibration force.
2. Stable work, the equipment features smooth vibration and low noise by virtue of its structure design optimization, the high-speed bearings of an international well-known brand are configured, so that the equipment stability can be further improved.
3. Simple structure and convenient maintenance.

Technical Parameters

Model	Layers	Spec. of Screen (mm)	Max. Feed Size (mm)	Capacity (t/h)	Vibrating Frequency (hz)	Power (kw)	Overall Dimension (mm)
2YK1237	2	1200X3700	200	7.5-80	800-970	15	4642×2250×2659
3YK1237	3	1200X3700	200	7.5-80	800-970	15	4898×2250×3133
2YK1548	2	1500X4800	400	50-208	970	15	5802×2585×3053
3YK1548	3	1500X4800	400	50-250	970	15	6046×2585×3537
2YK1848	2	1800X4800	400	50-260	970	18.5	5802×2947×3053
3YK1848	3	1800X4800	400	50-300	970	18.5	6046×2947×3538
2YK1860	2	1800X6000	400	50-300	970	18.5	7011×2947×3471
3YK1860	3	1800X6000	400	50-350	970	22	7243×2987×3955
4YK1860	4	1800X6000	400	50-350	970	22	7498×2987×4439
2YK2160	2	2100X6000	400	100-500	730	22	7076×3402×3666
3YK2160	3	2100X6000	400	100-500	730	30	7284×3467×4092
4YK2160	4	2100X6000	400	100-500	730	30	7551×3467×4582
2YK2460	2	2400X6000	400	150-700	730	37	7046×3770×3603
3YK2460	3	2400X6000	400	150-700	730	37	7289×3782×4092

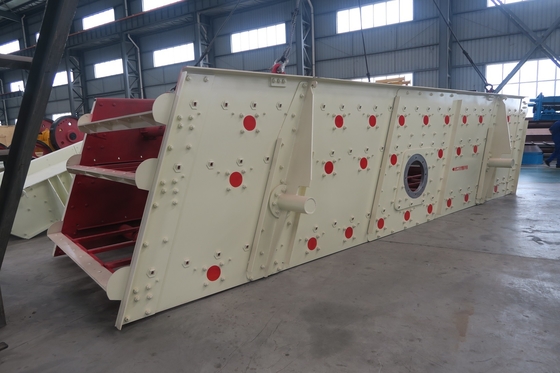

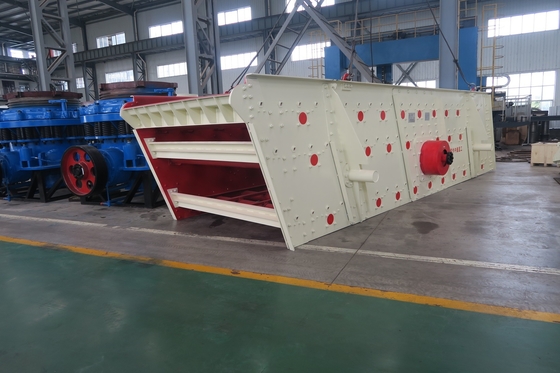

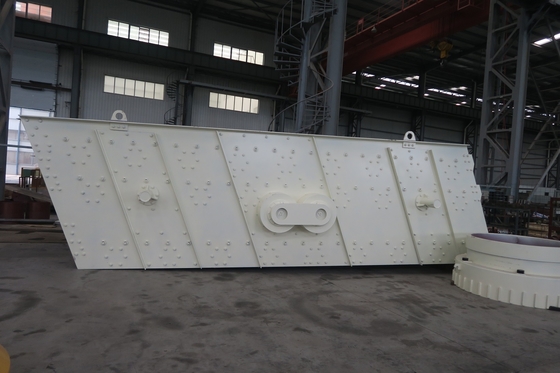

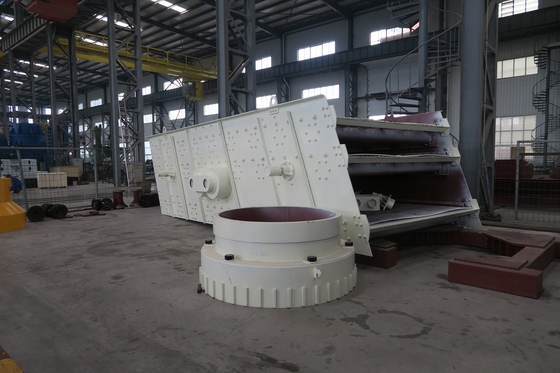

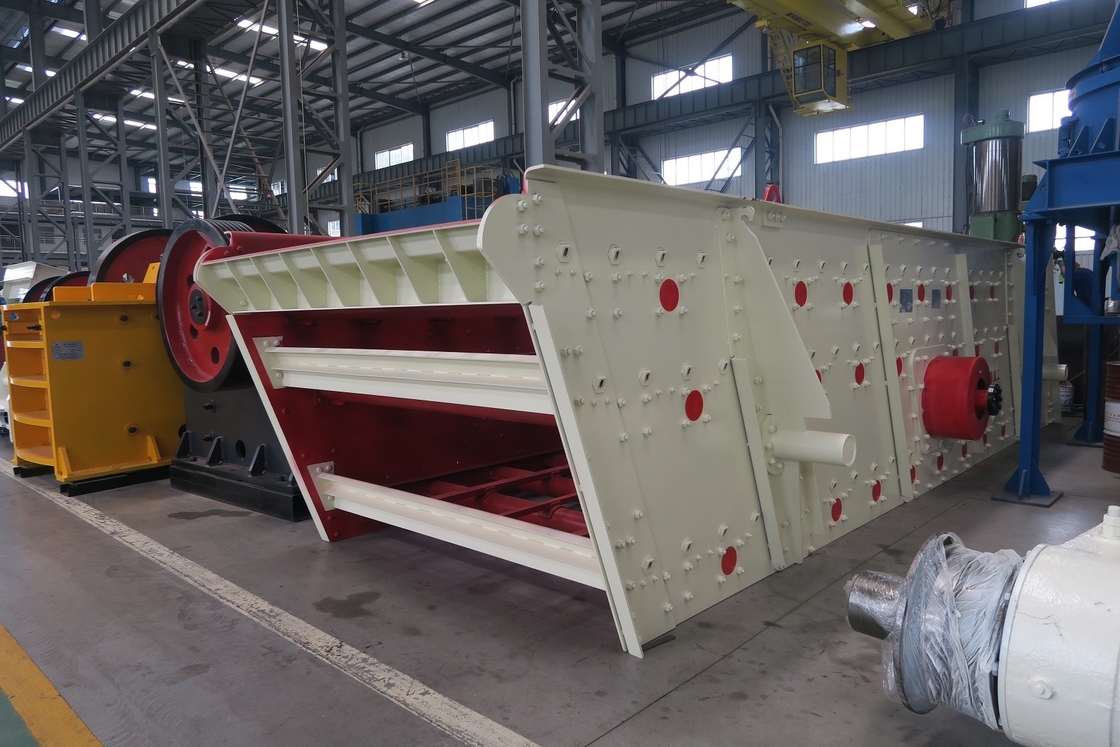

Site Photo

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (RUNWELL) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
Mining Machine Multi Layers Y Series Vibrating Screen for Aggregates Separation

Mining Machine Multi Layers Y Series Vibrating Screen for Aggregates Separation

Packaging and Shipping

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
