Product Details:
|
| Type: | Jaw Crusher | Capacity(t/h): | 200-350TPH |
|---|---|---|---|
| Max. Feeding Size: | 780MM | Discharge Range: | 95-225MM |
| HS Code: | 8474209000 | Dimension(l*w*h): | 3385*2870*3330mm |
| After-sales Service: | Engineer Assigned At Site | Warranty: | 12 Months |
| Condition: | New | Motor Type: | AC Motor,380V,50Hz,440V,60hz |
| Application: | Mining,Quarry,Construction,Stone, Cement Factory | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| Power(Kw): | 132KW | Spare Parts Supply: | Lifelong Time Of The Stone Crushers |
| The Machines Classification: | Building Stone Production Line,Crushing Equipment,Quarry | Installation: | Under Engineer's Guide,Professional Engineer Assigned |
| Name: | Jaw Crusher,Stone Jaw Crusher In India / Jaw Crusher Machine Price For Sale | ||
| High Light: | Granite Jaw Crusher Machine,Jaw Crusher Machine PE900*1200,100 TPH Stone Crusher Plant |
||

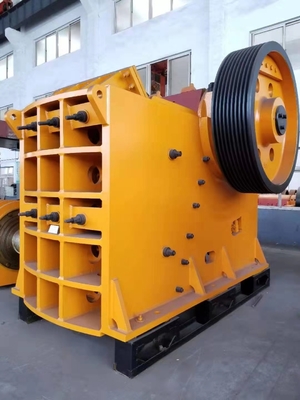

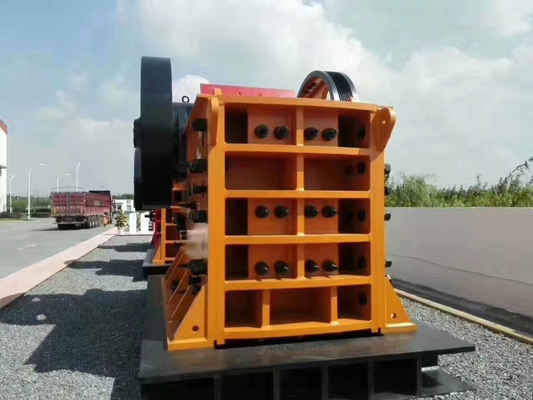

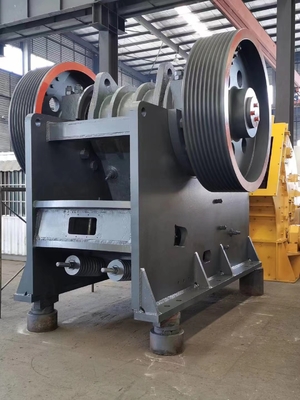

Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
The electrical motor transmits power to the eccentric shaft through v-belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw move upwards and downwards. This movement would trigger the toggle plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meet the requirement will be discharged from the outlet. Since the motor keeps working. The crusher will crush and discharge periodically to achieve mass production.
| Model | Feeding size(mm) | Max feeding size(mm) | Discharging Range size(mm) | Capacity (t/h) | Motor power(kw) | Weight (t) |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 30 | 6.5 |
| PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 55 | 10.6 |
| PE-600*900 | 600*900 | 500 | 65-180 | 80-180 | 55-75 | 15.5 |
| PE-750*1060 | 750*1060 | 630 | 80-180 | 110-320 | 90-110 | 28 |
| PE-800*1060 | 800*1060 | 680 | 100-200 | 140-340 | 90-110 | 30 |
| PE-870*1060 | 870*1060 | 750 | 170-270 | 180-360 | 90-110 | 30.5 |
| PE-900*1060 | 900*1060 | 780 | 200-290 | 200-380 | 90-110 | 31 |
| PE-900*1200 | 900*1200 | 780 | 95-225 | 220-450 | 110-132 | 49 |
| PE-1000*1200 | 1000*1200 | 850 | 195-280 | 280-550 | 110-132 | 51 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 15 | 3.5 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 22 | 4.9 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 37 | 7.7 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 25-95 | 75 | 11 |
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
