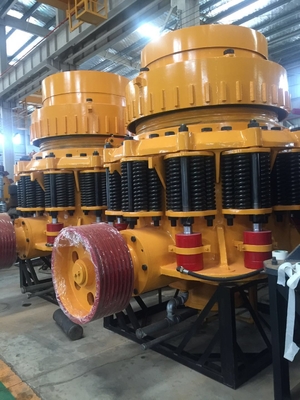

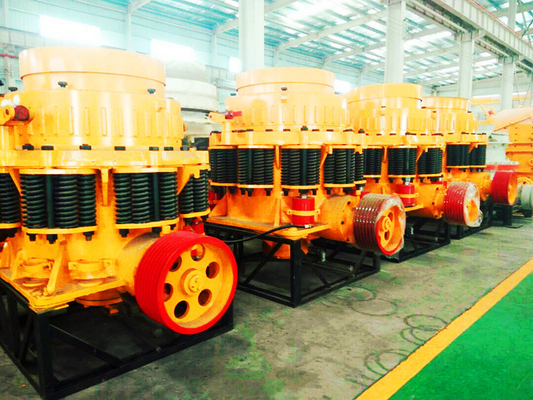

PSGB 1310 Cone Crusher Machine Copper Iron Ore Small Portable Concrete Crusher

Mining Copper Iron Ore Stone Crushing Machine Symons Hydraulic Concrete Marble Rock Cone Crusher

Product Description

Symons cone crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. Also symons cone crusher uses the compensating lubricating grease sealing, it can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system of cone crusher uses several spring sets, so the matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably. The cone crusher has standard type and short head type, the standard type is suitable to medium size and the short head type for medium and fine crushing.

Working Principle

Features

Symons cone crusher features :
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.

Specification

Manufacturer Price Large Capacity Stone Crushing Machine Rock Granite Symons Cone Crusher

Symons cone crusher is widely used for the metallurgical industry, construction material industry, road building industry,
chemical industry and silicate industry etc.

It can crush materials with medium hardness, such as iron ores, copper ores, limestone, quartz, granite, grit-stone, etc,which can be used as secondary, tertiary or quaternary crushing machinery.

Performance Features

1.The quick -wearing spare parts are made by highly wear-resistant materials,less consumption ,lower running cost.
2.The diversification of cavity type can meet the needs of different users.
3.Hydraulic protection and hydraulic clearance,high degree of automation ,easy operation,maintenance more convenient.
4.The independent multi-point lubrication system control can realize automatic machine security.
5.The use of large-diameter shaft and heavy-duty main frame to ensure that the equipment rugged and reliable operation.

Model	Dia.of Cone	Cavity	Feed Opening Size(mm)		Output Size(mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overall Dimension(mm)
			Closing Size	Opening Size
CSB75	900(3')	Fine	83	102	9-22	45-91	75	15	2821*1880*2164
		Coarse	159	175	13-38	59-163
CSB160	1295(41/4')	Fine	109	137	13-31	109-181	155	27	2800*2342*2668
		Medium	188	210	16-38	132-253
		Coarse	215	241	19-51	172-349
CSB220	1676(51/2')	Fine	188	209	16-38	181-327	220	55	3911*2870*3771
		Medium	213	241	22-51	258-417
		Coarse	241	268	25-64	299-635
CSB315	2134(7')	Fine	253	278	19-38	381-726	315	110	4613*3251*4732
		Medium	303	334	25-51	608-998
		Coarse	334	369	31-61	789-1270

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
