Product Details:
|
| Type: | Cone Crusher | Application: | Mining,construction,Quarry,etc,ore |
|---|---|---|---|
| Max Feeding Size: | 145mm | Discharge Range: | 20-50mm |
| Capacity(t/h): | 110-200tph | Power(Kw): | 110Kw 380V,50Hz |
| Condition: | New | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training | Certification: | CE&ISO |
| Color: | Iron Grey,white,grey Or Customized | Product Name: | High-efficiency Stone Cone Crusher, Widely-used Mining Equipment |
| Installation: | Guided By Our Senior Engineer | Quality: | High Leavel, High Reputation, CE |
| The Machines Classification: | Spring Cone Crusher Machine Plant Price,Building Stone Production Line | Model: | PYB-600,PYB-900,PYB-1200,PYB-1750,PYB-2200 |
| Highlight: | Secondary Cone Crusher Machine,Cone Crusher Machine PYB1200,Granite Crusher Machine |
||

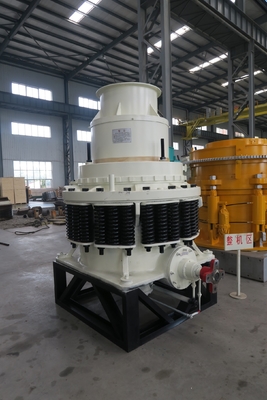

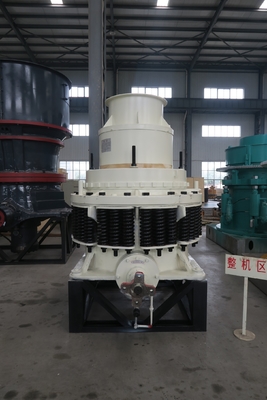

Spring cone crusher is suitable to crush kinds of ores and rocks with medium hardness and above. It has features of reliable structure,high efficiency,high capacity,low operating cost,easy adjustment ,economical to use and so on. Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine. It adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.
1.Large crushing force,good particle shape,high efficiency.
2.The quick -wearing spare parts are made by highly wear-resistant materials,less consumption ,lower running cost.
3.The diversification of cavity type can meet the needs of different users.
4.Hydraulic protection and hydraulic clearance,high degree of automation ,easy operation,maintenance more convenient.
5.The independent multi-point lubrication system control can realize automatic machine security.
6.The use of large-diameter shaft and heavy-duty main frame to ensure that the equipment rugged and reliable operation.
Spring cone crusher working principle :During operation, the motor of goodpy series spring cone crusher price drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed. To ensure the precision of thrust bearing installation in spring cone crusher, installation must be the following steps: first, the installation of the thrust bearing should be same to steps of scratching; jaw plate placed in a case back should be smooth,if case back has the burr and the remaining sand,please clean up.Then pour lubricating oil to just the top of jaw plate. then install the middle circle plate and circle plate. Finally, install the air eccentric shaft, spherical tile racks, and spindle. When installing air eccentric shaft,the big gear weight should be placed in the top of small gear,so that the outer end of bevel gear is alignment. After spherical wham installed, the gap between spherical bearing seat and the main machine is as big as possible.
spring cone crusher technology specfications:
