Product Details:
|
| Type: | Cone Crusher | Capacity(t/h): | 210-530 |
|---|---|---|---|
| Max Feeding Size: | 235mm | Discharge Range: | 30-60mm |
| Power(Kw): | 220Kw | Application: | Mining,construction,Quarry,etc,ore |
| Warranty: | 12 Months | Certification: | CE&ISO |
| Color: | Iron Grey,white Yellow Blue Red,grey Or Customized | Product Name: | High-efficiency Stone Cone Crusher With Good Price,Widely-used Mining Equipment |
| Installation: | Under Our Technical Guidance,guided By Our Senior Engineer | Spare Parts Supply: | Lifelong Time |
| Quality: | High Leavel,High Reputation,CE | The Machines Classification: | Spring Cone Crusher Machine Plant Price,Building Stone Production Line |
| Model: | ZX1200,ZX1400, ZX1650 Models | ||
| Highlight: | Cone Crusher Machine 220Kw,235mm Cone Crusher Machine,Symons 5.5 Cone Crusher |
||

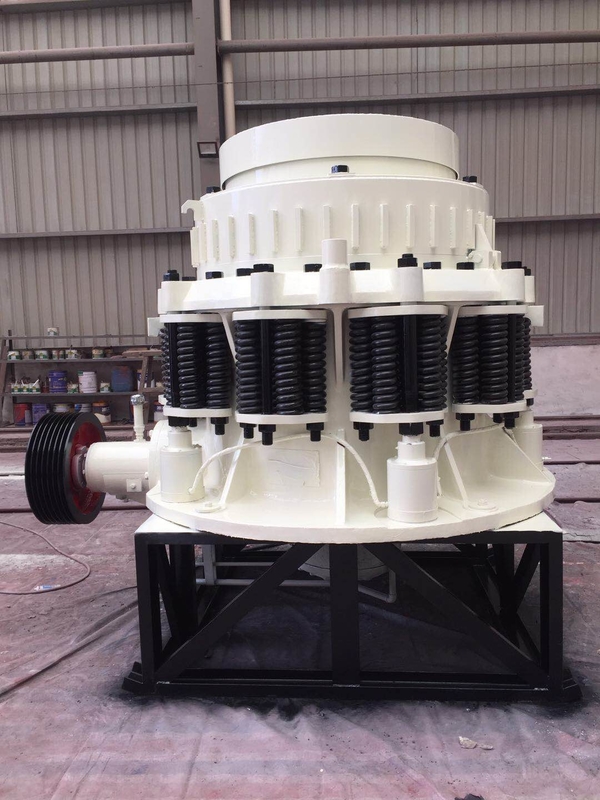

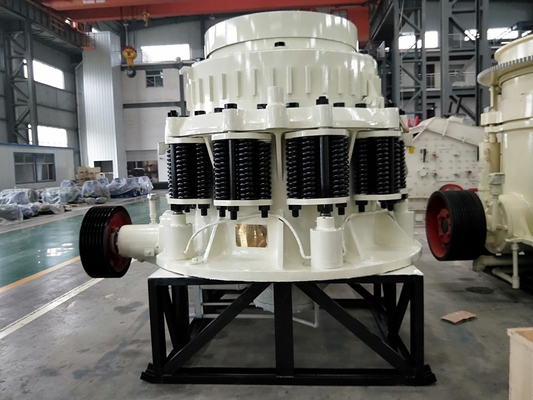

ZX compound cone crusher is a high performance cone crusher relible performance and superior quality.It has hydraulic clearing system,hydraulic opening adjustingfunction,easy for changing movable and fixed plate,dacreasing managemengt and maintence cost,It is widely used for medium and fine crushing of granite,basalt,disbase,cobble,cobblestone,iron,ore etc.which is well received by customers.
ZX compound cone crusher manufacturer work, the rotation of the motor through the pulley or coupling, drive shaft and the cone of force in the eccentric sleeve moving around a fixed for rotary movement, so that the cone crusher in the crushing wall and near and sometimes leave is fixedly arranged on the regulating sleeve rolling white surface, the ore constantly under attack in the crushing cavity, extrusion and bending and crushing ore achieved. At unbreakable foreign body through the crushing chamber or for some reason compound cone crusher manufacturer is overloaded, the spring system of insurance, the mouth of discharge increases, foreign bodies from the crushing chamber is discharged, such as blocking in row ore using cavity cleaning system, so that the discharging continues to increase, so that the foreign body removal of crushing cavity. Under the action of the spring, the gape is automatically reset, the machine returns to normal work.
| Model | Cavity Type | Stroke(mm) | Max.Feeding Size(mm) | Discharging Opening Adjusted Scope(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) |
| ZX1650 | Coarse | 34 | 300 | 35-65 | 280-610 | 250 | 35 |
| ZX1650 | Coarse | 34 | 260 | 30-60 | 2665-580 | 250 | 35 |
| ZX1650 | Medium Coarse | 34 | 240 | 25-60 | 240-550 | 250 | 35 |
| ZX1650 | Fine | 28 | 130 | 20-45 | 180-350 | 250 | 35 |
| ZX1400 | Coarse | 30 | 235 | 30-60 | 210-530 | 220 | 25 |
| ZX1400 | Medium Coarse | 30 | 215 | 25-50 | 200-500 | 220 | 25 |
| ZX1400 | Medium Coarse | 25 | 180 | 22-45 | 180-475 | 220 | 25 |
| ZX1400 | Fine | 25 | 100 | 19-40 | 130-260 | 220 | 25 |
| ZX1200 | Coarse | 22 | 180 | 19-50 | 110-250 | 132 | 16 |
| ZX1200 | fine | 15 | 80 | 16-40 | 80-180 | 132 | 16 |
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
