Product Details:
|
| Type: | Cone Crusher | Capacity(t/h): | 58-137tph |
|---|---|---|---|
| Power(Kw): | 75 Kw | Discharge Range: | 6-19mm |
| Max Feeding Size: | 76mm | Weight: | 15.2 Tons |
| Application: | Mining,construction,Quarry,etc,ore, Granite Mine, Limestone Mine | Warranty: | 12 Months From Production |
| Certification: | CE&ISO Certificates | Color: | Iron Grey,white Yellow Blue Red,grey Or Customized |
| Installation: | Under Our Technical Guidance,guided By Our Senior Engineer | Spare Parts Supply: | Lifelong Time |
| High Light: | CS Mobile Stone Crusher Machine,Mobile Stone Crusher Machine PYFB917,CS Cone Crusher |
||

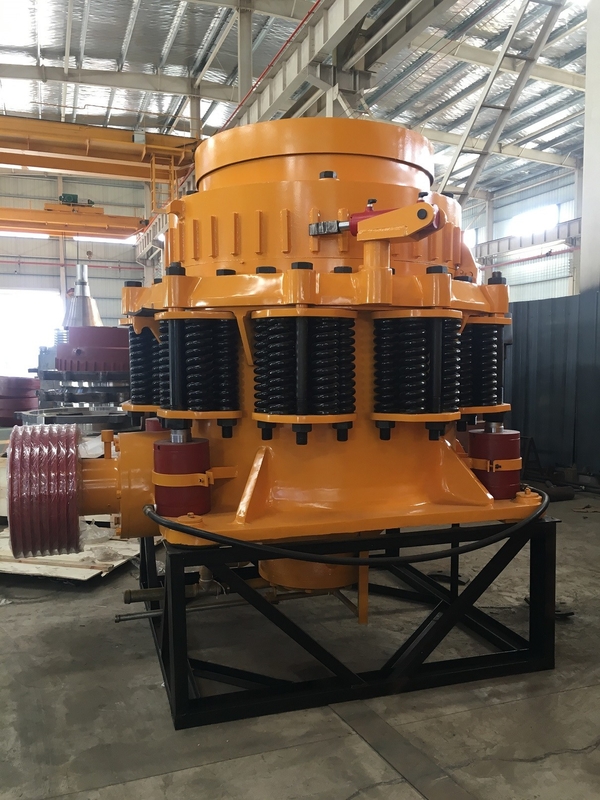

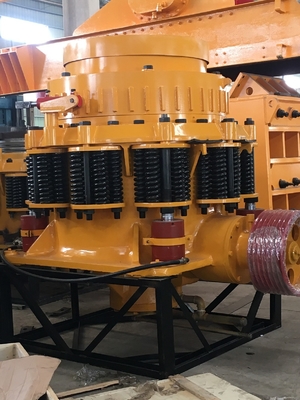

Symons cone crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. Also symons cone crusher uses the compensating lubricating grease sealing, it can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system of cone crusher uses several spring sets, so the matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably. The cone crusher has standard type and short head type, the standard type is suitable to medium size and the short head type for medium and fine crushing.
Working Principle:
Specification:
CS Series Symons Cone Crusher,CS series spring pyfb917 cone crusher price , trituradora de cono de primavera
| Model | Movable Cone Diametermm (inch) | Chamber Style | Opening Side | Closed Side | Discharging Opening (mm) | REV (r/min) | Power (kw) | Machine Size (mm) |
| Max.Feeding (mm) | ||||||||
| CSB75 | 900 (3′) | medium | 83 | 102 | 9-22 | 580 | 6-75 | 2821×1880 ×2164 |
| coarse | 159 | 175 | 13-38 | |||||
| CSD75 | 914 (3′) | fine | 13 | 41 | 3-13 | 580 | 6-75 | 2821×1880 ×2410 |
| medium | 33 | 60 | 3-16 | |||||
| coarse | 51 | 76 | 6-19 | |||||
| CSB160 | 1295 (4 1/4′) | fine | 109 | 137 | 13-31 | 485 | 6-185 | 2800×2342 ×2668 |
| medium | 188 | 210 | 16-31 | |||||
| coarse | 216 | 241 | 19-51 | |||||
| CSD160 | 1295 (4 1/4′) | fine | 29 | 64 | 3-16 | 485 | 6-160 | 2800×2342 ×2668 |
| medium | 54 | 89 | 6-16 | |||||
| coarse | 70 | 105 | 10-25 | |||||
| CSB240 | 1650 (5 1/2′) | fine | 188 | 209 | 16-38 | 485 | 6-240 | 3911×2870 ×3771 |
| medium | 213 | 241 | 22-51 | |||||
| coarse | 241 | 268 | 25-64 | |||||
| CSD240 | 1650 (5 1/2′) | fine | 35 | 70 | 5-13 | 485 | 6-240 | 3917×2870 ×3771 |
| medium | 54 | 89 | 6-19 | |||||
| coarse | 98 | 133 | 10-25 | |||||
| CSB400 | 2134 (7′) | fine | 253 | 278 | 19-38 | 435 | 6-400 | 5200×4300 ×4700 |
| medium | 303 | 334 | 25-51 | |||||
| coarse | 334 | 369 | 31-64 | |||||
| CSD400 | 2134 (7′) | fine | 51 | 105 | 5-16 | 435 | 6-400 | 5200×4300 ×4700 |
| medium | 95 | 133 | 10-19 | |||||
| coarse | 127 | 178 | 13-25 | |||||
Cone Crusher Types
Besides cs symons cone crusher, we also have spring cone crusher, hydraulic cone crusher and single-cylinder cone crusher for sale.
When the cone crusher is working, the engine rotates around a fixed point through the belt wheel or the coupling, meanwhile the transmission shaft and the conical part of the cone crusher are taken under the force of the eccentric bushing, which makes the crushing wall close to the pierced mortar wall at intervals. Then, the ores will be impacted, squeezed and bent constantly in the crushing chamber, resulting in the crushing of the ores.
1. Our cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2. The crushed materials are of equal size, thus reducing circulating load.
3. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4. Cone crushers with different chambers are available, to meet our customers' requirements.
5. Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6. As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.
Questions & Answers
Questions & Answers:
Q1: How to choose the suitable model ?
