VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine

Name: VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine
Brand: Shanghai Runwell Machinery Equipment Co.,Ltd
SKU: VSI-8518
Price: 45,000.00 USD
Availability: InStock

All Products

Jaw Crusher Machine
(42)

Cone Crusher Machine
(51)

Impact Crusher Machine
(21)

Vertical Shaft Impact Crusher
(14)

Hammer Crusher Machine
(15)

Double Roller Crusher
(5)

Vibrating Feeder Machine
(14)

Vibrating Screen Machine
(22)

Transfer Belt Conveyor
(23)

Powder Grinding Mill
(12)

Stone Crusher Spare Parts
(19)

Mobile Crusher Machine
(13)

Used Mobile Crusher
(6)

Best Products

VSI Series Robo Making Sand Manufacturing Machine 520 TPH For Riverstone And Granite

650 TPH Vertical Shaft Impact Crusher VSI5X7615 , 220Kw Stone Shaping Machine

VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine

Certification

I'm Online Chat Now

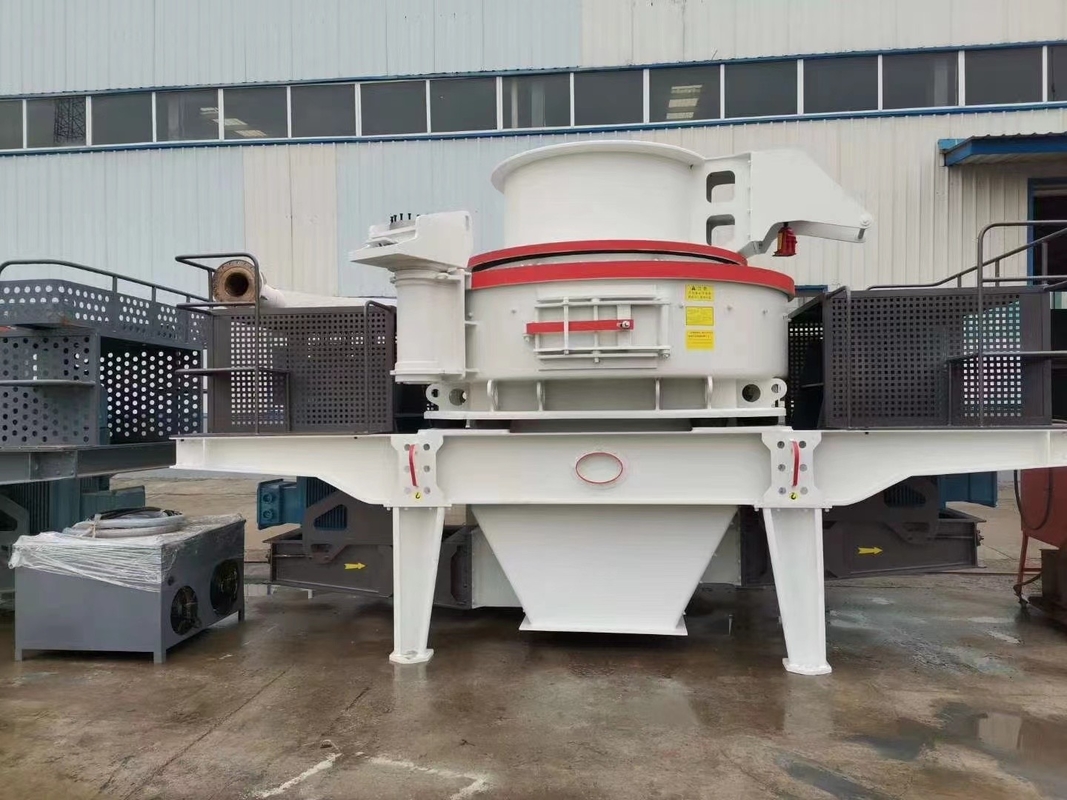

VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine

Large Image : VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	RUNWELL
Certification:	CE,ISO certificates
Model Number:	VSI-8518

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 40000-50000
Packaging Details:	Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time:	10-20 working days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	20 sets per month

Contact Now

VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine

Description

Application:	Mining,Quarry,granite,chemical Industry And Construction	Condition:	New
Weight:	15t	Dimension(lwh):	485027903320
Warranty:	12 Months	Type:	Impact Crusher
Motor Type:	AC Motor	Capacity(t/h):	100-260
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Certification:	CE&ISO
Color:	Customizable,Iron Grey,yellow,White,blue	Spare Parts Supply:	Lifelong Time
The Machines Classification:	Building Stone Production Line,sand Making Machine	Power(w):	90Kw*2
Max Feeding Size:	50mm	Installation:	Engineer Guide,Online Installation,Engineers Available To Service Machi
Keyword:	Stone Impact Crusher,Road Construction Machine Impact Crusher	Product Name:	Vertical Shaft Impact Crusher
After Sale Service:	Life Time
Highlight:	VSI 8518 Vertical Shaft Impact Crusher , 90Kw Vertical Shaft Impact Crusher , Building Aggregates Artificial Sand Making Machine

Product Description

VSI/VSI5X Vertical Shaft Sand Making Machine

Application of VSI/VSI5X
Quarry, sand concrete, dry mortar, manufactured sand, power plant desulfurization, quartz sand, etc. This machine is designed to make high quality sand for highway, high-speed railway, high-rise buildings, municipal engineering, hydropower dam construction and aggregate concrete mixing station. Its the best choice in the field of artificial sand and stone shaping equipment. Suitable materials like Cobble, granite, basalt,iron ore, limestone, calcite, quartzite, diabase, etc.

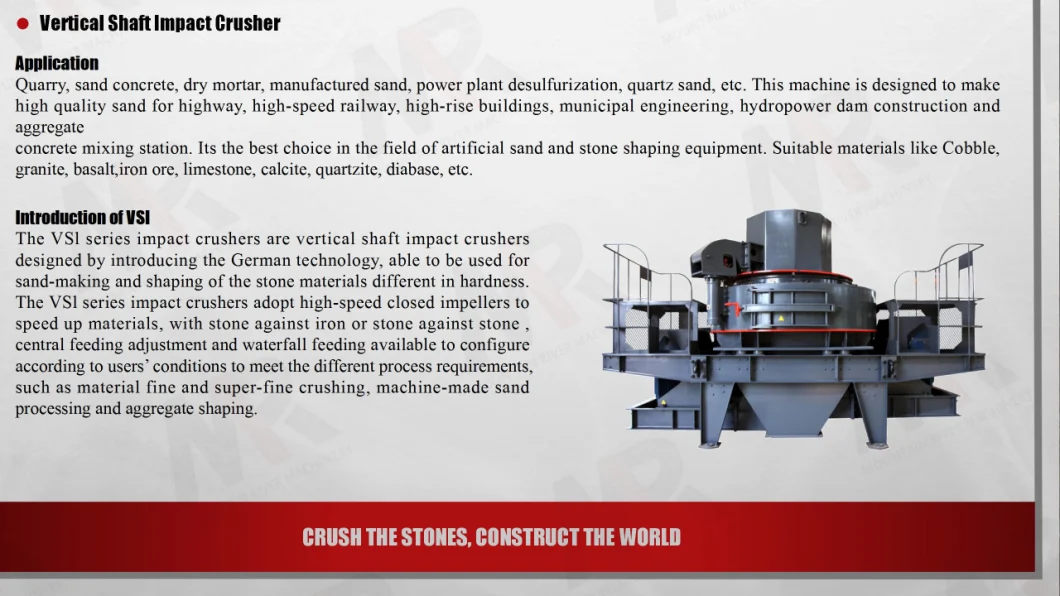

Introduction of VSI
The VSl series impact crushers are vertical shaft impact crushers designed by introducing the German technology, able to be used for sand-making and shaping of the stone materials different in hardness. The VSl series impact crushers adopt high-speed closed impellers to speed up materials, with stone against iron or stone against stone , central feeding adjustment and waterfall feeding available to configure according to users' conditions to meet the different process requirements, such as material fine and super-fine crushing, machine-made sand processing and aggregate shaping.
VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine 0

VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine 0

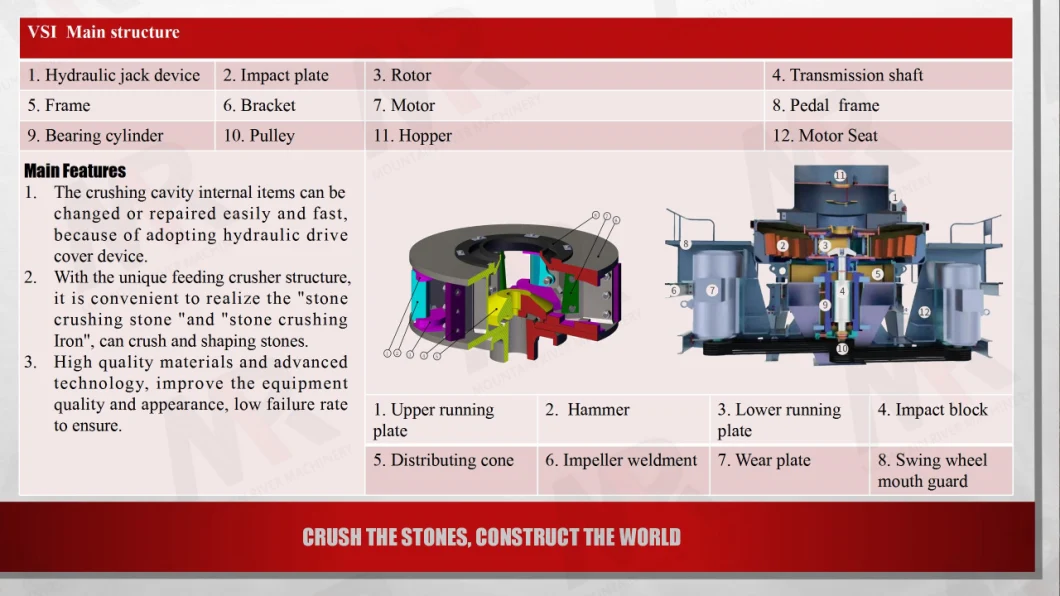

Main Structure&Features of VSI
1. The crushing cavity internal items can be changed or repaired easily and fast, because of adopting hydraulic drive cover device.
2. With the unique feeding crusher structure, it is convenient to realize the "stone crushing stone "and "stone crushing Iron", can crush and shape stones.
3.High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure.

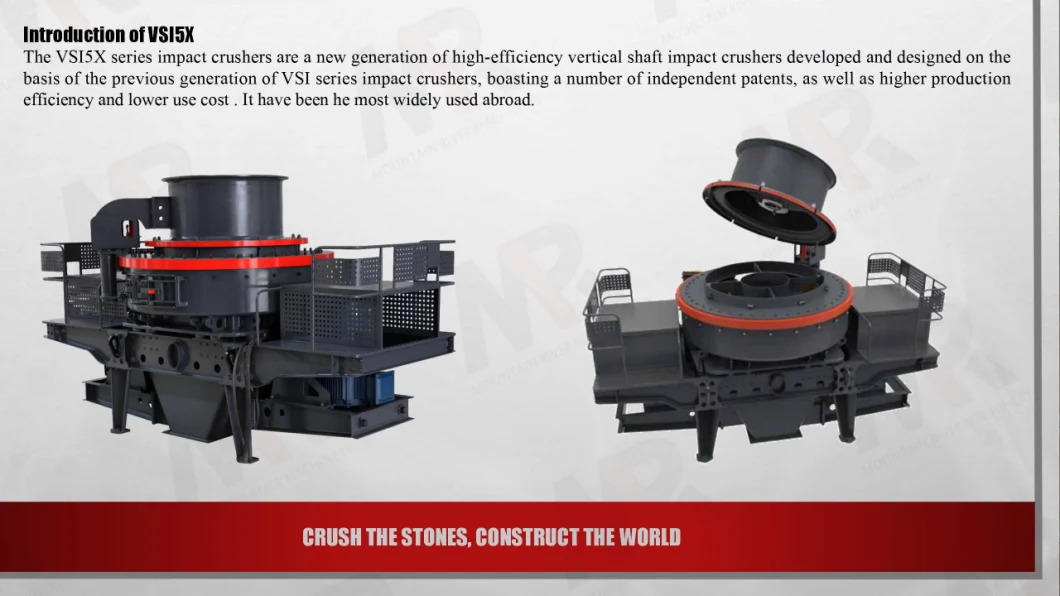

Introduction of VSI5X
The VSI5X series impact crushers are a new generation of high-efficiency vertical shaft impact crushers developed and designed on the basis of the previous generation of VSI series impact crushers, boasting a number of independent patents, as well as higher production efficiency and lower use cost . It have been he most widely used abroad.
VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine 2

VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine 2

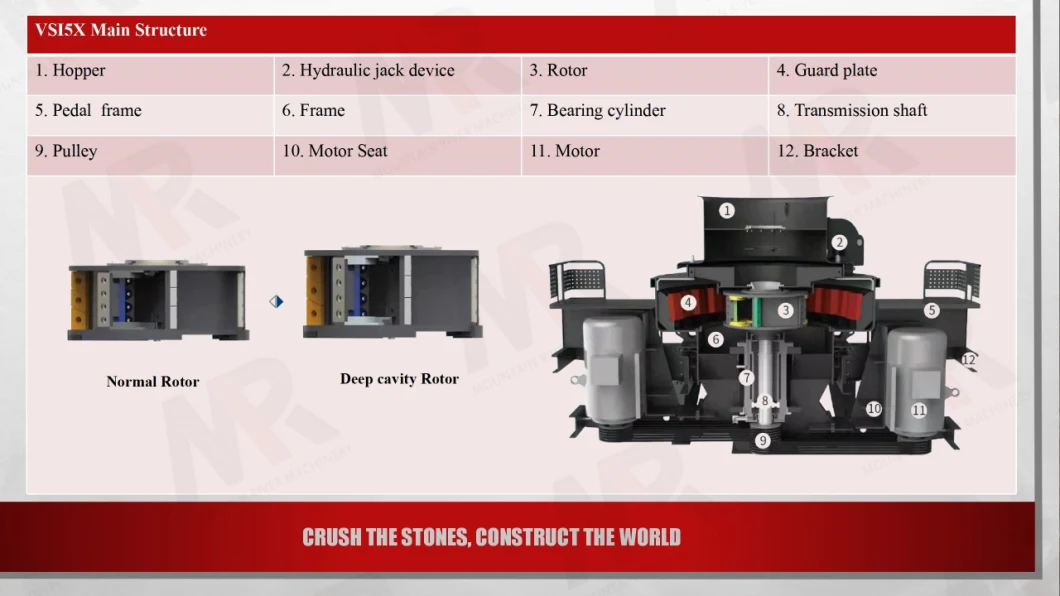

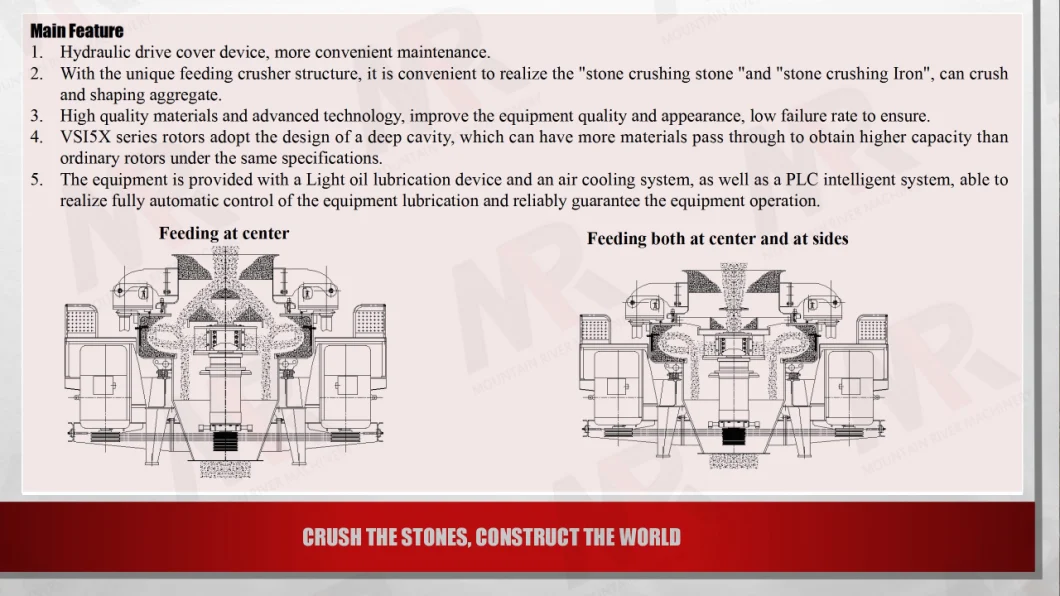

Main Structure of VSI5X

Features of VSI5X

Technical Parameters

Model	Capacity (t/h)		Max. feeding size (mm)		Rotation Speed (r/min)	Double Motor Power (kw)	Dimension (mm)
Model	Feed both at Center and at sides	Feed at center	Soft material	Hard material	Rotation Speed (r/min)	Double Motor Power (kw)	Dimension (mm)
VSI5X7615	150-280	70-140	<35	<30	1700-1900	110-150	4100×2330×2300
VSI5X8522	240-380	120-200	<40	<35	1500-1700	180-220	4140×2500×2700
VSI5X9532	350-540	180-280	<45	<40	1300-1510	260-320	4560×2600×2900
VSI5X1145	500-640	250-360	<50	<45	1100-1310	400-440	5100×2790×3320
VSI7611	120-180	60-90	<35	<30	1700-1890	110	3880×2350×2300
VSI 8518	200-260	100-130	<40	<35	1520-1690	180	3900×2500×2700
VSI9526	300-380	150-190	<45	<40<>	1360-1510	264	4360×2600×2900
VSI1140	450-520	225-260	<50	<45<>	1180-1310	400	4850×2790×3300

Site Photo

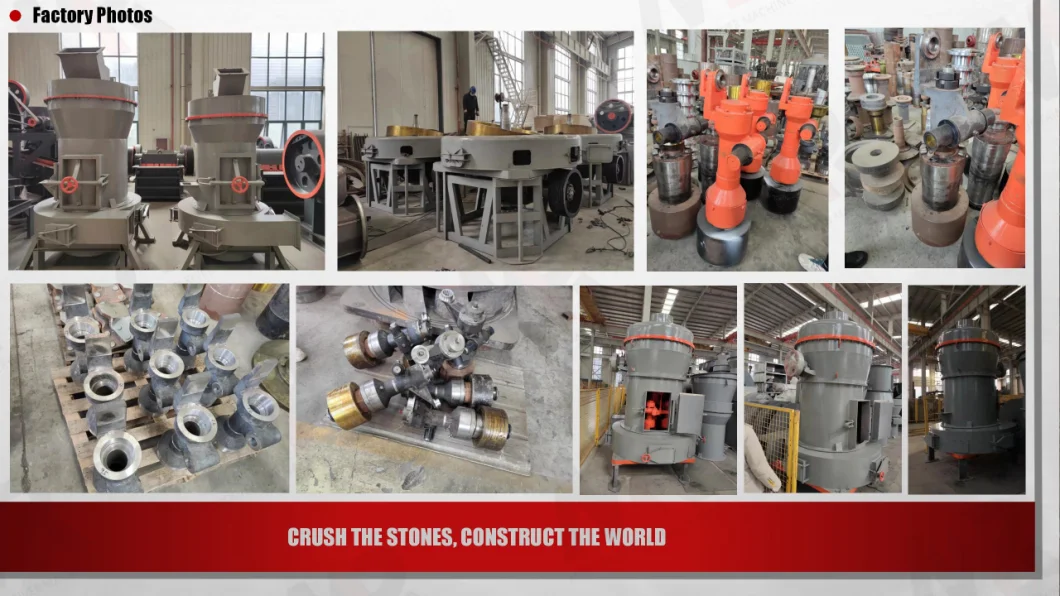

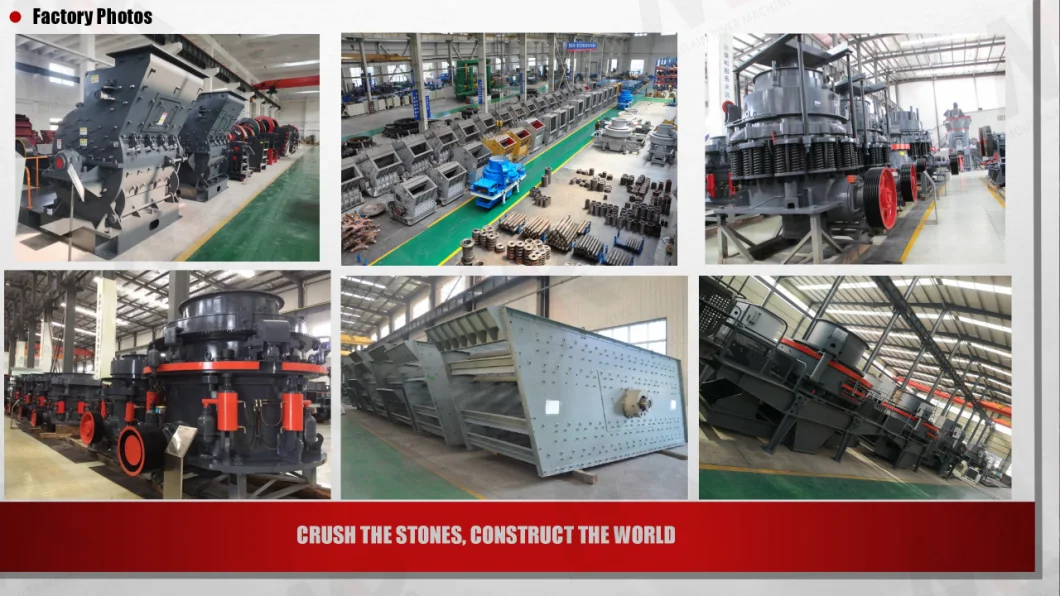

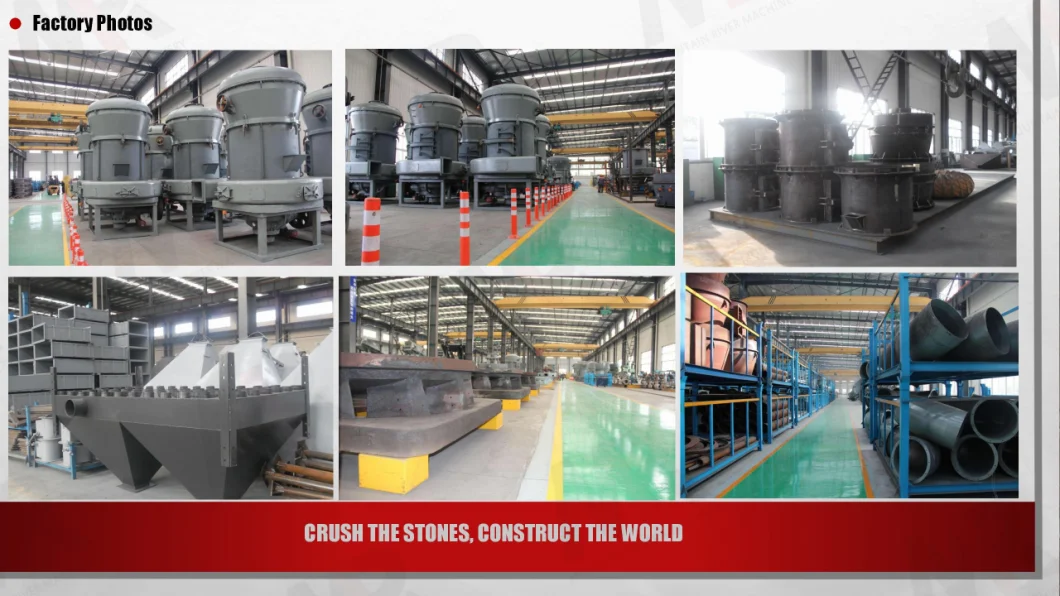

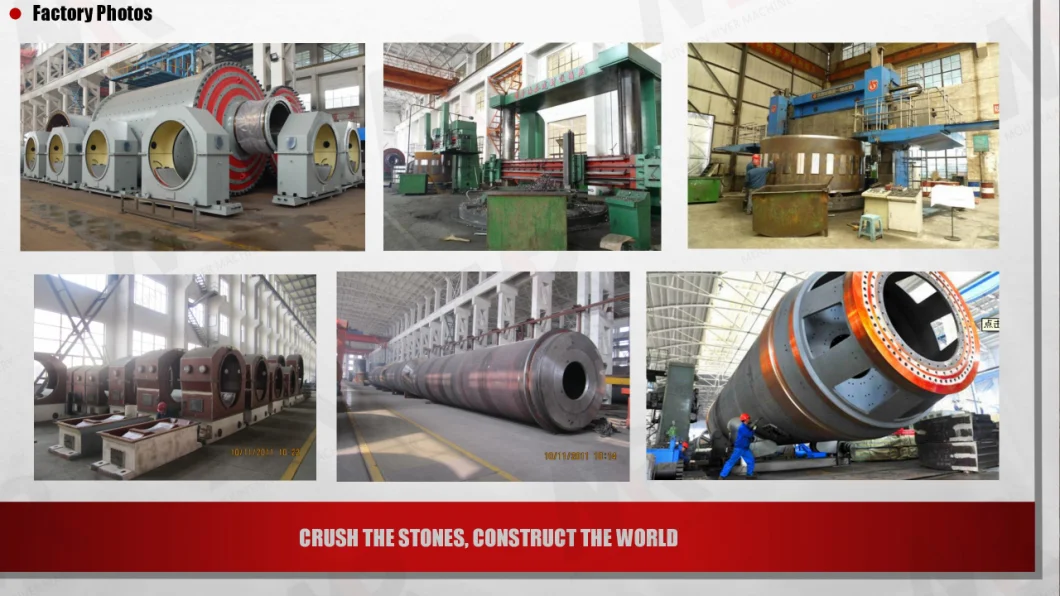

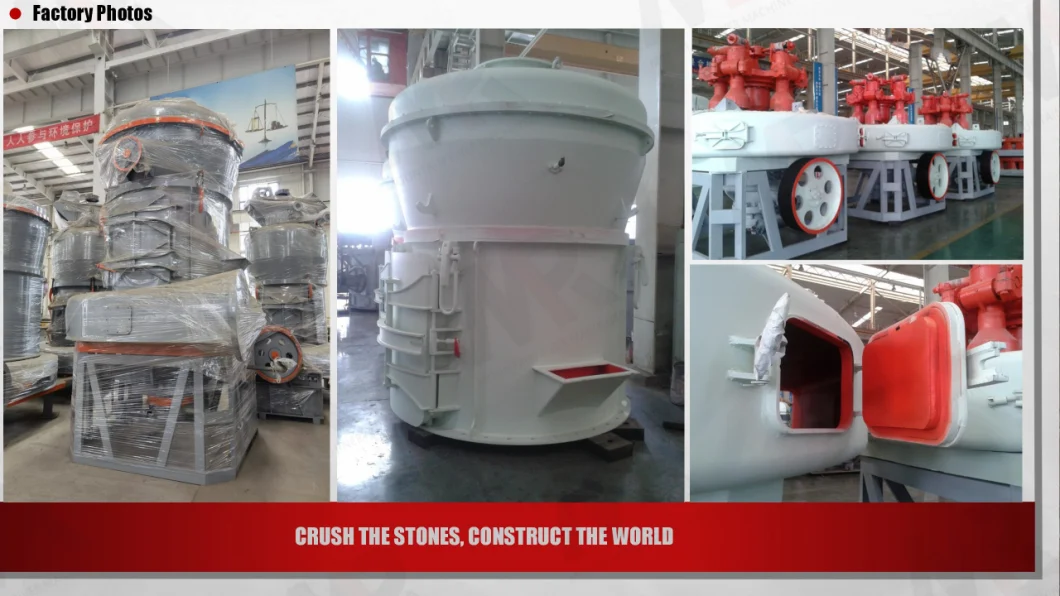

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (RUNWELL) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine 9

VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine 9

VSI 8518 90Kw Vertical Shaft Impact Crusher Building Aggregates Artificial Sand Making Machine 10

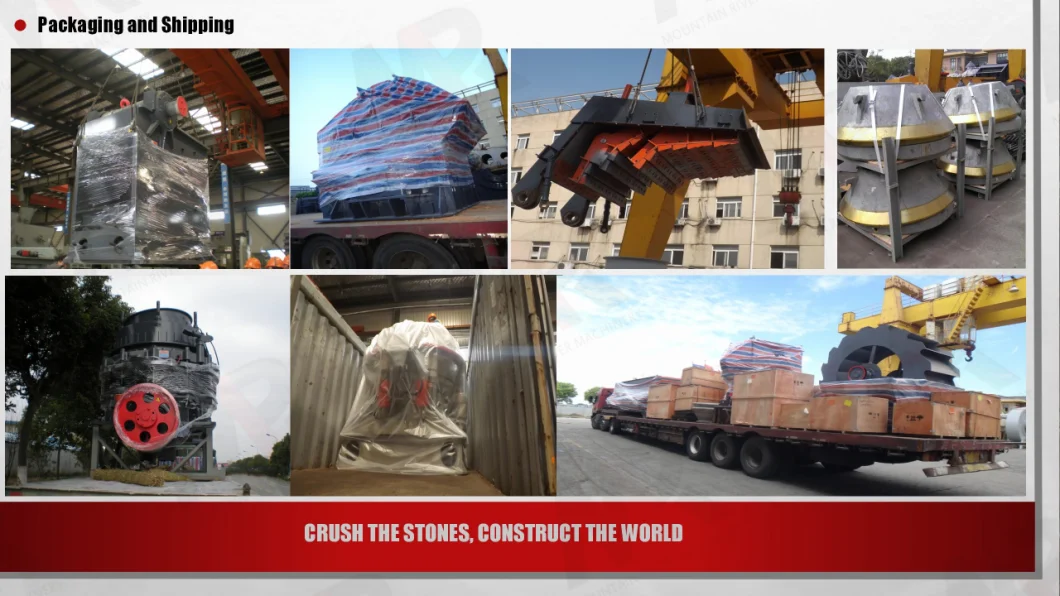

Packaging and Shipping

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
