Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher

Certification
China Shanghai Runwell Machinery Equipment Co.,Ltd certification
China Shanghai Runwell Machinery Equipment Co.,Ltd certification
I'm Online Chat Now

Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher

Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher
Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher
Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher

Large Image :  Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher

Product Details:
Place of Origin: Shanghai, China
Brand Name: RUNWELL
Certification: CE,ISO certificates
Model Number: PF1520
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 80000-85000
Packaging Details: Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union,L/C, MoneyGram
Supply Ability: 20 sets per month

Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher

Description
Application: Granite Crusher, Limestone Crusher, Coal Crusher Capacity(t/h): 300-550tph
Max Feeding Size: 500 Mm Weight: 43t
Dimension(l*w*h): 3890×3560×3220mm Warranty: 12 Months
Power(Kw): 400KW Certification: CE&ISO Certificates
Color: Iron Grey,yellow,White,blue,Customizable, Or OEM The Machines Classification: Building Stone Production Line,sand Making Machine,big Stone Impact Crusher
Keyword: Road Construction Machine Impact Crusher Product Name: Hot-selling Impact Crusher Price For Limestone,basalt, Coal,granite,PF And PFW Impact Crusher
Highlight:

Phosphate Rock Impact Crusher Machine

,

Porcelain Impact Crusher Machine

,

Rock Salt Crusher

Phosphate Rock Porcelain Powder Cement Impact Crushers primary impact crusher rock salt crusher

Areas for Application

Impact crushers are widely used in metallurgy, mining, cement, chemical industry, refractory materials, and ceramics, as well as highway construction, water conservancy projects, demolition debris, and mechanical sand processing.It is used for crushing various materials with side lengths not exceeding 500mm and compressive strength not exceeding 360Mpa. It has better applicability to granite, limestone, river pebbles, etc.


Impact Crusher Features

1.High efficiency and energy saving
2.Excellent product particle shape
3.Unique impact liner
4.Simple structure
5.Simple and reliable operation
6.Adjustable size of discharging material
7.Abrasion resistance and pressure resistance
8.Unique structure, no key connection




Impact crusher introduction

This machine can handle a wide variety of materials with particle sizes up to 500mm and compressive strengths up to 360 MPa. It has a large crushing ratio, high crushing efficiency, and is simple to maintain. The cubic shape of the finished product makes it perfect for processing high-grade road paving and aggregates used in hydropower construction. The impact crusher is widely utilized in the fields of highway building, water conservancy projects, and gravel processing for construction due to its outstanding performance and good performance.





Product Parameters
Model PF1315
Rotor Diameter*Length(mm) 1300*1500
Inlet Size(mm) 860*1520
Maximum Feed Size(mm) 350
Production Capacity(t/h) 120-260
Power(kw) 6-200
Dimensions(mm) 2930*2760*3050

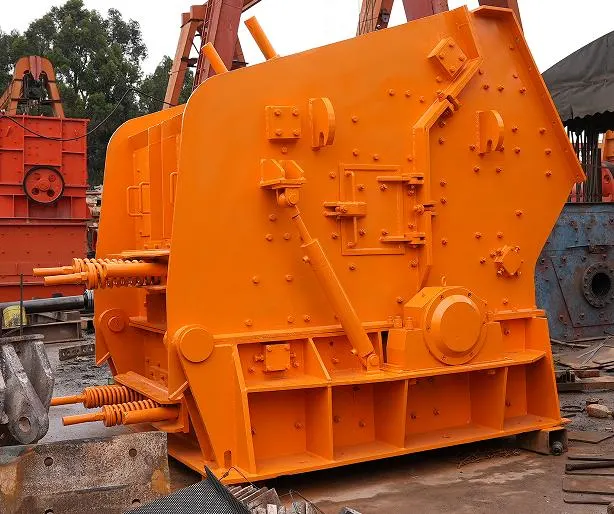

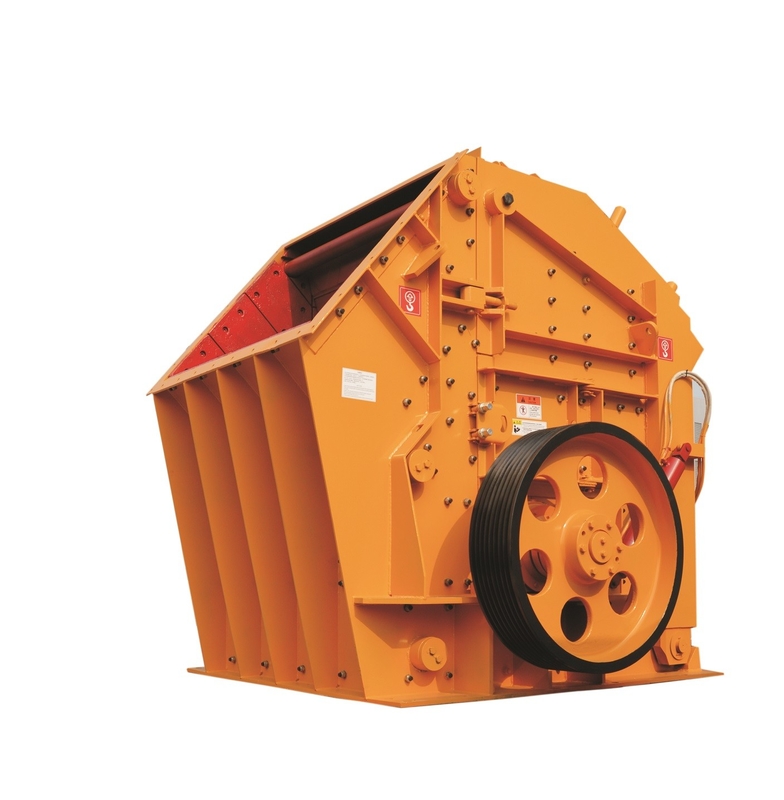

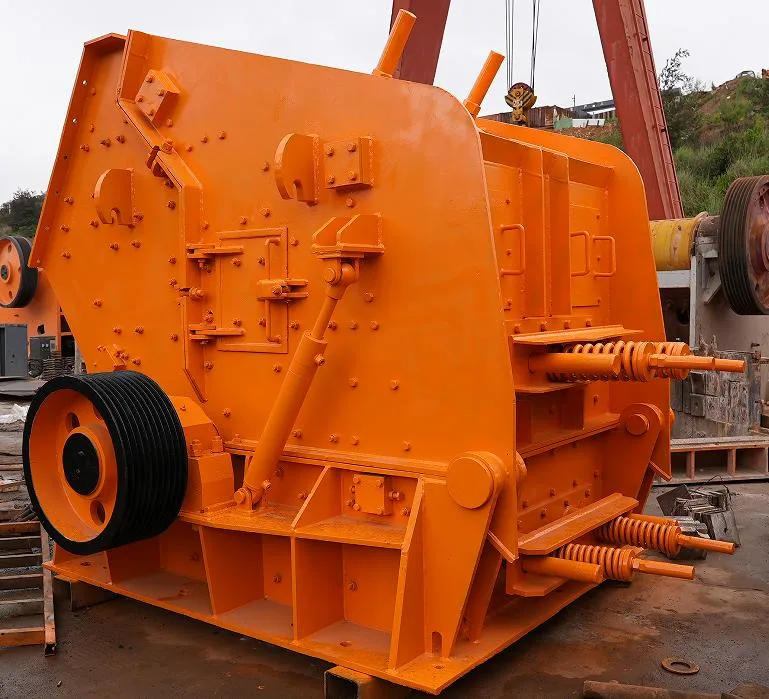

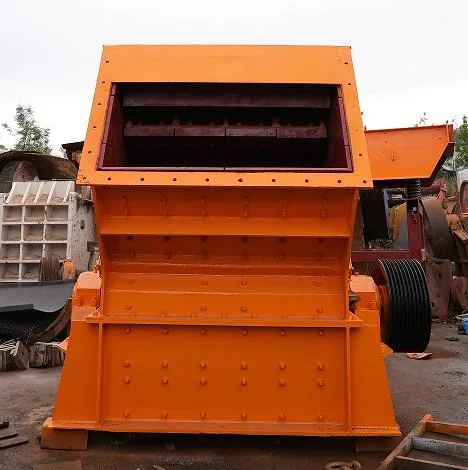

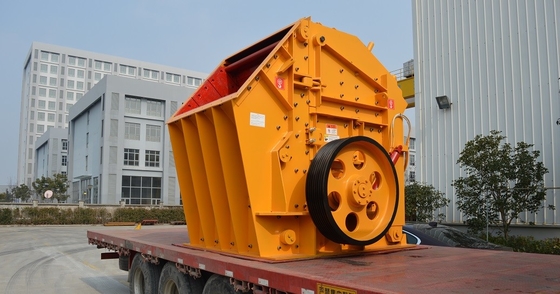

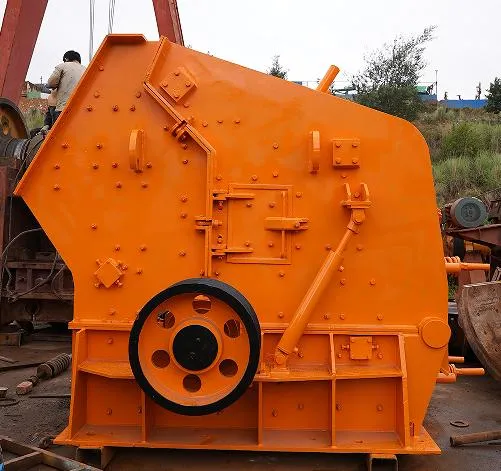

Detailed Photos



Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 0
Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 1
Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 2
Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 3



Company Profile



Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 4

Working Principle

Impact crusher crushes material by striking energy. When it works, the motor drives the rotor to rotate at a high speed, on which the blow bar is installed. As soon as the material gets into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can be adjusted to change the size and shape of the end products.

Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 5

Specification

Impact Crusher technology specification :

Model Rotor Spec (mm) Feed opening size (mm) Max Feed edge(mm) Capacity (t/h) Motor Power(kw) Weight(t) Overall Dimension(L*W*H)mm
PF-1007 1000*700 400*730 300 30-50 37-55 9.5 2400×1558×2660
PF-1010 1000*1050 400*1080 350 50-80 55-75 12.2 2400×2250×2620
PF-1210 1250*1050 400*1080 350 70-120 110-132 14.9 2690×2338×2890
PF-1214 1250*1400 400*1430 350 110-180 132-160 18.6 2690×2688×2890
PF-1315 1320*1500 860*1520 500 160-250 180-250 19.3 3096×3273×2667
PF-1320 1320*2000 860*2030 500 160-350 300-375 28 3096×3560×3185
PF-1520 1500*2000 1315*2040 700 300-500 400-450 42.8 3890×3560×3220

Benefits

  • Hard rock crushing, energy efficient;
  • Blow bar made of high-chromium iron with advantages of good wear resistance;
  • Strong structure Steady performance
  • No-board connection Easy to disassembly and maintain

Crusher Efficiency

PF impact crushers are the solution when output and productivity demands are increasingly stringent, from quarry to industrial applications and from mining to recycling. PF impact crushers feature a unique blow-bar attachment system. Combined with perfect blow-bar alignment on the crossbeam contact faces, this reduces risks of breakage and makes it possible to push the use of cast iron for blow bars beyond conventional limits. The rotor with high inertia improves crushing reduction and provides stability in the process, reducing energy consumption.



Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 6

Phosphate Rock Impact Crusher Machine Porcelain Powder Primary Rock Salt Crusher 7

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
