Product Details:
|
Application: | Ore,Mining, Quarry | Warranty: | 12 Months |
---|---|---|---|
Power(Kw): | 30Kw | Capacity: | 100-720 TPH |
Dimension(l*w*h): | 7284×3467×4092mm | Voltage: | 380V,440 V /50HZ/60hz |
Max. Feeding Sizes: | 200MM | Layer: | 3 Layers |
Type: | Vibrating Screen | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
Product Name: | China Rotary Sand Vibrator Screen In High Quality Manufacture | Color: | Iron Grey,black,as Per Customer's Demand |
Name: | Round Flour Sieving Machine Ultrasonic Vibrating Screen | Usage: | Screening, Ore Sand,separation For Aggregates |
Highlight: | Vibrating Screen Machine 720 TPH,Vibrating Screen Machine 2YK1237,Aggregate Vibrating Screen |
Main Features
1. High screening efficiency, adopts a high-speed eccentric wheel to drive the whole eccentric shaft as the source of the vibration exciter to achieve a stable vibration source and a strong vibration force.
2. Stable work, the equipment features smooth vibration and low noise by virtue of its structure design optimization, the high-speed bearings of an international well-known brand are configured, so that the equipment stability can be further improved.
3. Simple structure and convenient maintenance.

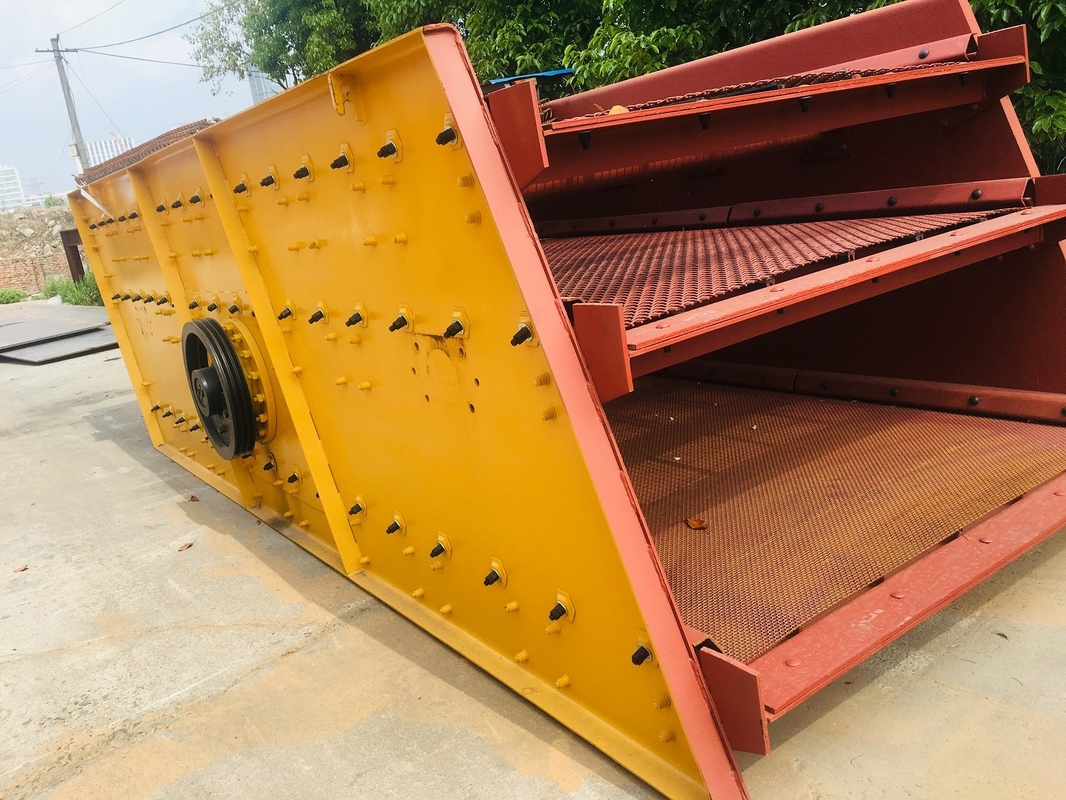

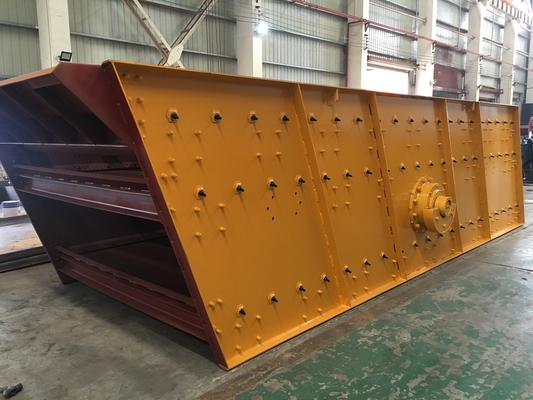

Vibrating Screen is primarily applied in mineral processing separating and stone crushing line. like coal,metallurgical, power generation, building material, water conservancy, light and chemical industries and other industries and a highly efficient screening machine to classify mineral particle and other bulk materials. Normaly 1-4 layers are most widely used and recommend. While it can customize based on clients' requirement.
Model | Layers | Spec. of Screen (mm) |
Max. Feed Size (mm) |
Capacity (t/h) |
Vibrating Frequency (hz) |
Power (kw) |
Overall Dimension (mm) |
2YK1237 | 2 | 1200X3700 | 200 | 7.5-80 | 800-970 | 15 | 4642×2250×2659 |
3YK1237 | 3 | 1200X3700 | 200 | 7.5-80 | 800-970 | 15 | 4898×2250×3133 |
2YK1548 | 2 | 1500X4800 | 400 | 50-208 | 970 | 15 | 5802×2585×3053 |
3YK1548 | 3 | 1500X4800 | 400 | 50-250 | 970 | 15 | 6046×2585×3537 |
2YK1848 | 2 | 1800X4800 | 400 | 50-260 | 970 | 18.5 | 5802×2947×3053 |
3YK1848 | 3 | 1800X4800 | 400 | 50-300 | 970 | 18.5 | 6046×2947×3538 |
2YK1860 | 2 | 1800X6000 | 400 | 50-300 | 970 | 18.5 | 7011×2947×3471 |
3YK1860 | 3 | 1800X6000 | 400 | 50-350 | 970 | 22 | 7243×2987×3955 |
4YK1860 | 4 | 1800X6000 | 400 | 50-350 | 970 | 22 | 7498×2987×4439 |
2YK2160 | 2 | 2100X6000 | 400 | 100-500 | 730 | 22 | 7076×3402×3666 |
3YK2160 | 3 | 2100X6000 | 400 | 100-500 | 730 | 30 | 7284×3467×4092 |
4YK2160 | 4 | 2100X6000 | 400 | 100-500 | 730 | 30 | 7551×3467×4582 |
2YK2460 | 2 | 2400X6000 | 400 | 150-700 | 730 | 37 | 7046×3770×3603 |
3YK2460 | 3 | 2400X6000 | 400 | 150-700 | 730 | 37 | 7289×3782×4092 |
