Product Details:
|
| Weight: | 48t | Condition: | New |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training |
| Application: | Mining,Construction,highway,quarry,ore Processing | Type: | Jaw Crusher,Mobile Crusher,basalt Crushing Line Jaw Stone Crusher Primary Quarry Jaw Crusher |
| Capacity(t/h): | 100-300 | Motor Type: | AC Motor |
| Color: | Customizable,black | Product Name: | Ore Rock Stone Crusher Machine Crusher For Sale,mobile Jaw Crusher With Belt,All Specification Stone Rock Mobile Jaw Cone Crusher Price |
| Max Feeding Size: | Depend On Model | Power(Kw): | 300 |
| Installation: | Engineer Guide,under The Engineers'guidance | Spare Parts Supply: | Can Supply Anytime |
| Keyword: | Mobile Crusher For Rock | Name: | Mobile Crushing Station,Crusher Stone Machine,90-650TPH Aggregate Mobile Stone Crusher Price |
| After Sale Service: | Life-long Service | Test&installation: | Senior Professional Engineers Assigned |
| Highlight: | PEW1100 Portable Crushing Plant,300Kw Portable Crushing Plant,Crusher Construction Machine |
||

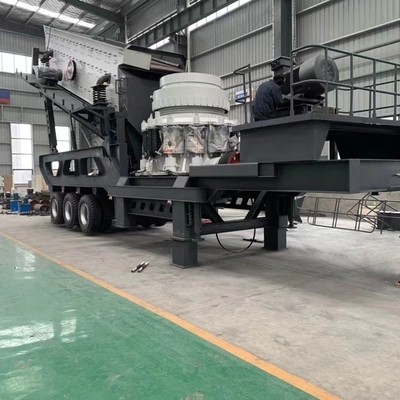

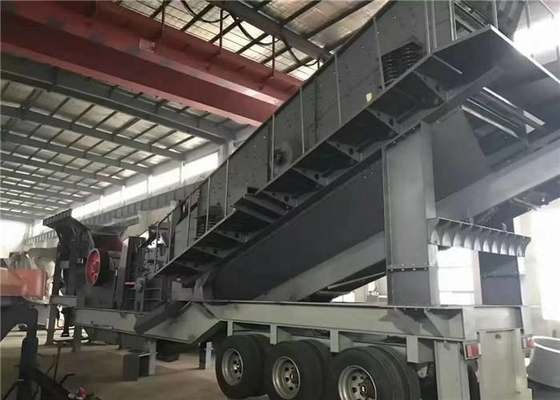

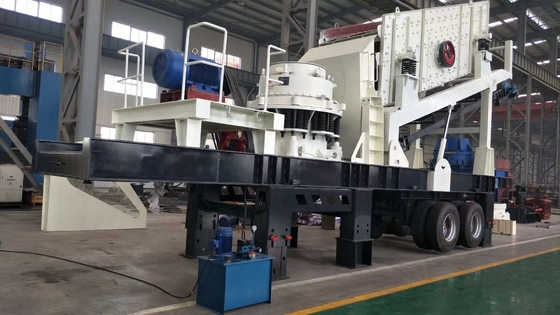

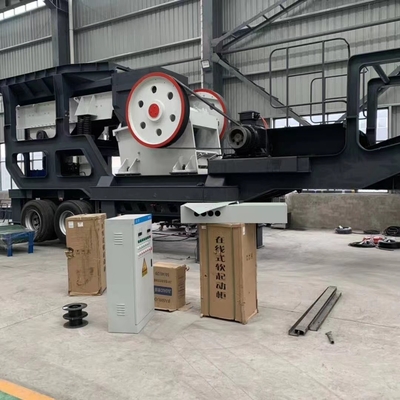

Brief introduction of mobile crushing plant
Mobile crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
Performance characteristics of mobile crushing plant
1>. Flexible configuration, single machine operation, multi-device supporting operation.
2>. The vehicle-mounted motor and control box are integrated, compact and easy to use.
3>. Vehicle mounting support, equipment venue is fast and convenient.
4>. Steering the traction shaft for easy road transport and site depth.
5>. High mobile performance and high applicability.
6>. Save costs and reduce costs.
7>. Stable performance and easy maintenance.

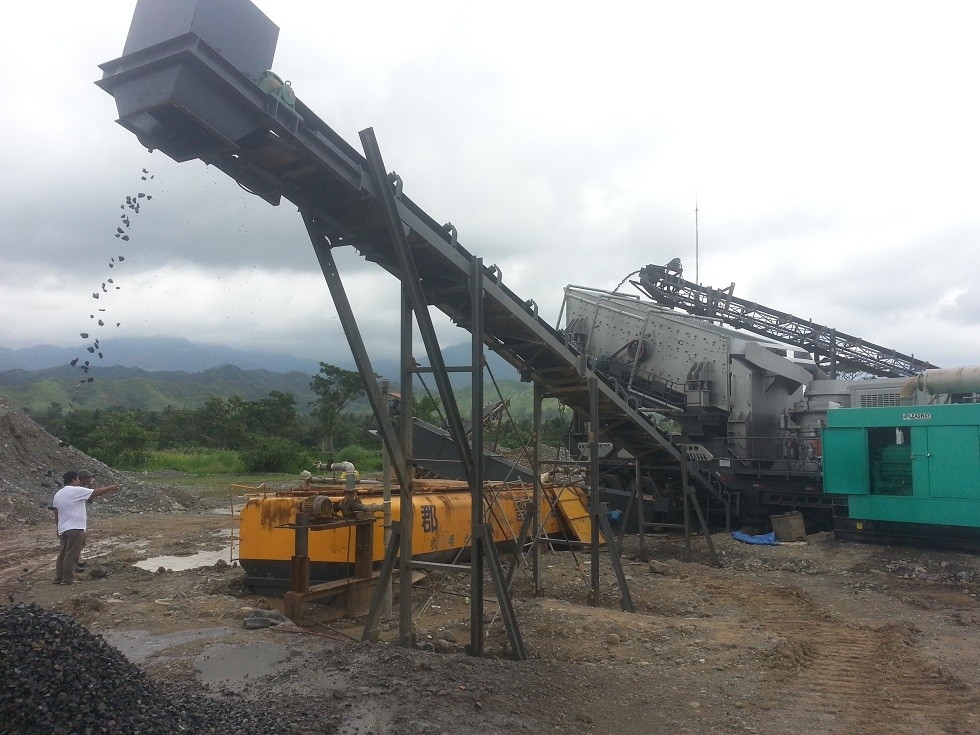

Working principle of mobile crushing plant
The main crushing equipment in the mobile crushing station is a crusher (jaw crusher, counter crusher, cone crusher, impact crusher), and the materials are uniformly transported to the crusher through the feeder. The closed circuit system is formed by the circular vibrating screen after being broken by the crusher preliminarily, which realizes the circulation crushing of the material and outputs the material according with the grain size requirement by the conveyer, so as to achieve the purpose of production.
According to the requirements of different crushing processes, it can be formed into "first crushing and second sieve" or "first sieve and then crushing". Crushing stations can be combined into coarse crushing, fine crushing and two-stage crushing and screening system according to actual demand, or they can be combined into coarse and medium crushing. Fine crushing three-stage crushing screening system, but also independent operation, has a great deal of flexibility
Technical Parameters of mobile crusher
| Model | Feeding Equipment | Crushing Equipment | Max. preparedness capacity(t/h) | Overall Dimension | Weight (t) | ||
| Model | Model | Max. Feeding Size(mm) | output (t/h) |
Transport dimension (need tear-down) | |||
| KE600-1 | TSW0936 | PE600×900II | 500 | 90-180 | 100-210 | 12150×2600×3950(mm) | 43 |
| KE750-1 | TSW1139 | PE750×1060 | 630 | 110-300 | 130-330 | 13000×2850×4400mm | 61 |
| KE760-1 | TSW1139 | PEW760 | 640 | 150-310 | 170-330 | 13000×2800×4200(mm) | 55 |
| KE860-1 | TSW1345 | PEW860 | 720 | 200-420 | 230-450 | 14600×3000×4500(mm) | 64 |
| KE1100-1 | TSW1548 | PEW1100 | 930 | 300-600 | 350-650 | 14050×2900×4000(mm) | 96 |
| KF1214II-1 | TSW0936 | PFW1214II | 500 | 110-190 | 120-210 | 12150×2600×3980(mm) | 48 |
| KF1214II-1 | TSW1139 | PFW1214II | 500 | 110-190 | 140-230 | 13000×2800×4200(mm) | 53 |
| KF1315II-1 | TSW1345 | PFW1315II | 600 | 180-280 | 190-310 | 14600×3100×4500(mm) | 61 |
| KF1415II-1 | TSW1548 | PFW1415II | 700 | 280-450 | 310-480 | 14050×3000×4000(mm) | 74 |
