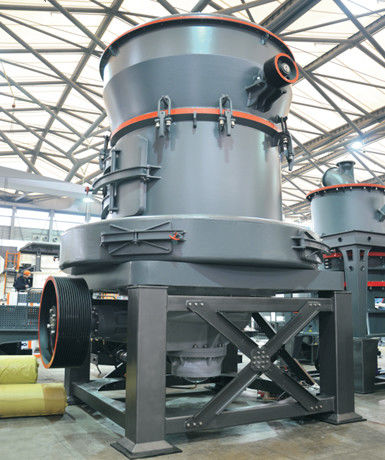

Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material

Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material
Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material
Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material

Large Image :  Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material

Product Details:
Place of Origin: Shanghai, China
Brand Name: RUNWELL
Certification: CE,ISO certificates
Model Number: MTW138
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 100000-150000
Packaging Details: Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 10 sets per month
Contact Now

Non Metallic Mineral Limestone Powder Making Machine 360×190 Bentonite Construction Material

Description
Condition: New Dimension(l*w*h): According To The Capacity
Warranty: 12 Months From Production Type: Raymond Mill
Motor Type: AC Motor Capacity(t/h): 6.5-15
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support Certification: ISO9001and CE
Color: Iron Grey Or Other Colors Application: Stone Powder Grinding
The Machines Classification: Granding Mill Machine,potassium Feldspar Raymond Mill Name: Grinding Raymond Mill,iron Ore / Coal / Slag Grinding Mill Machine And Powder Making Plant
Spare Parts Supply: All The Time Test&installation: Professional Engineer Assigned
Feeding Size: 35mm
Highlight:

Limestone Powder Making Machine Bentonite

,

Limestone Powder Making Machine 360×190

,

Mineral Grinding Mill



Dry High Quality Grinding Mill Limestone Powder Making Machine for Construction Material/Bentonite/Non Metallic Mineral



Product Description

MTW Series High Efficiency Grinding Mill
Product Introduction

MTW series grinding mill is designed by our experts, according to collected advices from customers' long-term experiences. It takes the most advanced patent technology from European and the supply the customers with outstanding performance at low costs.





Product Introduction
MTW series grinding mill is designed by our experts, according to collected advices from customers' long-term experiences. It takes the most advanced patent technology from European and the supply the customers with outstanding performance at low costs.
Grinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum Powder
Application
MTW series mill is mainly applied to the material processing of metallurgy, building materials, chemical industry, mining and other industries. It can grind limestone, calcite, marble, talcum, dolomite, bauxite, barite, petroleum coke, quartz, iron ore, phosphate rock, gypsum, graphite and other non-inflamma-ble and non-explosive mineral materials with Moh's hardness below 9 and humidity lower than 6%.
Grinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum Powder

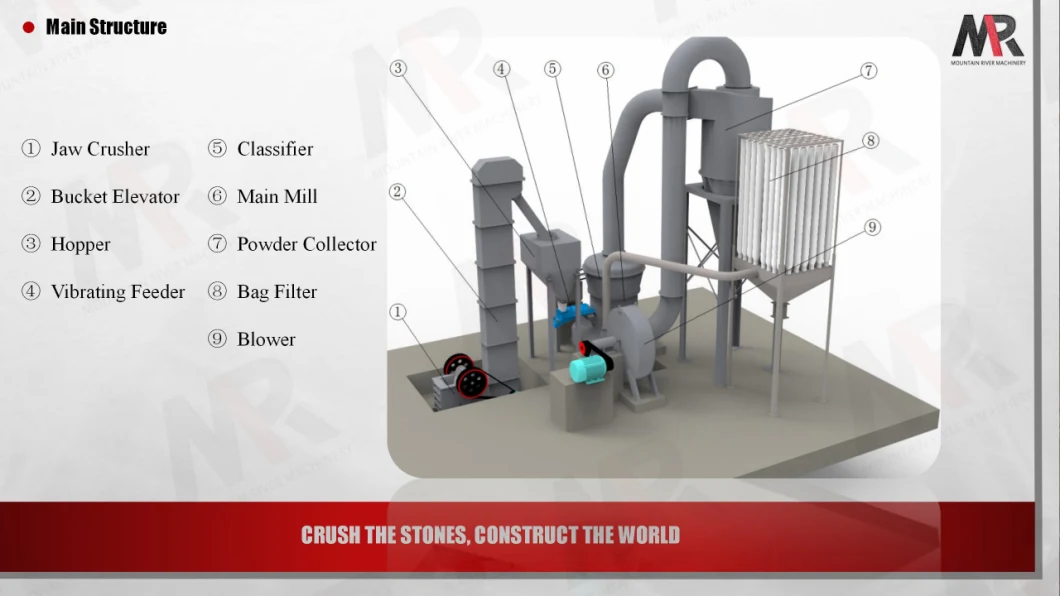

Main Structure
Grinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum Powder

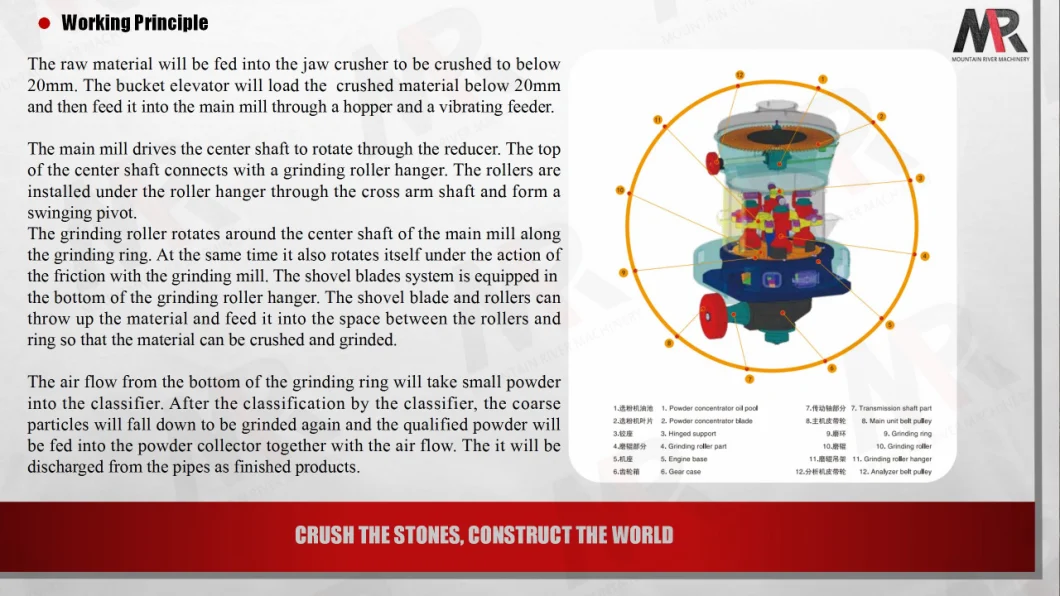

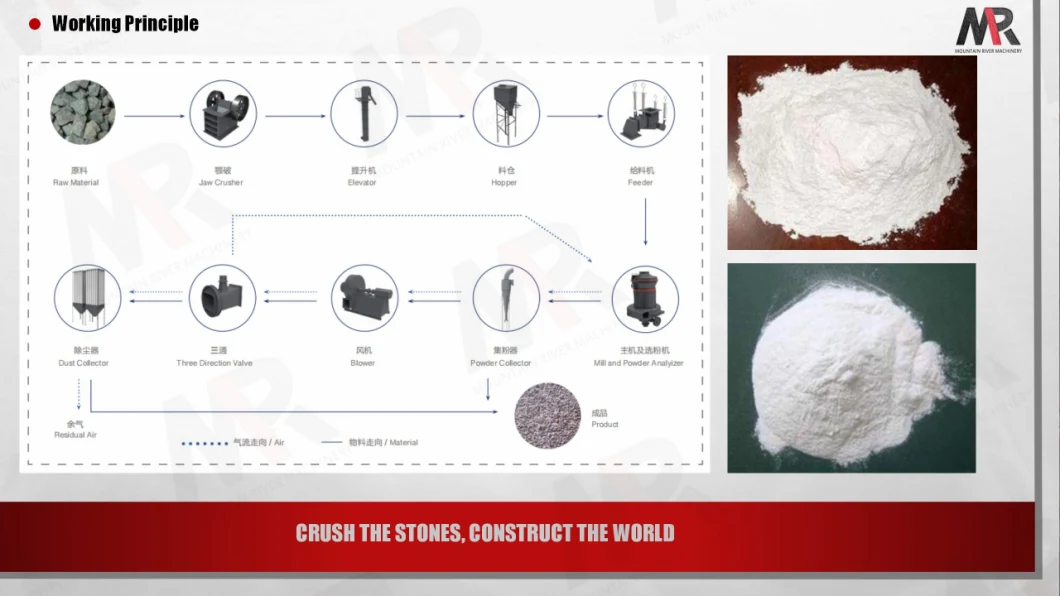

Working Principle
The raw material will be fed into the jaw crusher to be crushed to below 30mm. The bucket elevator will load the crushed material below 20mm and then feed it into the main mill through a hopper and a vibrating feeder. The main mill drives the center shaft to rotate through the reducer. The top of the center shaft connects with a grinding roller hanger. The rollers are installed under the roller hanger through the cross arm shaft and form a swinging pivot. The grinding roller rotates around the center shaft of the main mill along the grinding ring. At the same time it also rotates itself under the action of the friction with the grinding mill. The shovel blades system is equipped in the bottom of the grinding roller hanger. The shovel blade and rollers can throw up the material and feed it into the space between the rollers and ring so that the material can be crushed and grinded. The air flow from the bottom of the grinding ring will take small powder into the classifier. After the classification by the classifier, the coarse particles will fall down to be grinded again and the qualified powder will be fed into the powder collector together with the air flow. The it will be discharged from the pipes as finished products.
Grinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum PowderGrinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum Powder
Technical Parameters
Name & Model MTW110 MTW138 MTW175 MTW215
Roller Qty. 4 4 5 5
Diameter X height of roller (mm) Ф360×190 Ф460×240 Ф520×280 Ф640x 320
Inner diameter X height of ring (mm) Ф1100×190 Ф1380×240 Φ1750×280 Φ2150x 320
Main shaft speed (rpm) 120 96 75 65
Max. feed size (mm) <30<> <35<> <40<> <50<>
Output size (mm) 1.6-0.045 1.6-0.045 1.6-0.045 1.6-0.075
Capacity (t/h) 3.5-10 6.5-15 13-20 30-45
Overall dimension (mm) 8625×7933×8642 10920×9470×10227 12275×9555×9916 14730x 10860x 10341
Main unit motor Model Y280M-6 Y315M-6 Y355M2-8 Y3-355-4-8
Power (KW) 55 90 160 280
Speed (rpm) 980 990 740 740
Classifier motor Model Y132M-4 Y180M-4 Y200L-4 YVP280M-4
Power (KW) 7.5 22 37 90
Speed (rpm) 1440 1470 1470 1470
Blower motor Model Y250M-4 Y315-4 Y315L2-4 Y315L2-4
Power (KW) 55 110 200 315
Speed (rpm) 1480 1480 1480 1480
Bucket elevator Bucket Model TH210 TH315 TH315 TB315
Motor Model Y100L2-4 Y112M-4 Y112M-4 Y160M-4
Motor Power (KW) 3 3 4 11
Motor speed (rpm) 1430 1430 1440 1440
Electro-magnetic feeder Model GZ2F GZ3F GZ4F GZ5F
Power (KW) 0.15 0.2 0.45 0.65

<30<><35<><40<><50<>Packaging and Shipping
Grinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum Powder

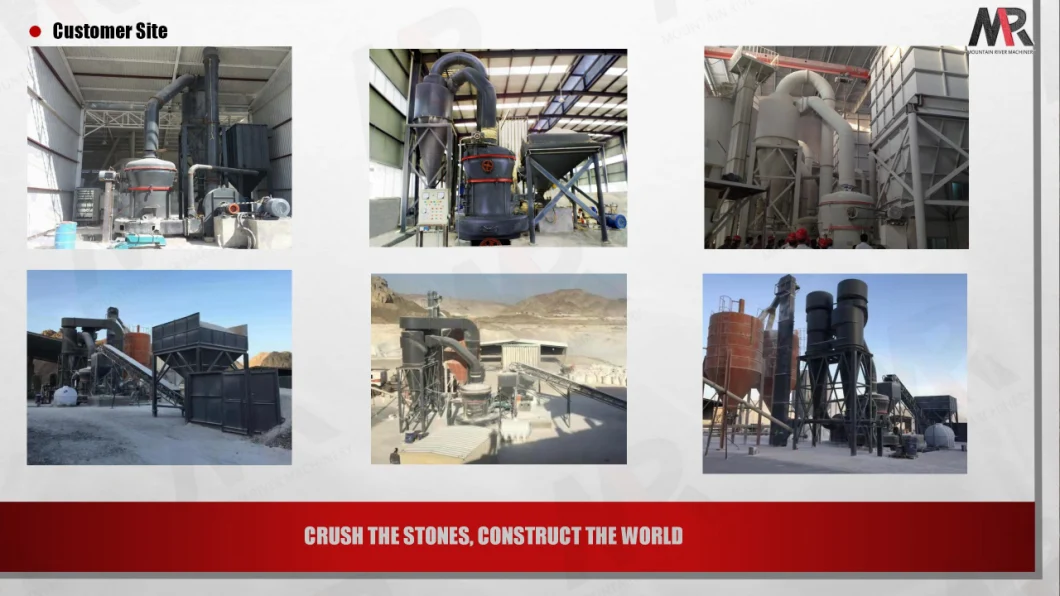

Customer Site
Grinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum Powder

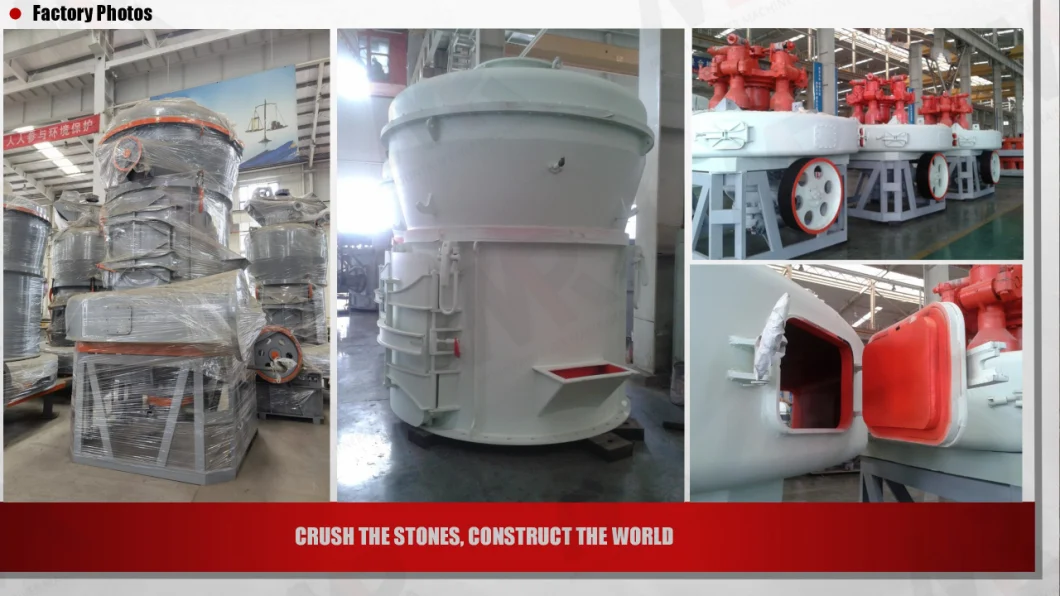

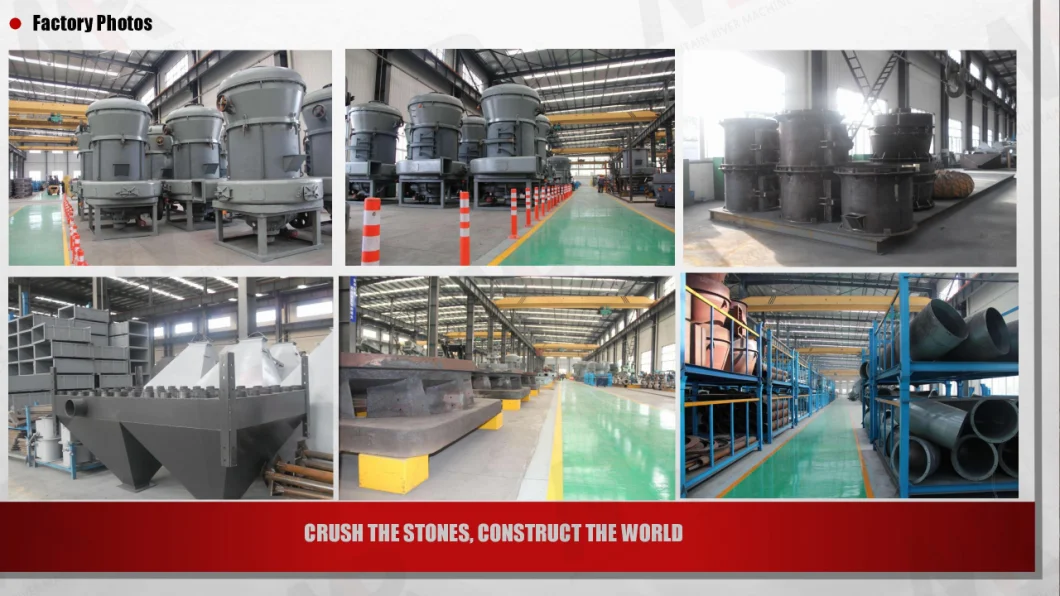

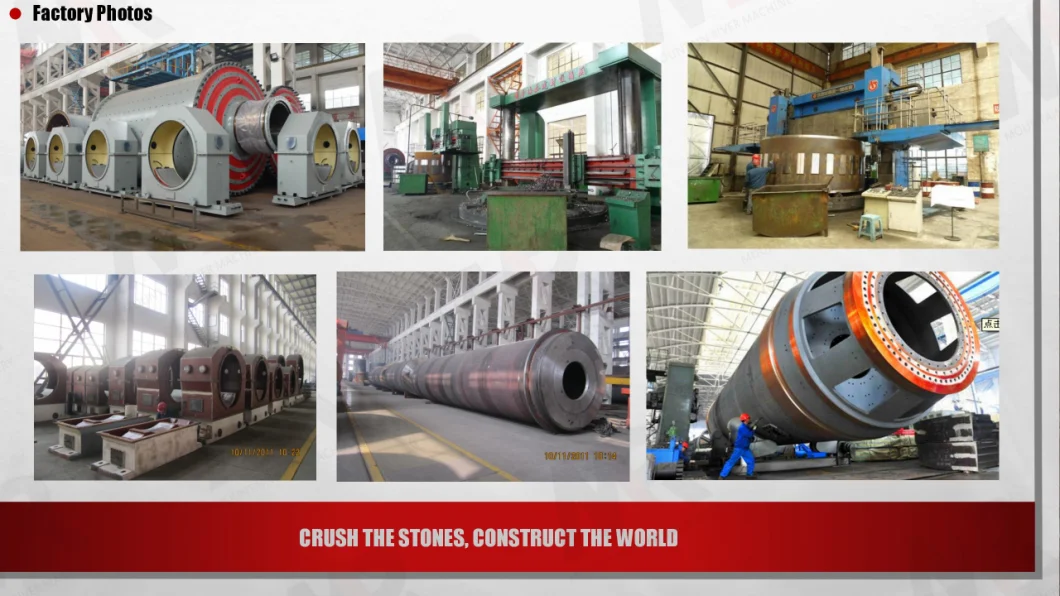

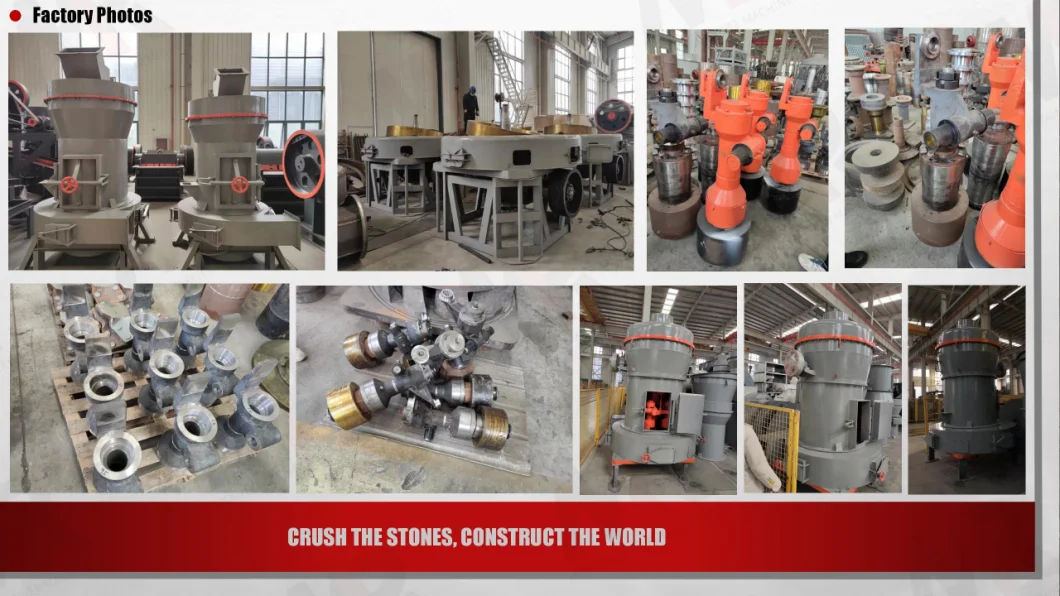

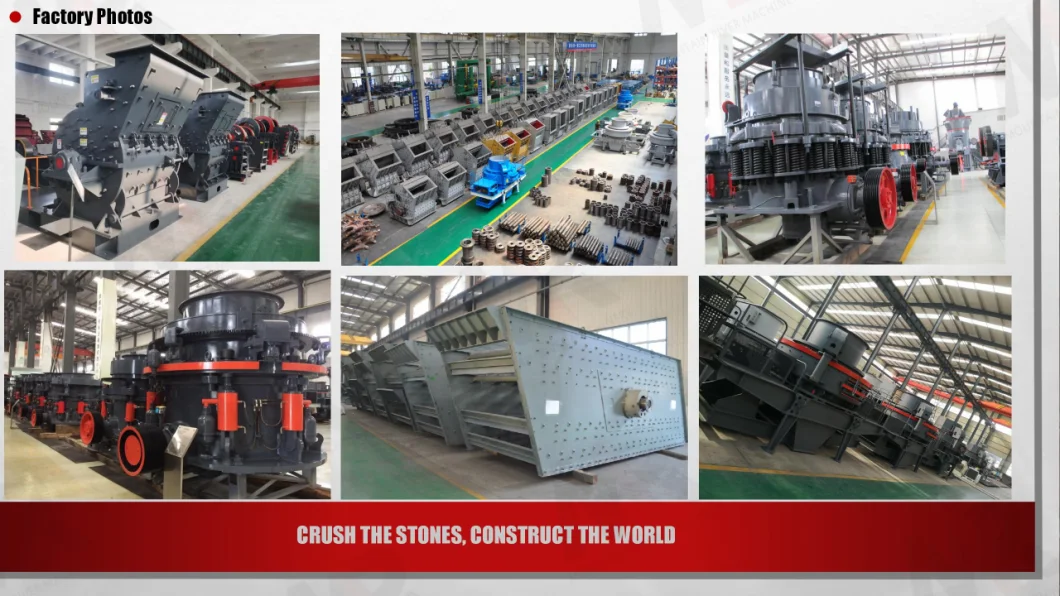

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (RUNWELL) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
Grinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum PowderGrinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum PowderGrinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum PowderGrinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum PowderGrinding Machine Grinding Mill 4 Rollers Stone Grinding Machine Raymond Mill to Produce Gypsum Powder
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
