185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher

Large Image : 185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	RUNWELL
Certification:	CE,ISO certificates
Model Number:	PC1200*1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 75000-80000
Packaging Details:	Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time:	10-20 working days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	40 sets per month

Contact Now

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher

Description

Warranty:	12 Months From Production	Capacity(t/h):	80-160tph
Max. Feeding Size:	200mm	Discharge Sizes:	Under 25mm, Adjustable
Power(Kw):	185Kw	Weight:	14.5tons
Application:	Gold Ore, Copper Ore, Quarry,limestone,coal,etc	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Certification:	CE And ISO9001 Certificates	Color:	Customizable,yellow,blue,grey
Installation:	Engineer Guide,Under Technical Guidance Overseas	Product Name:	Hot Sale Hammer Mill Crusher,hammer Mill Stone Crusher
Spare Parts Supply:	Lifelong Time Of The Stone Crushers In Site	Name:	Podwer Hammer Mill,limestone/gypsum/ Shale Hammer Crusher
Keyword:	Big Hammer Crusher,hammer Grinding Mill	The Machines Classification:	For Building Stone Production Line,Stone Crusher Machine,Small Stone Machine,hammer Mill Crusher For Sale
Highlight:	185Kw Small Sand Making Machine , 160 TPH Small Sand Making Machine , Double Rotor Hammer Crusher

High Quality Rotor Hammer Sand Make Machine Hammer Crusher, 185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher

Hammer Crusher/Stone Crusher/Sand maker/Quarry Crusher

Hammer crusher

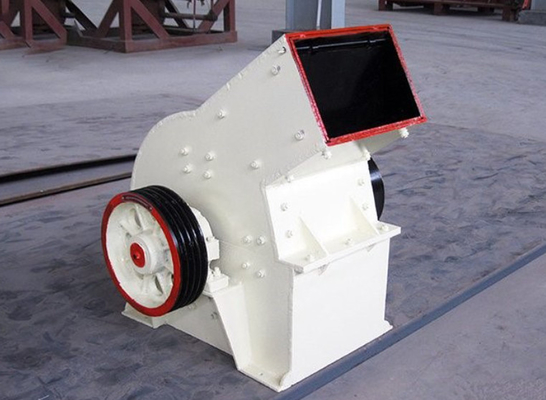

PC series of hammer crusher is widely used in metallurgy, mine, chemical, cement, coal, construction, sand making, refractory materials and ceramic industry. It is used in secondary or tertiary crushing, it is mainly suitable for crushing ores with compressive strength not exceeding 320MPa.

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher 1

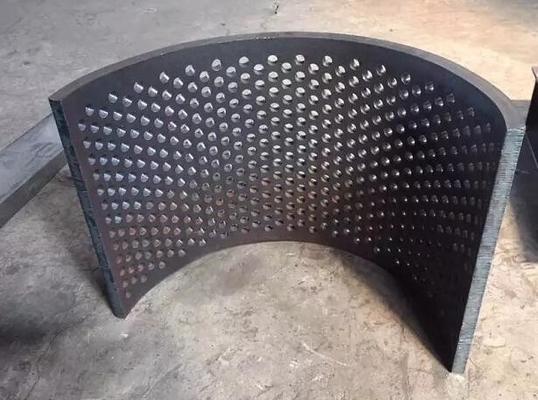

The main working part of hammer crusher is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size. There is a screening plate under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirement.

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher 2

Model	Rotor speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Power (Kw)	Weight (t)
Model	Rotor speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Power (Kw)	Weight (t)
PC400×300	1200	≤80	≤10	3-10	11	0.7
PC600×400	1000	≤110	≤15	10-15	22	1.5
PC800×600	980	≤120	≤15	20-25	55	3.7
PC1000×800	980	≤200	≤45	34-54	110	6.9
PC1000×1000	1000	≤200	≤15	40-60	132	8.5
PC1200×1000	745	≤200	≤25	75-150	160	12.5
PC1200×1200	745	≤200	≤20	80-160	185	14.3
PC1400×1400	750	≤250	≤20	120-170	280	17.2
PC1600×1600	500	≤350	≤20	220-290	500	32.4
PCH600×400	970	≤200	≤30	22-33	15	1.7
PCH600×600	980	≤200	≤30	30-60	30	2.4
PCH800×800	825	≤300	≤30	75-105	45	4.8
PCH1000×1000	740	≤300	≤30	90-150	90	7.5

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher 3

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher 4

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher 5

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher 6

185Kw 160 TPH Small Sand Making Machine Double Rotor Hammer Crusher, limestone hammer crusher, concrete crusher 7

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
