Product Details:
|
| Year: | 2015 | Working Hours: | 4399 |
|---|---|---|---|
| Working Condition: | Good Working Condition | Application: | Crusher Aggregate Equipment |
| Machine Location: | China | Color: | Original Color |
| Highlight: | Portable Used Mobile Crusher,QJ341 Used Mobile Crusher,Track Jaw Crusher |
||

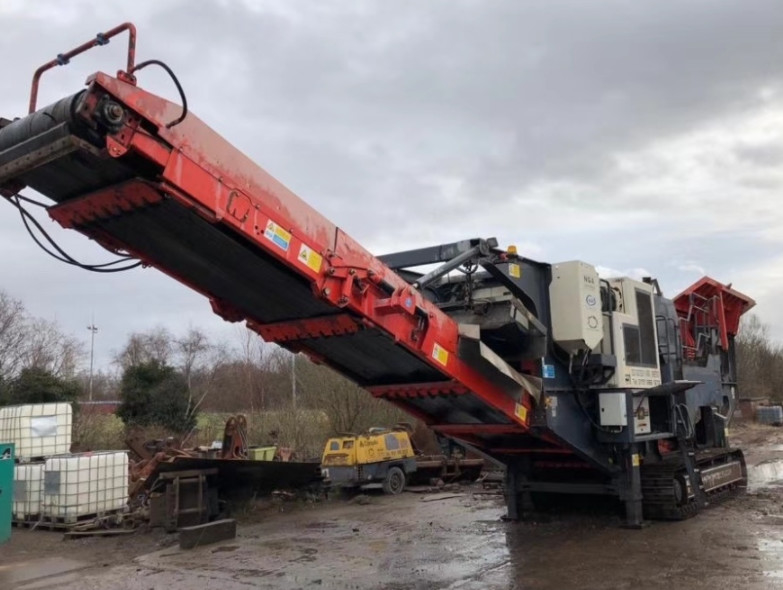

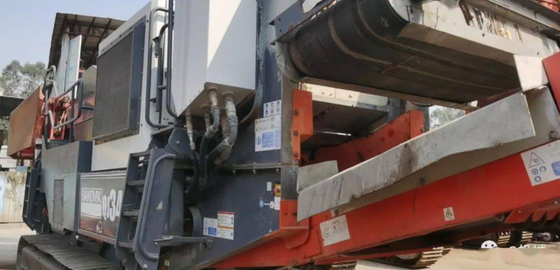

Used Mobile crusher Portable Jaw Crusher QJ341 Track Mounted Jaw Crusher
QJ341 Mobile Jaw Crusher Specification:
QJ341 mobile jaw crusher is the ideal solution for a wide range of applications. It's equipped with a C12 jaw crusher, a powerful and fuel-efficient engine, and is designed to tackle the most difficult operations.
QJ341 mobile jaw crusher features a 1,200 x 750mm (47 x 29 in.) jaw opening, built to tackle the most difficult applications with ease. It has been designed to meet the needs of the operator seeking a high performance mobile jaw crusher which is both reliable and durable. With a large feed opening and unique high crushing speed it is capable of delivering high outputs with excellent reduction ratios. In addition to this, the equipment can start under load, which enables maximum uptime and productivity.
The powerful jaw crusher is capable of a variety of tasks with its large under-belt clearances, and is equipped with a hydraulic raise and lower facility on the main conveyor as standard. There are a number of features to minimize operator intervention whilst maximizing their safety, such as the self-locking hopper and jaw level sensor which controls feed rate with minimal input from the user.
Other models within the QJ range of jaws include QJ241 and QJ341+.
| Technical data | |
|---|---|
| Equipment | Single toggle C12 jaw crusher |
| Feed opening | 1,200 x 750 mm (47 in. x 29 in.) |
| Maximum feed size | 650 mm (26 in.) |
| Capacity (up to) | 400 mtph (440 stph) |
| Engine | C9.3B 280 kW (375 hp) |
| C9 261 kW (350 hp) | |
| Transport length | 14.15 m (46 ft 4 in.) |
| Transport width | 2.86 m (9 ft 4 in.) |
| Transport height | 3.43 m (11 ft 3 in.) |
| Weight | 50,147 kg (110,555 lb) |
Please note all weights and dimensions are for standard units only.
Former Names: Extec C-12, Extec C-12+, QJ340 Jaw Crusher
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
