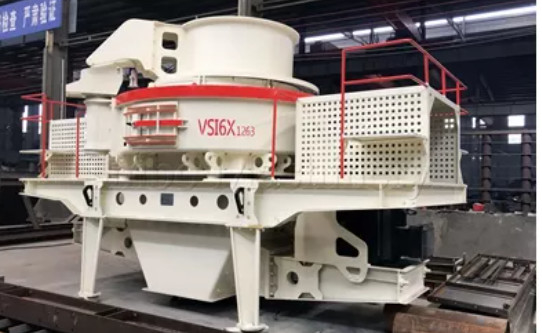

Vertical Shaft Sand Block Making Machines VSI Crushing Plants For Construction Aggregate

Application of VSI/VSI5X
Quarry, sand concrete, dry mortar, manufactured sand, power plant desulfurization, quartz sand, etc.

Shaft impact crusher

Shaft impact crusher applies to crush and shape middle and high hard materials such as ore, cement, refractory stuffs, grogs,

corundum, glass material, stone, and mine slag. It works better for crushing silicon carbide, corundum, and sintered bauxite

.

Introduction of VSI
The VSl series impact crushers are vertical shaft impact crushers designed by introducing the German technology, able to be used for sand-making and shaping of the stone materials different in hardness. The VSl series impact crushers adopt high-speed closed impellers to speed up materials, with stone against iron or stone against stone , central feeding adjustment and waterfall feeding available to configure according to users' conditions to meet the different process requirements, such as material fine and super-fine crushing, machine-made sand processing and aggregate shaping.

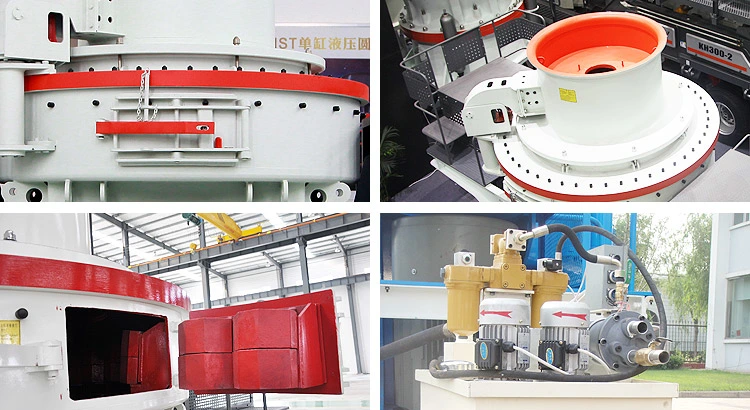

                                               Main Structure&Features of VSI:

1. The crushing cavity internal items can be changed or repaired easily and fast, because of adopting hydraulic drive cover device.
2. With the unique feeding crusher structure, it is convenient to realize the "stone crushing stone "and "stone crushing Iron", can crush and shape stones.
3.High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure.

Introduction of VSI5X

The VSI5X series impact crushers are a new generation of high-efficiency vertical shaft impact crushers developed and designed on the basis of the previous generation of VSI series impact crushers, boasting a number of independent patents, as well as higher production efficiency and lower use cost . It have been he most widely used abroad.



Working principle of shaft impact crusher

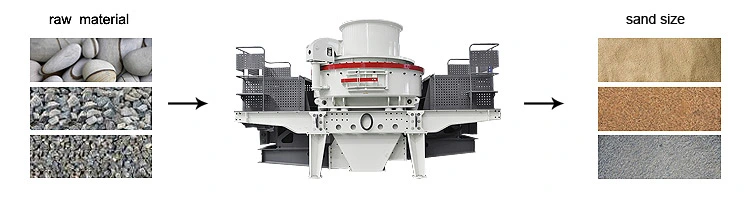

The raw material falls through upper inlet into rotating impeller. Due to centrifugal force, the material will collide with surrounding ones and break. The final product will come out from underneath outlet. The screen will control size of final material.

High quality vertical shaft impact crusher Features

1. The structure is simple, and the operating cost is low.

2. High efficiency, and low consumption.

3. high quality vertical shaft impact crusher is slightly influenced by the humidity of material, and the max humidity is 8%.

4. high quality vertical shaft impact crusher is more suitable for crushing mid-hardness materials and high-hardness materials.

5. Its product is cubic, and the density of piling up is high and the iron pollution is low.

6. The working noise is less than 75 decibels and dust pollution is little

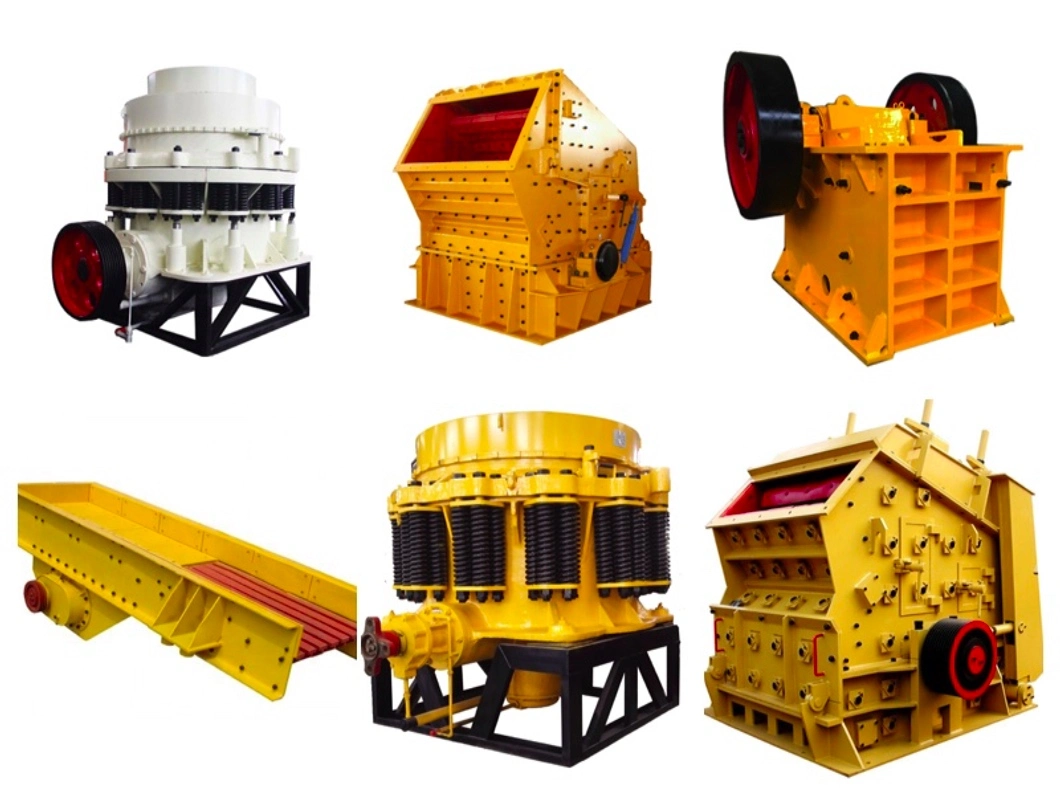

More our products

Technical Parameters

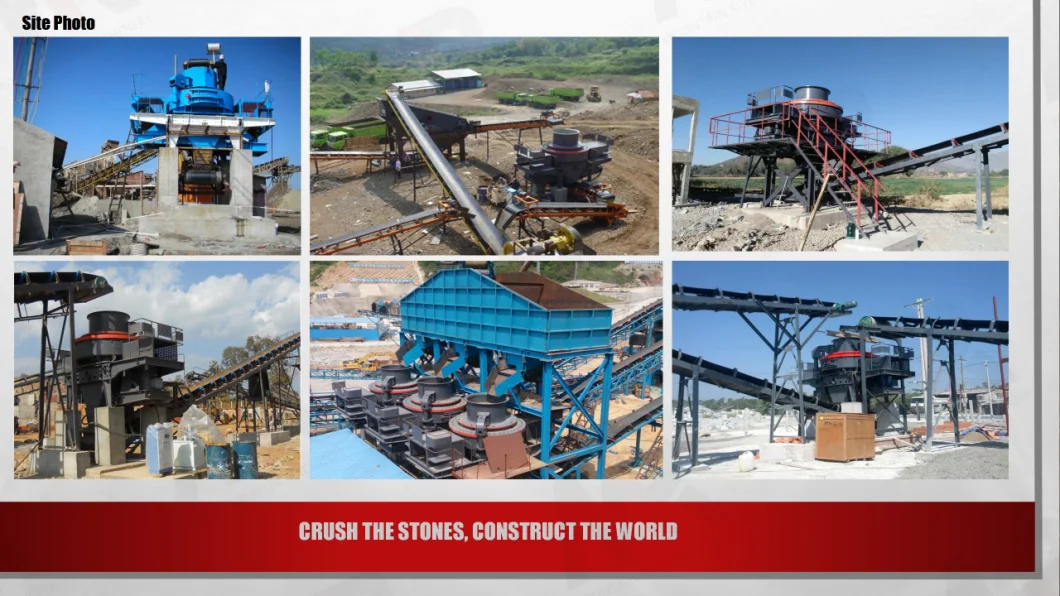

Site Photo
