Product Details:
|
| Condition: | New | Capacity(t/h): | 30-800 Tph |
|---|---|---|---|
| Power Type: | Electric | Warranty: | 12 Months |
| Application: | Mining,Coal,Quarry | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support |
| Weight: | 4.5t | Dimension(l*w*h): | 4400*2050*1660mm |
| Power(w): | 11-37kw | Material: | Carbon Steel,Q235 |
| Color: | Iron Grey,Yellow,customised | Product Name: | Large Capacity Coal Electromagnetic Vibrating Feeder |
| Voltage: | 220V/380V/415V | Installation: | Engineer's Guide,as Professional Engineers Assigned |
| Max Feeding Size: | 500-750mm | Frequency: | 50HZ Or 60HZ |
| Keyword: | Electromagnetic Vibrating Feeder | ||
| Highlight: | Carbon Steel Vibrating Pan Feeder,Vibrating Pan Feeder ZSW420*110,Vibro Grizzly Feeder |
||
Vibrating Feeder Working Principle:

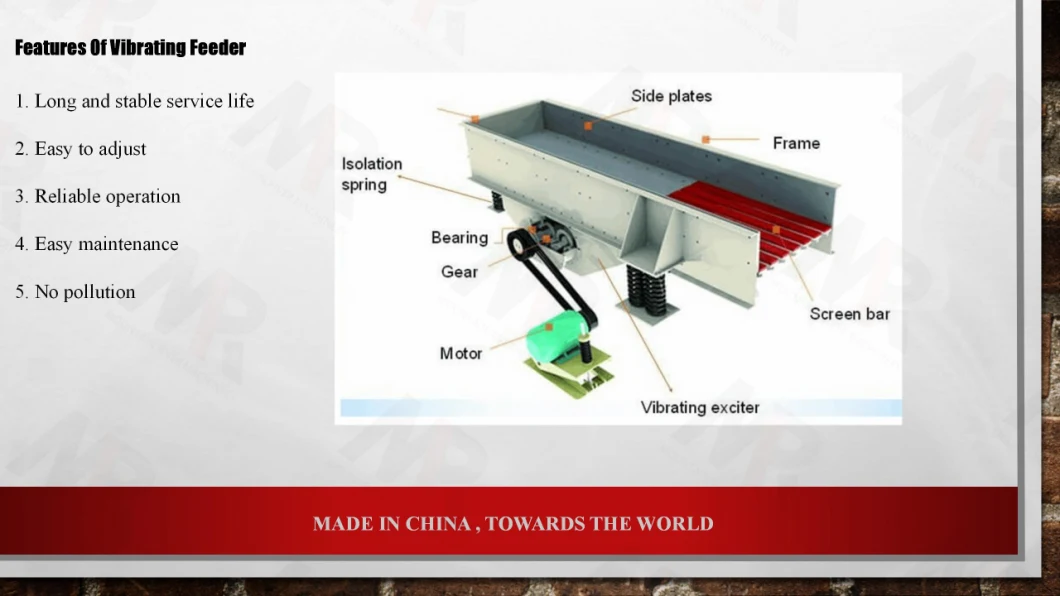

Our vibrating feeder consists of feeding trough, vibrator, spring, motor and so on. The vibration source of material feeding is vibrator, which is made up of two eccentric shafts (active and passive) and gear pair. The main shaft is driven by the motor through V-belt, and the passive shaft starts rotating through the gear meshing of the active shaft. Then the counter-rotating shafts force the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, completing material feeding and separating.
