Product Details:
|
| Power Type: | Electric Drive, Vibration Motors 2 Sets | Warranty: | 12 Months From Production Time Or 15 Months From Leave Factory |
|---|---|---|---|
| Max Feeding Size: | 450mm | Power(Kw): | 1.5Kw*2 |
| Capacity(t/h): | 30-80tph | Model: | GZT-0724 |
| Application: | Mining,Coal,Quarry, Cement, Under Silo | After-sales Service Provided: | Engineers Video Guide Service Machinery Overseas,Video Technical Support |
| Weight: | 2.5t | Voltage: | 220V/380V/415V |
| Installation: | Engineer's Guide | Keyword: | Grizzly Feeder,Electromagnetic Vibrating Feeder |
| Highlight: | 80 TPH Vibrating Feeder Machine,Vibrating Feeder Machine 1000mm,Electric Vibrating Feeder GZT 0724 |
||

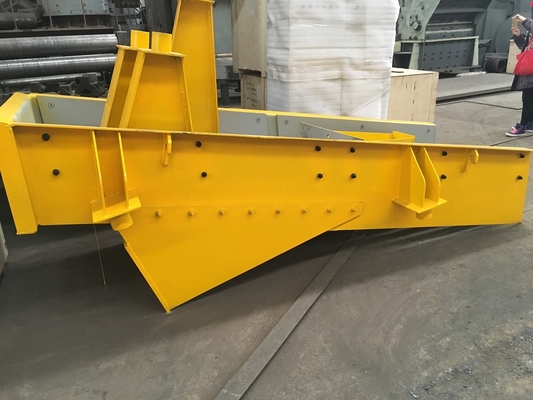

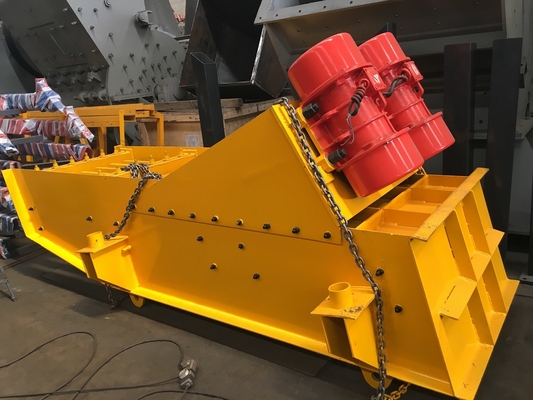

GTZ Series Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed material into the primary crusher homogeneously, meanwhile because of the bar-shaped screen, it can screen away soil contained in the raw material, increase the capacity of the primary crushing. It is suitable for feeding material into the primary crusher in hydropower field, building material and mining.
Input Size:0mm--1000mm
Capacity:30-600TPH
Type:Necessary Auxiliary Equipment
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy
The vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.
1.Smooth vibration
2.Special bar to prevent the block of raw material
3.The distance between bars is adjustable
4.Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.
5.Stable performance &Reliable operation.
6.Easy to adjust &Easy to maintain
7.Long span life &No pollution with closed body
8.Good performance-conditioning, it can be used in any severe environments.
Technical Data:
| Model | Max Feed Size(mm) | Capacity (t/h) | Motor Power (kw) | Installation Slope(°) | Double Amplitude (mm) | Overall Dimensions(mm) | Weight (kg) |
| GZT-0724 | 450 | 30-80 | 2*1.5 | 10 | 4-6 | 2481*1130*990 | 2422 |
| GZT-0932 | 560 | 80-150 | 2*2.2 | 10 | 4-8 | 3298*1512*1195 | 3203 |
| GZT-0940 | 560 | 80-180 | 2*3.7 | 10 | 4-8 | 4100*1818*1134 | 3700 |
| GZT-1148 | 600 | 150-300 | 2*5.5 | 10 | 4-8 | 4926*1676*1475 | 5060 |
| GZT1256 | 800 | 180-400 | 2*7.5 | 10 | 4-8 | 5704*1840*1492 | 6385 |
| GZT-1560 | 1000 | 400-600 | 2*13 | 10 | 4-8 | 6110*2440*1560 | 8900 |
| Model | Max Feed Size(mm) | Capacity (t/h) | Motor Power (L*W*H) (kw) | Overall Dimensions (mm) | Weight (kg) | Size of Funnel(mm) |
| ZSW380*96 | 500 | 96-160 | 11 | 3882*2224* 2121 | 4082 | 3800*960 |
| ZSW420*110 | 550 | 120-280 | 15 | 4260*2400* 2150 | 5204 | 4900*1100 |
| ZSW490*110 | 580 | 120-300 | 15 | 4957*2400* 2150 | 5320 | 4900*1100 |
| ZSW590*110 | 600 | 200-350 | 22 | 6000*2500* 2150 | 6130 | 5900*1100 |
| ZSW600*130 | 750 | 400-560 | 22 | 6082*2580* 2083 | 7800 | 6000*1300 |
| ZSW600*150 | 1000 | 450-800 | 30 | 6627*2350* 3068 | 12110 | 6000*1500 |
| ZSW600*200 | 1000 | 800-1200 | 37 | 6436*3853* 3014 | 18650 | 6000*2000 |
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
