Product Details:
|
| Motor Type: | AC Motor,380V,50Hz,440V,60hz | Capacity(t/h): | 175-790TPH |
|---|---|---|---|
| Max Feeding Size: | 133-330MM | Discharge:: | 20-60MM For Standard Type, 13-38MM For Short Head Type |
| Power(Kw): | 400KW | Transport Package: | FR Container, In Bulk; Export Packing Standard |
| Warranty: | 12 Months From Production Time Or 18 Months From Leave Factory | After-sales Service: | Engineer Assigned At Client's Site |
| Delivery Time: | 10-20 Days | Type: | Cone Crusher |
| Application: | Mining,construction,Quarry,etc,ore | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | Certification: | CE & ISO |
| Product Name: | Secondary Stone Crushing Machine Propel Sp Cone Crusher,High-efficiency Stone Cone Crusher With Good Price | Installation: | Under Engineer's Guide,under Our Technical Guidance |
| Spare Parts Supply: | Lifelong Time | Quality: | High Leavel,High Reputation,CE |
| The Machines Classification: | Quarry,Building Stone Production Line | Model: | HP200,HP300,HP400,HP500,HP800 |
The cone crusher not only improves the production capacity and crushing efficiency, but also widens the applying area, from limestone to basalt, from stone production to various ore crushing. It has a second-to-non crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher .

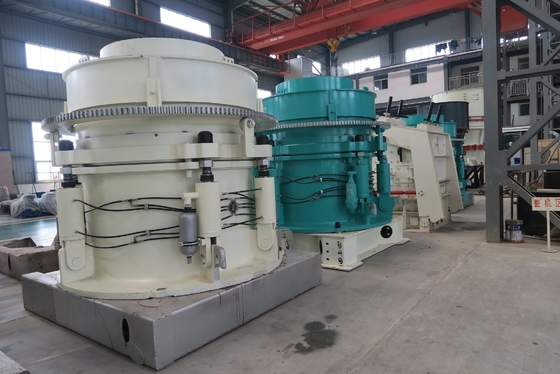

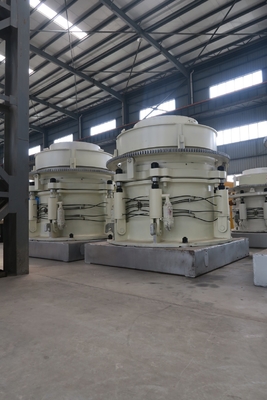

HP MULTI-CYLINDER HYDRAULIC CONE CRUSHER
HP multi-cylinder hydraulic cone crusher is suitable for crushing above medium hardness of various minerals androcks. Its high speed, high crushing capacity and unique patented design make the final products with a very high-quality cube type, and the characteristics of easy tomaintain ensure excellent high stability of the operation.It is the world-renowned, and the latest generation ofhydraulic cone crusher in the mining construction industry compared to the spring cone crusher.
Applicable Materials:
Iron, ore, pebbles, non-ferrous metal ore, granite, basalt, limestone, quartz and sand stone.Working Principle
Hydraulic cone crusher working principle :When HP series multi-cylinder hydraulic cone crusher works, the motor drives the outer copper rotate through V-belt, host pulley, drive shaft, a small bevel gear, a large bevel gear. The outer copper forces crushing cone shaft axis of the outer copper to make rotating swing, making crushing surface.
Sometimes near and sometimes leave the concave surface, so that the material is impacted, squeezed and bent in the ringlike crushing chamber consist of fixed cone and movable cone. After repeated squeezed, shocked, and bent, the material crushing to the required particle size is discharged from the lower part.
The particular crushing chamber adopting principle of intergranular lamination and matching rotor speed obviously improves the crushing ratio and productivity, largely increase the amount of cubic final product. Adopting hydraulic protection and hydraulic cavity clearing, high degree of automation, the hydraulic system can be up top and discharge automatically when the crusher is blocked instantly or over-iron, which eliminates trouble of halting to clear the material manually. It makes the maintenance more easier, cost lower. The hydraulic adjustment and oil lubrication make the crusher more steady and reliable. It also adopts labyrinth sealing mode, which avoids oil mixing with water easily.
|
Model
|
Cavity
|
Standard Type
|
Short Type
|
Power
|
Capacity (t/h)
|
||
|
Feeding Size (mm)
|
Min Discharging Size (mm)
|
Feeding Size (mm)
|
Min Discharging Size (mm)
|
(kw)
|
|||
|
HP200
|
Super coarse
|
|
|
|
|
132-200
|
90-250
|
|
Coarse
|
185
|
19
|
76
|
10
|
|||
|
Medium
|
125
|
17
|
54
|
6
|
|||
|
Fine
|
95
|
13
|
23
|
6
|
|||
|
Super Fine
|
|
|
10
|
5
|
|||
|
HP300
|
Super coarse
|
230
|
25
|
|
|
180-250
|
115-440
|
|
Coarse
|
210
|
20
|
75
|
10
|
|||
|
Medium
|
150
|
15
|
50
|
8
|
|||
|
Fine
|
105
|
10
|
20
|
6
|
|||
|
Super Fine
|
|
|
20
|
6
|
|||
|
HP400
|
Super coarse
|
295
|
30
|
|
|
280-355
|
140-630
|
|
Coarse
|
250
|
25
|
90
|
10
|
|||
|
Medium
|
195
|
20
|
50
|
8
|
|||
|
Fine
|
110
|
14
|
40
|
6
|
|||
|
Super Fine
|
|
|
30
|
6
|
|||
|
HP500
|
Super coarse
|
330
|
30
|
|
|
355-450
|
175-790
|
|
Coarse
|
285
|
25
|
90
|
13
|
|||
|
Medium
|
200
|
20
|
55
|
10
|
|||
|
Fine
|
133
|
16
|
40
|
8
|
|||
|
Super Fine
|
|
|
35
|
6
|
|||
|
HP800
|
Super coarse
|
353
|
32
|
|
|
550-630
|
260-1200
|
|
Coarse
|
297
|
32
|
155
|
13
|
|||
|
Medium
|
267
|
25
|
92
|
10
|
|||
|
Fine
|
219
|
16
|
33
|
6
|
|||
|
Super Fine
|
|
|
|
|
|||
Q: Are you a mining machinery manufacturer?
A: Yes, we are an OEM manufacturer of equipment for processing stones, we warmly welcome clients to visit our factory at any time.
Q: If I want to set up a complete quarry, can you help us to build it?
A: Yes, we can not only supply crushers but also provide EPCM services as well as Turn-key projects for our customers. We have a professional technical team.
Q: If I want a suitable proposal for a quarry plant, what kind of information should I provide to your company?
A: Below information is kindly needed.
1. What is the raw material? limestone, granite, basalt, or other similar stones?
2. How much capacity do you prefer to get? 40-60TPH? 100-150TPH or 250-300TPH?
3. What's the size of your stone before being crushed? How many inches or mm?
4. What are your requirements for the final product size? How many inches or mm? 0-10-20-30mm? 0-5-12-19-25mm? Or others?
5. Which type do you need? Stationary type or Mobile type?
Q: How long is the warranty of your machine? Does your company supply the spare parts?
A: The warranty period is one year. we will supply the spare parts for you at any time.
Q: How about the installation?
A: If customers request, skilled general technician(s) to supervise the assembly, installation, commissioning, and train the local operator will be supplied after the seller confirms the preparation for installation is ready in the buyer's site. Buyers should take the charges for technicians and pay them salaries.
Q: What is the payment method?
A: T/T or L/C.
