Product Details:
|
| Condition: | New | Capacity(t/h): | 400-800 |
|---|---|---|---|
| Power Type: | Electric | Warranty: | 12 Months |
| Application: | Mining,Coal,Quarry, Cement | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| Weight: | 7.8t | Power(Kw): | 30 |
| Color: | Iron Grey,according To Your Wishes.,Yellow | Product Name: | Large Capacity Electromagnetic Vibrating Feeder,High Efficiency Tiny Electromagnetic Vibrating Feeder |
| Voltage: | 220V/380V/415V | Installation: | Engineer's Guide |
| Max Feeding Size: | 800mm | Keyword: | Grizzly Feeder,Electromagnetic Vibrating Feeder |
| Highlight: | 800 TPH Jaw Crusher Grizzly Feeder,Jaw Crusher Grizzly Feeder ZSW6000X1300,Vibrating Grizzly Screen Feeder |
||
ZSW Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen the fine material and make the crusher more powerful.
Input Size:0mm--1000mm
Capacity:96-1200THP
Type:Necessary Auxiliary Equipment
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

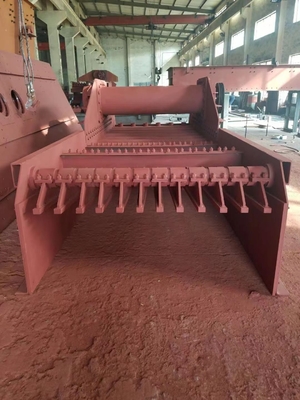

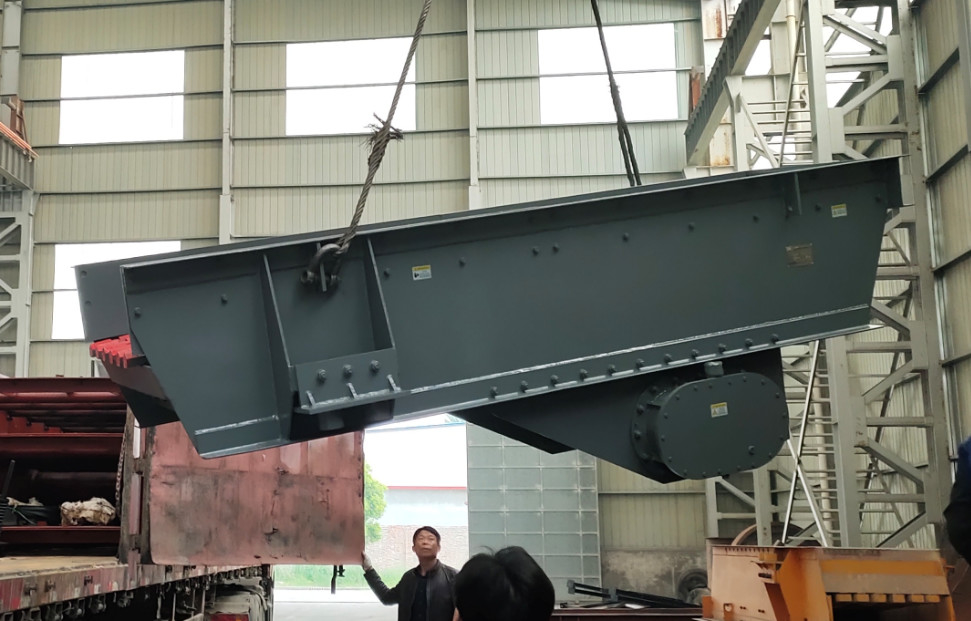

The sand making mining vibrating grizzly feeder is mainly used to feed material into primary crusher evenly and continuously. Meanwhile, it can screen material and strengthen the capacity of the crusher.It adopts double eccentric shaft vibration exciter structural characteristics to ensure that equipment can withstand the impact of falling bulk materials and increase feeding capacity.In the production process it can be massive and granular to sent materials from storage silos in uniform, regular and continuously way to the affected device,thus preventing the affected device due to uneven feed produced crash phenomenon,which extended equipment life.
1.Smooth vibration
2.Special bar to prevent the block of raw material
3.The distance between bars is adjustable
4.Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.
5.Stable performance &Reliable operation.
6.Easy to adjust &Easy to maintain
7.Long span life &No pollution with closed body
8.Good performance-conditioning, it can be used in any severe environments.
| Model | Max Feed Size(mm) | Capacity (t/h) | Motor Power (L*W*H) (kw) | Overall Dimensions (mm) | Weight (kg) | Size of Funnel(mm) |
| ZSW380*96 | 500 | 96-160 | 11 | 3882*2224* 2121 | 4082 | 3800*960 |
| ZSW420*110 | 550 | 120-280 | 15 | 4260*2400* 2150 | 5204 | 4900*1100 |
| ZSW490*110 | 580 | 120-300 | 15 | 4957*2400* 2150 | 5320 | 4900*1100 |
| ZSW590*110 | 600 | 200-350 | 22 | 6000*2500* 2150 | 6130 | 5900*1100 |
| ZSW600*130 | 750 | 400-560 | 22 | 6082*2580* 2083 | 7800 | 6000*1300 |
| ZSW600*150 | 1000 | 450-800 | 30 | 6627*2350* 3068 | 12110 | 6000*1500 |
| ZSW600*200 | 1000 | 800-1200 | 37 | 6436*3853* 3014 | 18650 | 6000*2000 |
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
