Product Details:
|
| Type: | Cone Crusher | Max Feeding Size: | 41mm |
|---|---|---|---|
| Capacity(t/h): | 27-90 TPH | Discharge Range: | 3-13MM |
| Power(Kw): | 75KW | Condition: | New |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support |
| Certification: | CE& ISO Certificates | Color: | Iron Grey,white, Yellow Blue Red,grey Or Customized |
| Installation: | Under Our Technical Guidance,guided By Our Senior Engineer | Spare Parts Supply: | Lifelong Time Of The Crushers |

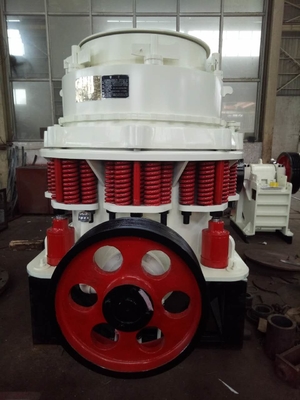

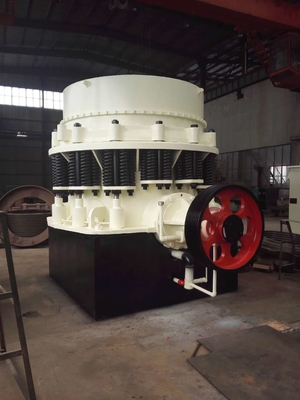

Symons cone crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. Also symons cone crusher uses the compensating lubricating grease sealing, it can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system of cone crusher uses several spring sets, so the matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably. The cone crusher has standard type and short head type, the standard type is suitable to medium size and the short head type for medium and fine crushing.
Symons cone crusher features :
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.
Main Technical Parameters of PSG Series Cone Crusher
| Model | Cavity | Cone Large End Diameter(mm) | Adjustment Range of Discharging Opening(mm) |
Feeding Size of Min. Discharging O pening (mm) |
Max. F eeding Size(mm) |
Capacity (t/h) |
Electric Motor Power (kw) |
Overall Dmension(mm) |
| PSG -0910 | Standard fine type | 914(3') | 9-22 | 102 | 85 | 45-91 | 75 | 2656*1636*2241 |
| PSG -0917 | Standard coarse type | 13-38 | 175 | 150 | 59-163 | |||
| PSG -0918 | Standard super coarse type | 25-38 | 178 | 150 | 118-163 | |||
| PSG -0904 | Short head fine type | 3-13 | 41 | 35 | 27-90 | |||
| PSG -0906 | Short head medium type | 3-16 | 76 | 65 | 27-100 | |||
| PSG -0907 | Short head coarse type | 6-19 | 102 | 85 | 59-129 | |||
| PSG -1313 | Standard fine type | 1295(41/4') | 13-31 | 137 | 115 | 109-181 | 160 | 2983*1866*3156 |
| PSG -1321 | Standard medium type | 16-38 | 210 | 178 | 132-253 | |||
| PSG -1324 | Standard coarse type | 19-51 | 241 | 205 | 172-349 | |||
| PSG -1325 | Standard super coarse type | 25-51 | 259 | 220 | 236-358 | |||
| PSG -1306 | Short head fine type | 3-16 | 64 | 54 | 36-163 | |||
| PSG -1308 | Short head medium type | 6-16 | 89 | 76 | 82-163 | |||
| PSG -1310 | Short head fine type | 8-25 | 105 | 89 | 109-227 | |||
| PSG -1313 | Short head super coarse type | 16-25 | 133 | 113 | 209-236 | |||
| PSG -1620 | Standard fine type | 1676(51/2') | 16-38 | 209 | 178 | 181-327 | 220 | 3941*2954*3771 |
| PSG -1624 | Standard medium type | 22-51 | 241 | 205 | 258-417 | |||
| PSG -1626 | Standard coarse type | 25-64 | 269 | 228 | 299-635 | |||
| PSG -1636 | Standard super coarse type | 38-64 | 368 | 313 | 431-630 | |||
| PSG -1607 | Short head fine type | 5-13 | 70 | 60 | 90-209 | |||
| PSG -1608 | Short head medium type | 6-19 | 89 | 76 | 136-281 | |||
| PSG -1613 | Short head coarse type | 10-25 | 133 | 113 | 190-336 | |||
| PSG -1614 | Short head super coarse type | 13-25 | 133 | 113 | 253-336 |
Note: This specification is just reference, any changes are subject to the PSG Series Cone Crusher products.
PSG Series Cone Crusher Working Principle:
During operation, the motor drives the eccentric shaft shells to turn around through a horizontal axle and a pair of bevel gear. The axle of crusher cone swings with the force of eccentric shaft shell so that the surface of the crusher walls is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooker and crushed.
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
