Product Details:
|
| Type: | Cone Crusher | Capacity(t/h): | 181-327TPH |
|---|---|---|---|
| Discharge: | 16-38MM | Max Feeding Size: | 209mm |
| Power(Kw): | 220KW | Warranty: | 12 Months |
| Application: | Mining,construction,Quarry,etc,ore, Granite Mine, Limestone Mine | After-sales Service Provided: | Engineers Available To Service Overseas,commissioning And Training,Video Technical Support |
| Certification: | CE&ISO Certificates | Color: | Iron Grey,white ，yellow， Blue， Red,grey Or Customized |
| Installation: | Under Our Technical‘s Guidance,guided By Our Senior Engineer | Spare Parts Supply: | Lifelong Time |
| High Light: | Rock Industrial Crusher Machine,Riverstone Industrial Crusher Machine,Mobile Mining Crusher |
||

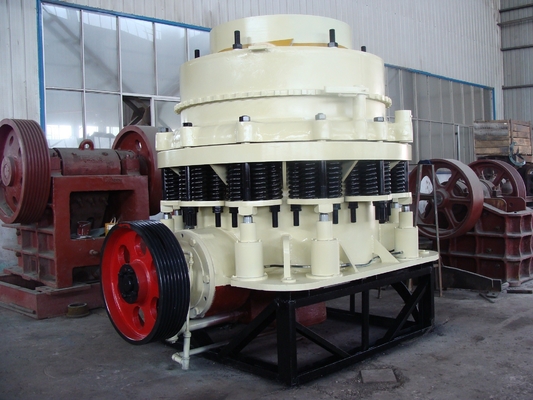

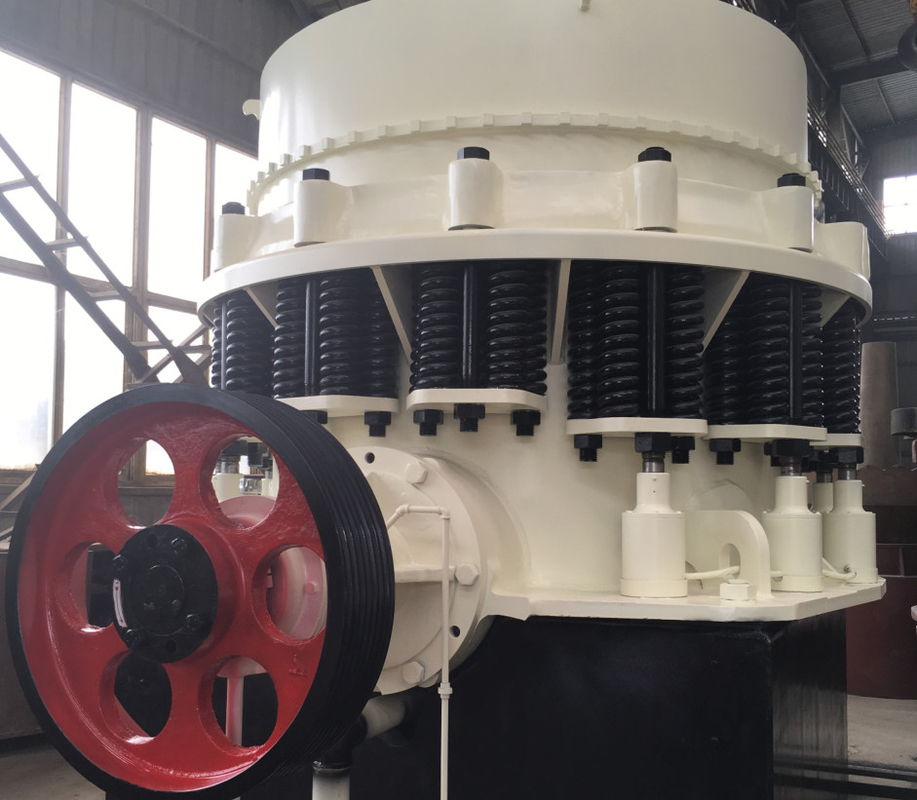

Symons cone crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. Also symons cone crusher uses the compensating lubricating grease sealing, it can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system of cone crusher uses several spring sets, so the matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably. The cone crusher has standard type and short head type, the standard type is suitable to medium size and the short head type for medium and fine crushing.
Symons cone crusher features :
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.
Cone crusher can reach the crushing ratio of 4-6 and the shape of final product is even. It is widely applied to crush high hardness, MID hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.

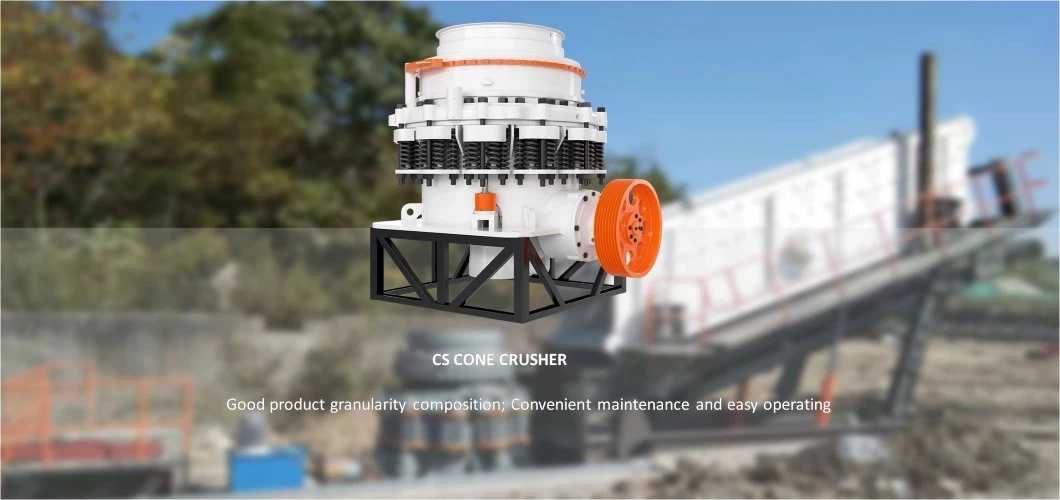

CS cone crusher is a modern high performance crusher, which integrates high swing frequency, optimized cavity type and reasonable stroke based on the introduction and absorption of foreign technology, according to the customer's demand and based on the principle of lamination crushing and the concept of more break and less grinding. Good product granularity composition; Convenient maintenance and easy operating; Low production cost and wide application.
Applicable Materials:
Iron, ore, pebbles, non-ferrous metal ore, granite, basalt, limestone, quartz and sand stone.
| Type | Model | Cavity Type | Diameter of cone (mm) | Adjusting Range of Discharge Opening (mm) |
Recommend feeding size when the minimum output size (mm) | Max feed size (mm) |
Capacity (t/h) | Main Motor Power (kw) |
Weight (kg) | Overall Dimension (L×W×H) (mm) |
| 2’FT | PSGB- 0607 | Standard fine | 600 | 6-38 | 70 | 60 | 16-50 | 22 | 4500 | 2195×1158×1651 |
| PSGB- 0609 | Standard medium | 10-38 | 95 | 80 | 18-65 | |||||
| PSGB- 0611 | Standard coarse | 13-38 | 110 | 90 | 22-70 | |||||
| PSGD- 0603 | Short head fine | 3-13 | 35 | 30 | 9-35 | |||||
| PSGD- 0605 | Short head coarse | 5-16 | 50 | 40 | 22-70 | |||||
| 3’FT | PSGB- 0910 | Standard fine | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PSGB- 0917 | Standard coarse | 13-38 | 175 | 150 | 59-163 | |||||
| PSGB- 0918 | Standard super coarse | 25-38 | 178 | 150 | 118-163 | |||||
| PSGD-0904 | Short head fine | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PSGD-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 | |||||
| PSGD-0907 | Short head coarse | 6-19 | 102 | 85 | 59-129 | |||||
| 4.25’FT | PSGB- 1313 | Standard fine | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PSGB- 1321 | Standard medium | 16-38 | 210 | 178 | 132-253 | |||||
| PSGB- 1324 | Standard coarse | 19-51 | 241 | 205 | 172-349 | |||||
| PSGB- 1325 | Standard super coarse | 25-51 | 259 | 220 | 236-358 | |||||
| PSGD-1306 | Short head fine | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 | |||||
| PSGD-1310 | Short head coarse | 8-25 | 105 | 89 | 109-227 | |||||
| PSGD-1313 | Short head super coarse | 16-25 | 133 | 113 | 209-236 | |||||
| 5.5’FT | PSGB- 1620 | Standard fine | 1676 | 16-38 | 209 | 178 | 181-327 | 220 | 43270 | 3941×2954×3771 |
| PSGB- 1624 | Standard medium | 22-51 | 241 | 205 | 258-417 | |||||
| PSGB- 1626 | Standard coarse | 25-64 | 269 | 228 | 299-635 | |||||
| PSGB- 1636 | Standard super coarse | 38-64 | 368 | 313 | 431-630 | |||||
| PSGD-1607 | Short head fine | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
| PSGD-1608 | Short head medium | 6-19 | 89 | 76 | 136-281 | |||||
| PSGD-1613 | short head coarse | 10-25 | 133 | 113 | 190-336 | |||||
| PSGD-1614 | Short head super coarse | 13-25 | 133 | 113 | 253-336 | |||||
| 7’FT | PSGB- 2127 | Standard fine | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 | 4613×3302×4638 |
| PSGB- 2133 | Standard medium | 25-51 | 334 | 284 | 862-1424 | |||||
| PSGB- 2136 | Standard coarse | 31-64 | 369 | 314 | 1125-1814 | |||||
| PSGB- 2146 | Standard super coarse | 38-64 | 460 | 391 | 1252-1941 | |||||
| PSGD-2110 | Short head fine | 5-16 | 105 | 89 | 218-463 | 89500 | ||||
| PSGD-2113 | Short head medium | 10-19 | 133 | 113 | 404-580 | |||||
| PSGD-2117 | Short head coarse | 13-25 | 178 | 151 | 517-680 | |||||
| PSGD-2120 | Short head super coarse | 16-25 | 203 | 172 | 580-744 |
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
