Electromagnetic vibrating feeder feed lump or granulated materials to the other devices evenly and continuously feeder

Product Description

　　GTZ Series Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed material into the primary crusher homogeneously, meanwhile because of the bar-shaped screen, it can screen away soil contained in the raw material, increase the capacity of the primary crushing. It is suitable for feeding material into the primary crusher in hydropower field, building material and mining.

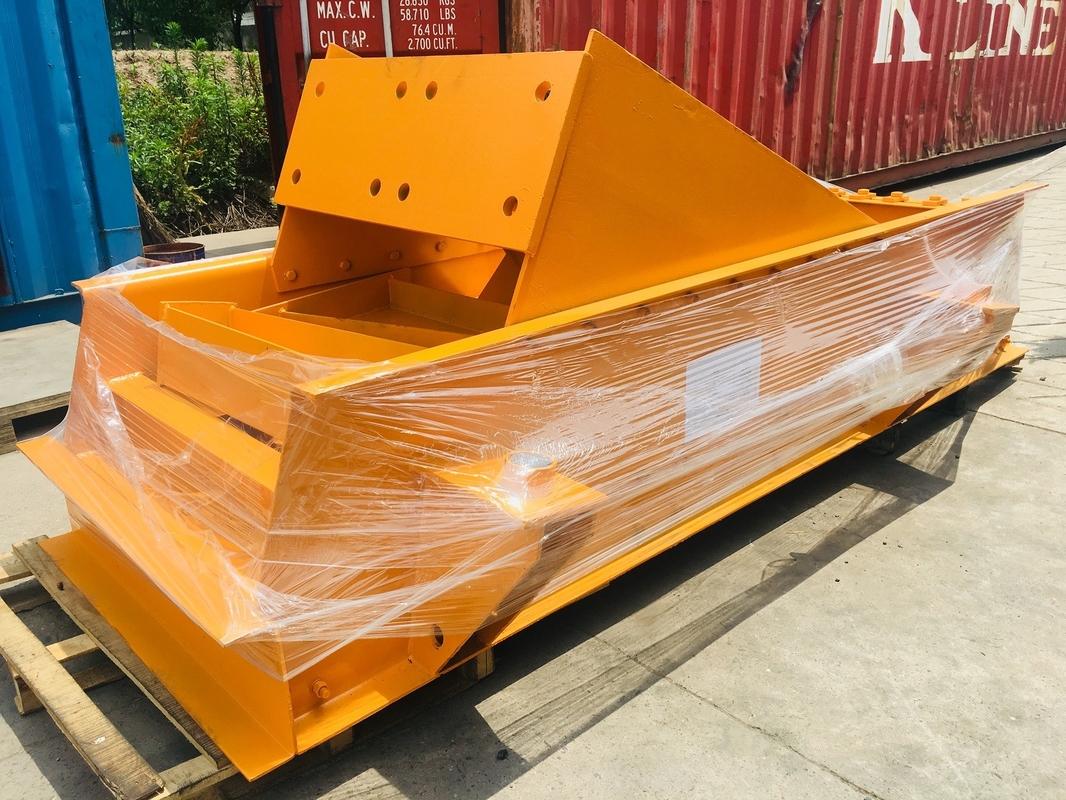

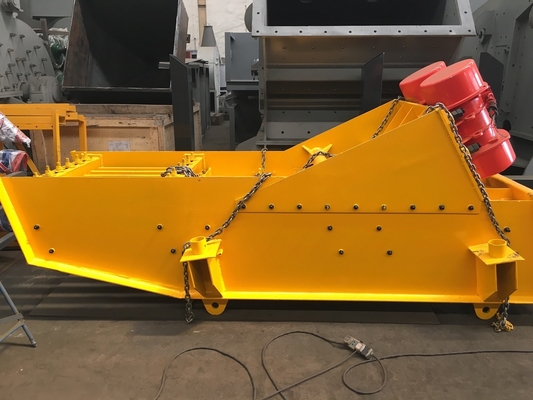

GZT Series Vibrating Feeder

Working Principle

The vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.

Performance Features

1.Reliable operation and long service life;
2.Excitation force and materials quantity moving in the feeder can be adjusted conveniently and easily;
3.Vibrating motor,as the excitation source,has low noise,small powder consumption,good adjusting performance and without material splash;
4.Simple structure, reliable running, convenient installation, light weight, small size, easy maintenance and the enclosed type can prevent dust pollution.

Features

1.Smooth vibration
2.Special bar to prevent the block of raw material
3.The distance between bars is adjustable
4.Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.
5.Stable performance &Reliable operation.
6.Easy to adjust &Easy to maintain
7.Long span life &No pollution with closed body
8.Good performance-conditioning, it can be used in any severe environments.

Specification

Technical Data:

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
