Product Details:
|
| Weight: | 43.3 Tons | Capacity(t/h): | 100-210TPH |
|---|---|---|---|
| Power(Kw): | 75Kw | Max Feeding Size: | 500MM |
| Condition: | New Machines | Warranty: | 12 Months From Production Time Or 15 Months From Leave Factory |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,for Commissioning And Training | Application: | Mining,Construction,highway,quarry,ore Processing |
| Type: | Jaw Crusher,Mobile Crusher,basalt Crushing Line Jaw Stone Crusher Primary Quarry Jaw Crusher | Product Name: | Ore Rock Stone Crusher Machine Crusher For Sale,mobile Jaw Crusher With Belt,All Specification Stone Rock Mobile Jaw Cone Crusher Price |
| Installation: | Engineer Guide,under The Engineers'guidance | Spare Parts Supply: | Can Supply Anytime |
| Keyword: | Mobile Crusher For Rocks Crushing | Name: | Mobile Crushing Station, Crusher Stone Machine,90-650TPH Aggregate Mobile Stone Crusher Price |
| After Sale Service: | Life-long Service For Machines | Test&installation: | Senior Professional Engineers Assigned For Client |
| Highlight: | Mobile Crusher Machine 75Kw,210 TPH Mobile Crusher Machine,Portable Jaw Crusher |
||

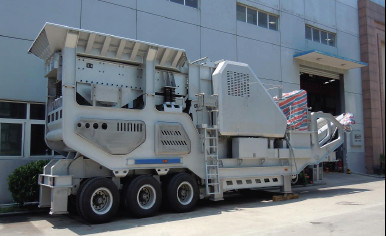

Brief introduction of mobile crushing plant
Mobile crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.
Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant
Performance characteristics of mobile crushing plant
1>. Flexible configuration, single machine operation, multi-device supporting operation.
2>. The vehicle-mounted motor and control box are integrated, compact and easy to use.
3>. Vehicle mounting support, equipment venue is fast and convenient.
4>. Steering the traction shaft for easy road transport and site depth.
5>. High mobile performance and high applicability.
6>. Save costs and reduce costs.
7>. Stable performance and easy maintenance.
Working principle of mobile crushing plant
The main crushing equipment in the mobile crushing station is a crusher (jaw crusher, counter crusher, cone crusher, impact crusher), and the materials are uniformly transported to the crusher through the feeder. The closed circuit system is formed by the circular vibrating screen after being broken by the crusher preliminarily, which realizes the circulation crushing of the material and outputs the material according with the grain size requirement by the conveyer, so as to achieve the purpose of production.
According to the requirements of different crushing processes, it can be formed into "first crushing and second sieve" or "first sieve and then crushing". Crushing stations can be combined into coarse crushing, fine crushing and two-stage crushing and screening system according to actual demand, or they can be combined into coarse and medium crushing. Fine crushing three-stage crushing screening system, but also independent operation, has a great deal of flexibility
Technical Parameters of mobile crusher
| Model | Feeding Equipment | Crushing Equipment | Max. preparedness capacity(t/h) | Overall Dimension | Weight (t) | ||
| Model | Model | Max. Feeding Size(mm) | output (t/h) |
Transport dimension (need tear-down) | |||
| KE600-1 | TSW0936 | PE600×900II | 500 | 90-180 | 100-210 | 12150×2600×3950(mm) | 43 |
| KE750-1 | TSW1139 | PE750×1060 | 630 | 110-300 | 130-330 | 13000×2850×4400mm | 61 |
| KE760-1 | TSW1139 | PEW760 | 640 | 150-310 | 170-330 | 13000×2800×4200(mm) | 55 |
| KE860-1 | TSW1345 | PEW860 | 720 | 200-420 | 230-450 | 14600×3000×4500(mm) | 64 |
| KE1100-1 | TSW1548 | PEW1100 | 930 | 300-600 | 350-650 | 14050×2900×4000(mm) | 96 |
| KF1214II-1 | TSW0936 | PFW1214II | 500 | 110-190 | 120-210 | 12150×2600×3980(mm) | 48 |
| KF1214II-1 | TSW1139 | PFW1214II | 500 | 110-190 | 140-230 | 13000×2800×4200(mm) | 53 |
| KF1315II-1 | TSW1345 | PFW1315II | 600 | 180-280 | 190-310 | 14600×3100×4500(mm) | 61 |
| KF1415II-1 | TSW1548 | PFW1415II | 700 | 280-450 | 310-480 | 14050×3000×4000(mm) | 74 |
Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant application:
Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant is not limited by the crushing place, and reduces high material transportation cost. It is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy and so on.
Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant can be used in Pebble,rock( the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, slags. can be used in Building aggregate, highway, asphalt concrete and cement aggregate production.As well as stone reshaping production in water conservancy and hydropower engineering field,highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.
How about the final product?
After a series of broken, Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant can meet the different requirements of customers
What is the advantage of Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant?
Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
Can you show me the Complete quarry crushing machine, mobile granite limestone gravel jaw crusher, Factory price Aggregate rock stone crushing plant for stone working condition?
