Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry

Certification
China Shanghai Runwell Machinery Equipment Co.,Ltd certification
China Shanghai Runwell Machinery Equipment Co.,Ltd certification
I'm Online Chat Now

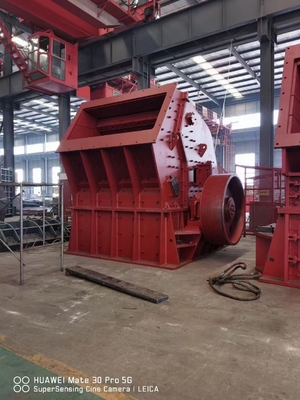

Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry

Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry
Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry
Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry

Large Image :  Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry

Product Details:
Place of Origin: Shanghai, China
Brand Name: RUNWELL
Certification: CE,ISO certificates
Model Number: PF1214
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 35000-40000
Packaging Details: Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time: 10-20 working days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 50 sets per month

Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry

Description
Application: Granite Crusher, Limestone, Basalt Crusher, Coal Crusher Max Feeding Size: 350 Mm
Capacity(t/h): 110-180tph Weight: 18.5t
Power(Kw): 132Kw 380V,50Hz Dimension(l*w*h): 2690*2688*2890mm
Warranty: 12 Months Certification: CE&ISO Certificates
Color: Customizable,Iron Grey,yellow,White,blue The Machines Classification: Building Stone Production Line,sand Making Machine,small Stone Impact Crusher
Keyword: Road Construction Machine Impact Crusher Product Name: Hot-selling Impact Crusher For Limestone, Granite,PF Impact Crusher
Highlight:

Granite Ore Impact Rock Crusher

,

150 TPH Impact Rock Crusher

,

Mining Quarry Granite Crusher Machine

PF Good Quality & Good Price Mine/Stone/Rock/Mining/Mineral/Quarry/Granite/Limestone/Ore Hydraulic Impact rock Crusher

Granite Ore Impact Rock Crusher 100-150 TPH PF For Mineral Mining Quarry,granite crusher machine





Product Description

Best Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PriceBest Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PriceBest Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PricePF series of equipment includes secondary and tertiary impact plate which can handle the materials less than 100-800mm in the length.It is suitable to crush the medium hard material with compressive resistance of 350Mpa. The discharging from impact crusher is small and fine granularity of cubic shape.

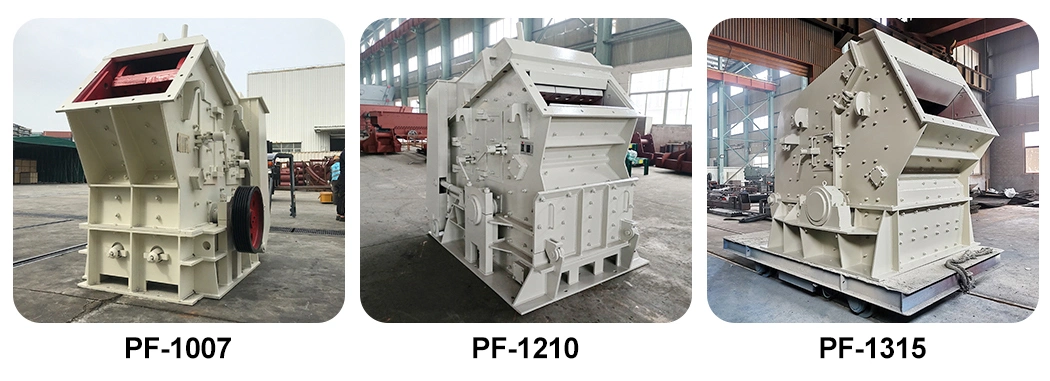

Model Spec of Rotor(mm) Feed Opening (mm x mm) Max.Feed Edge(mm) Capacity(tph) Power(kW) Weight(Excluding Electric Motor)(t)
PF-1007VI Φ1000X700 400X730 300 20-40 55 9.5
PF-1010 Φ1000X1050 400X1080 350 50-80 55 12.8
PF-1010VI Φ1000X1050 400X1080 350 50-80 55 12.6
PF-1210 Φ1280X1050 400X1080 350 70-120 110 14.1
PF-1210VI Φ1280X1050 400X1080 350 70-120 110 13.2
PF-1214 Φ1280X1400 400X1430 350 95-145 132 16.8
PF-1214VI Φ1280X1400 400X1430 350 95-145 132 15.3
PF-1315V Φ1320X1500 800X1530 300 100-180 185/220 21.0
PF-1315VI Φ1320X1500 800X1530 500 120-200 185 18.9
PF-1320 Φ1320X2000 800X2030 400 280-320 280 29.7
PF-1420 Φ1400X2000 1250X2030 600 250-350 355 40.0
PF-1515 Φ1500X1500 580X1580 350 220-280 280 28.5
PF-1620 Φ1600X2000 1600X2080 600-800 350-400 560 47.5
Best Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PriceBest Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PriceBest Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PriceBest Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PriceBest Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good PriceBest Quality PF1007 PF1010 PF1210 PF1214 PF1315 Two/Three Cavity Stone Impact Crusher with Good Price

Impact crusher boasts cubic shape without tension and cracks. It can crush stone smaller than 500mm with compression strength lower than 350MPA, such as granite, limestone, concrete, etc.

Impact crusher is widely used in all kinds of ore crushing, railway, highway, energy, cement, chemical industry, construction, etc. The output size can be adjusted.

Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry 9

Working Principle

Impact crusher crushes material by striking energy. When it works, the motor drives the rotor to rotate at a high speed, on which the blow bar is installed. As soon as the material gets into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can be adjusted to change the size and shape of the end products.

Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry 10

Benefits

  • Hard rock crushing, energy efficient;
  • Blow bar made of high-chromium iron with advantages of good wear resistance;
  • Strong structure Steady performance
  • No-board connection Easy to disassembly and maintain

Crusher Efficiency

PF impact crushers are the solution when output and productivity demands are increasingly stringent, from quarry to industrial applications and from mining to recycling. PF impact crushers feature a unique blow-bar attachment system. Combined with perfect blow-bar alignment on the crossbeam contact faces, this reduces risks of breakage and makes it possible to push the use of cast iron for blow bars beyond conventional limits. The rotor with high inertia improves crushing reduction and provides stability in the process, reducing energy consumption.



Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry 11

Granite Ore Impact Rock Crusher 100 - 150 TPH PF For Mineral Mining Quarry 12

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
