Product Details:
|
| Material: | Rubber + EP Fabric | Material Feature: | Heat Resistant,Fire Resistant,oil Resistance/fire Resistance/weatherproof/hard Wearing,rubber |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
| Structure: | Belt Conveyor,Conveyor System | Power(w): | 5.5kW - 110kW |
| Voltage: | 220V/380V/415V | Dimension(l*w*h): | Based |
| Type: | BELT CONVEYOR | Load Capacity: | Strong |
| Color: | Black,Customers' Request,brown | Application: | Cement,crusher Plant,quarry, Mine |
| Product Name: | Belt Conveyor,large Capacity Conveyor Belt Used For General Industrial Equipment,Chinese Manufacturer Small Adjustable Speed Conveyor Belt | Warranty: | 12 Months |
| Feature: | High Transmission Efficiency | Belt Material: | Rubber,PE |
| Frame Material: | Carbon Steel | Name: | DT-II Type Belt Conveyor |
| Belt Width: | B500,B650,B800,B1000,B1200, B1400,B1600 | ||

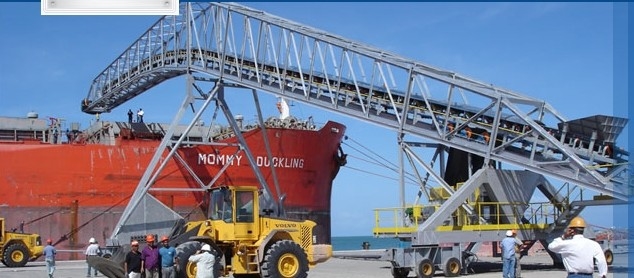

| Highlight: | Continental Conveyor Belt Cotton Canvas,Continental Conveyor Belt Polyester Canvas,Telescopic Truck Loading Conveyor |
||
| Belt Width (mm) |
Belt Length (m) / Power (kw) | Belt Speed (m/s) |
Capacity (t/h) |
||
| 400 | <12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2.0 | 40 -80 |
| 500 | <12/3 | 12-30/4 | 20-30/5.5 | 0.8-2.0 | 78-191 |
| 650 | <12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2.0 | 131-323 |
| 800 | <10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2.0 | 278-546 |
| 1000 | <10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2.0 | 435-853 |
| 1200 | <10/7.5 | 10-20/11 | 20-25/15 | 1.0-2.0 | 655-1284 |
