Oil Fire Resistant Powered Belt Conveyor 440V Cement Mining Quarry

Oil Fire Resistant Powered Belt Conveyor 440V Cement Mining Quarry
Oil Fire Resistant Powered Belt Conveyor 440V Cement Mining Quarry Oil Fire Resistant Powered Belt Conveyor 440V Cement Mining Quarry

Large Image :  Oil Fire Resistant Powered Belt Conveyor 440V Cement Mining Quarry

Product Details:
Place of Origin: Shanghai, China
Brand Name: RUNWELL
Certification: CE,ISO certificates
Model Number: B500,B650,B800,B1000,B1200, B1400,B1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10000-50000
Packaging Details: Container, in Bulk; Export Packing Standard
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 50 sets per month
Contact Now

Oil Fire Resistant Powered Belt Conveyor 440V Cement Mining Quarry

Description
Material: Rubber + EP Fabric Material Feature: Heat Resistant,Fire Resistant,oil Resistance/fire Resistance/weatherproof/hard Wearing,rubber
Voltage: 380V/415V/440V Power(w): 5.5kW - 630kW
Capacity: 50-5000tph Speed: 0.8~5.0m/S
Type: BELT CONVEYOR Drive Drum Diameter:: D500-1600mm
Product Name: Customizable Belt Conveyor Warranty: 12 Months
Name: DT-II Type Belt Conveyor Belt Width: B500,B650,B800,B1000,B1200, B1400,B1600
Highlight:

Powered Belt Conveyor 415V

,

Powered Belt Conveyor Cement

,

Fire Resistant Conveyor Belt





Belt Conveyor for Mining and quarry, cement plant Oil Resistant, Heat Resistant, Fire Resistant belt

Product Description

Belt Conveyor

Product Introduction
Fixed belt conveyor is a general series of products, a continuous convey device with cotton canvas, nylon, polyester canvas and wire rope core conveyor belt as traction components. It is suitable for conveying bulk materials and finished goods, with packing density of 500 ~ 2500 kg/ m3 at ambient temperature of -25 ~ + 40ºC.

The fixed belt conveyor is designed according to the series of parts. The whole machine can be assembled according to the process route, design and calculation in accordance with different terrain and working conditions. It can meet the conditions of horizontal, upper and lower transportation. And it can also adopt the transportation form with combination of convex arc section, concave arc segment and straight-line segment. Conveyors should be installed in the corridor as far as possible, in the open environment, and the driving part should be provided with protective cover. For places with special requirements, the corresponding protective measures should be taken, such as high temperature, cold, explosion-proof, flame retardant, anti-corrosion, acid and alkali resistance, waterproof, etc..
High Quality Belt Conveyor for Quarry Crushing Plant
PERFORMANCE CHARACTERISTICS

1. A wide range of materials to be transported
2. Wide range of conveying capacity
3. Adaptability of transmission lines
4. Flexible handling of materials
5. Strong reliability
6. High safety
7. Low costs



TECHNICAL PARAMETER


1. Bandwidth: B500~1400mm band speed: 0.8~5.0m/s capacity: 69~4130 m3/ h inclination angle: Up-haul 0~25°, down-haul 0~20 °.
2. Power: Single machine 1.1~630kW, multi-machine 22~630KW drive drum diameter: D500~1400mm roller diameter: 0.89~1.159 mm.
3. Tension mode: Spiral, weight, winch, hydraulic automatic tension, etc..

No. Specifications Conveying
Capacity (t/h)		 Belt Speed
(m/s)		 Belt Width
(mm)		 Main Machine
Power		 Drive Drum
Diameter (mm)		 Roller Diameter (mm)
1 DTL80/40/75 400 2 800 75 500 108
2 DTL80/40/2*90 400 2 800 2*90 500 108
3 DTL100/45/2*75 450 2.5 1000 2*75 630 108
4 DTL100/63/2*132 630 2.5 1000 2*132 630 108
5 DTL120/180/3 1800 3.5 1200 3*250 830 133
6 DTL140/200/2*400 2000 4 1400 2*400 1000 159
7 DTL160/400/3*100 4000 4.5 1600 3*1000 1600 194
8 DTL180/450/3*630 4500 5 1800 3*630 1400 194
9 DTL200/500/3 5000 5 2000 3*630 1600 194


Main Structure
1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including turnabout Pulley, Tension Equipment etc.)
4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting leg 8.Middle Frame Assemble 9.Upper Pin
10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg 14.Slider 15.Driven assembly 16.Head chute
High Quality Belt Conveyor for Quarry Crushing Plant

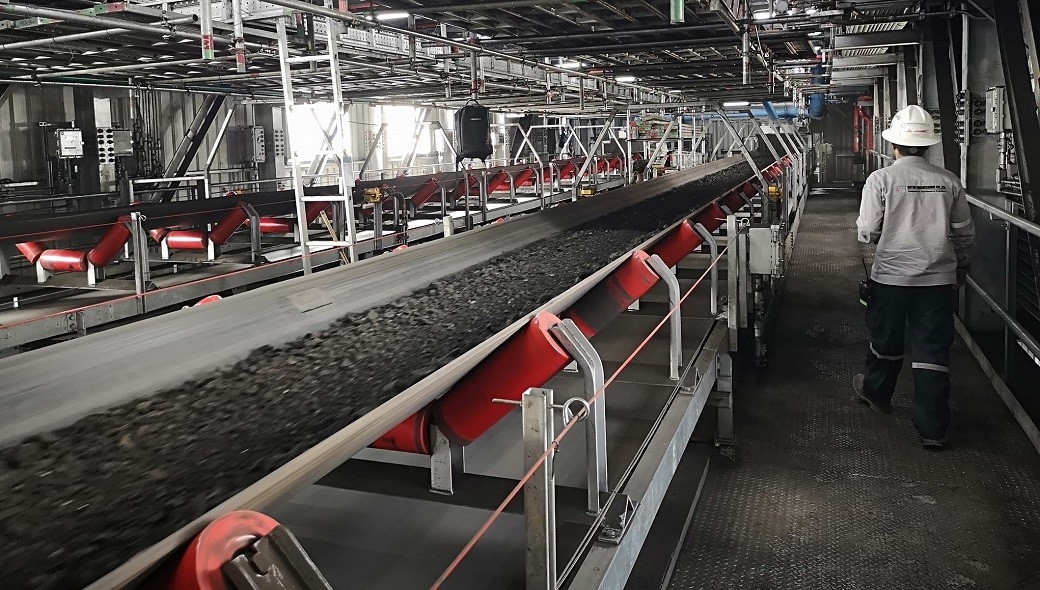

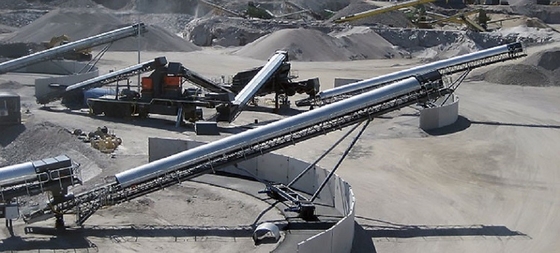

Site Photo
High Quality Belt Conveyor for Quarry Crushing Plant

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (RUNWELL) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
High Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing Plant
Packaging and Shipping
High Quality Belt Conveyor for Quarry Crushing Plant
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
