Vehicle Truck Loading Transfer Belt Conveyor 3000 TPH Inclined Container Mining Quarry

Large Image : Vehicle Truck Loading Transfer Belt Conveyor 3000 TPH Inclined Container Mining Quarry

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	RUNWELL
Certification:	CE,ISO certificates
Model Number:	B500,B650,B800,B1000,B1200, B1400,B1600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD12000-200000
Packaging Details:	Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	50 sets per month

Contact Now

Vehicle Truck Loading Transfer Belt Conveyor 3000 TPH Inclined Container Mining Quarry

Description

Capacity:	50-3000tph	Power(w):	7.5kW - 250kW Based On The Width And Length
Belt Width:	B500,B650,B800,B1000,B1200, B1400,B1600	Voltage:	380V,50Hz Or Request By Clients
Warranty:	12 Months From Productioni Time	Name:	TDII Type Belt Conveyor Machine
Application:	Cement,crusher Plant,mining Area, Shipping System	Belt Material:	Rubber,Rubber,PE200,EP400,500
Highlight:	Transfer Belt Conveyor 3000 TPH , Vehicle Transfer Belt Conveyor , Truck Loading Belt Conveyor

Portable inclined container/vehicle/truck loading conveyor belt, mining conveyor belt, quarry belt conveyor

Description

Belt Conveyor

Product Introduction
The belt conveyor is a high-performance belt conveyor researched and developed by the company in accordance with the actual situation of the production lines in such industries as diggings, coal mining and metallurgy, etc.The belt conveyor adopts modular part design, which can greatly simplify the production process, reduce the difficulty in installation and removal, save the logistic cost, shorten the stock cycle, improve the product quality and facilitate later maintenance.

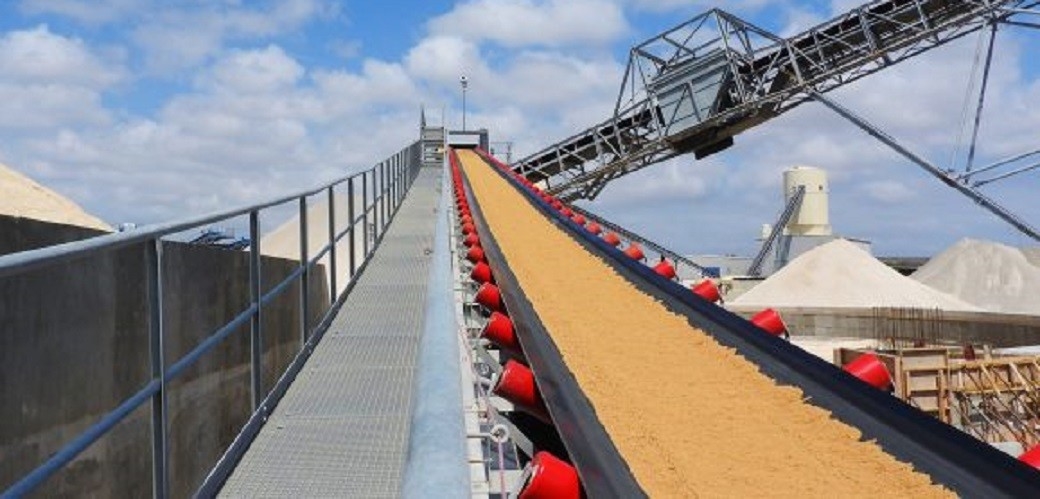

Vehicle Truck Loading Transfer Belt Conveyor 3000 TPH Inclined Container Mining Quarry 0

Product Description

High-Power, Long-Distance Ores/Stone Belt Conveyor Machine
1. Low noise, simple structure
2. Can be horizontal, tilt and vertical transportation
3. Strong transport capacity, long distance.

(1)Classification:

Conveyor can be horizontal, tilt and vertical transmission, but also the composition of space transmission lines, transmission lines are generally fixed. Conveyor transport capacity, long-distance, but also in the transportation process while completing a number of process operation, it is widely used. Main belt conveyor, plate conveyor, scraper conveyor, bucket conveyor, bucket elevator, overhead conveyors and so on.

(2)Used in:

Belt conveyor is widely used in mining, gravel field, metallurgy, building materials, chemical industry, mineral processing, coal mining and other industries transport material.

(3)Work environment:

Belt conveyor, belt conveyor for conveying bulk density of less than 1.67 / t / cubic meter, easy to dig a powder, granular, small block of low-abrasive materials and bags of materials, such as coal, gravel, sand, cement, fertilizer, and grain. Sent material temperature is less than 60 ° C. The form of their captain and assembly can be determined according to user requirements, transmission can be electric drum can also be used with a drive rack drive.

High Quality Belt Conveyor for Quarry Crushing Plant

Features
Product advantages:
1. It is one of the cheapest ways to move material long distances.
2. There is virtually no degradation of your product caused by conveying.
3. The conveyor can have changes in elevation.
4. The material can be visible on the belt while being conveyed.
5. Belts can be loaded virtually any place along the belt.
6. The belt can have "trippers" to unload the belt almost any place.

Main Structure
1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including turnabout Pulley, Tension Equipment etc.)
4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting leg 8.Middle Frame Assemble 9.Upper Pin
10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg 14.Slider 15.Driven assembly 16.Head chute
High Quality Belt Conveyor for Quarry Crushing Plant

Technical Parameters

Belt Width (mm)	Belt Length (m) / Power (kw)			Belt Speed (m/s)	Capacity (t/h)
400	<12/1.5	12-20/2.2	20-25/3	0.8-2.0	40 -80
500	<12/3	12-30/4	20-30/5.5	0.8-2.0	78-191
650	<12/4	12-20/5.5	20-30/7.5	0.8-2.0	131-323
800	<10/4	10-15/5.5	15-25/7.5	1.0-2.0	278-546
1000	<10/5.5	10-20/7.5	20-25/11	1.0-2.0	435-853
1200	<10/7.5	10-20/11	20-25/15	1.0-2.0	655-1284

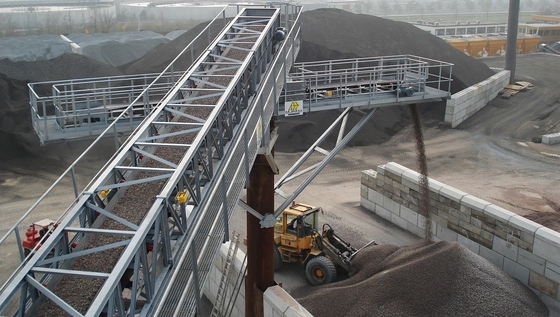

Site Photo

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (RUNWELL) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
High Quality Belt Conveyor for Quarry Crushing Plant

Packaging and Shipping

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
