Product Details:
|
| Application: | Ore,Mining | Warranty: | 12 Months |
|---|---|---|---|
| Voltage: | 380v, 440v | Condition: | New |
| Weight: | 2.5t | Dimension(l*w*h): | 3515*2070*2672 |
| Type: | Sand Sieve, Wheel Sand Washer | Power(Kw): | 5.5 |
| Color: | Iron Grey,black,as Per Customer's Demand | Capacity: | 20-50 TPH |
| Usage: | Screening,Ore Sand,separation | Function: | Screening\separation\sorting\sieving,Screening/separating/cleaning/grading |
| High Light: | Sand And Gravel Wash Plant 20 TPH,Riverstone Sand And Gravel Wash Plant,Automatic Sand Sieving Machine |
||

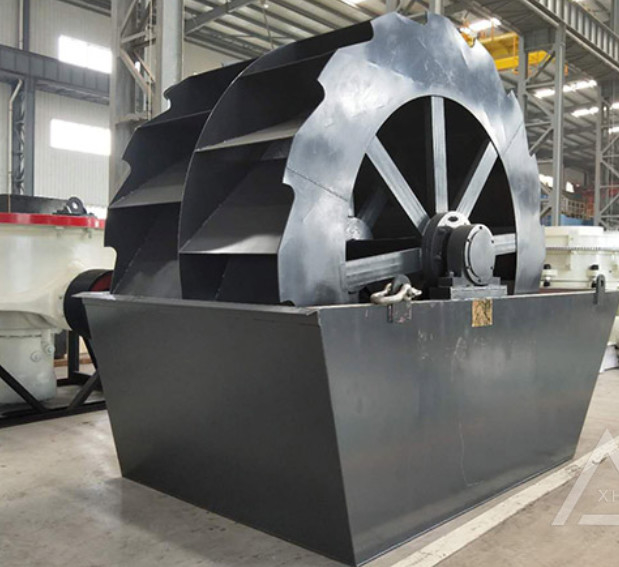

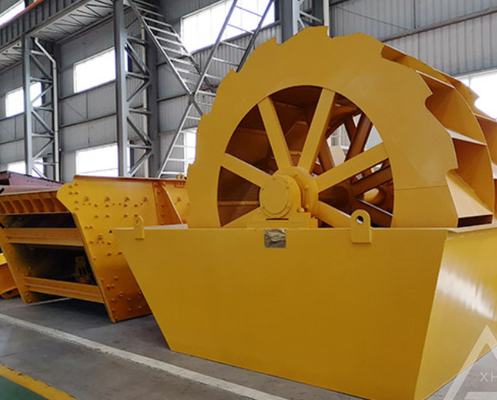

The bucket wheel sand washer cleans and separates stone powder and dust. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects. The sand washer is a kind of high efficiency sand washing equipment operated with sand maker. This series of sand washer features the following advantages: rational structure, convenient maintenance, great handling capacity, low power consumption and high washing cleanliness.
Sand washing machine equipment drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.
| Model | XS2610 | XS2610II | XS2800 | XS3200 | XS3600 |
| Diameter of The Wheel Bucket(mm) | 2610 | 2610 | 2800 | 3200 | 3600 |
| Rotation Rater (r/min) | 2.5 | 2.5 | 1.2 | 1 | 1 |
| Maximum Feeding Size(mm) | ≦10 | ≦10 | ≦10 | ≦10 | ≦10 |
| Processing Capacity(t/h) | 20~50 | 30~70 | 50~100 | 80~120 | 120~180 |
| Motor Power (kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Overall Dimensions(mm) | 3515*2070*2672 | 3515*2070* 2672 | 3900*3300* 2990 | 3965*4440* 3410 | 4355*4505* 3810 |
| Weight (kg) | 2500 | 2900 | 3980 | 7270 |
9430 |
| Model | Screw diameter(mm) | Length of Chute (mm) | Max feeding size(mm) | Capacity (t/h) | Speed (r/min) | Power (kw) | Water Consumption(t/h) | Overall dimension(L×W×H)(mm) | Weight(t) |
| XL508 | 508 | 6705 | ≦10 | 20 | 38 | 5.5 | 6-60 | 8000*2343*1430 | 2.67 |
| XL610 | 610 | 7225 | ≦10 | 40-50 | 32 | 7.5 | 6-63 | 8000*2050*1400 | 3.80 |
| XL762 | 762 | 7620 | ≦10 | 50-75 | 26 | 11 | 9-63 | 8545*2650*3862 | 5.23 |
| XL920 | 920 | 8026 | ≦10 | 100 | 18 | 11 | 10-80 | 8715X1632X2075 | 4.6 |
| 2XL920 | 920 | 8026 | ≦10 | 150-180 | 18 | 2*11 | 20-160 | 8715X2602X2075 | 7.9 |
| XL1115 | 1115 | 8532 | ≦10 | 175 | 18 | 15 | 20-150 | 9231X1833X2126 | 5.6 |
| 2XL1115 | 1115 | 8532 | ≦10 | 200-250 | 18 | 2*15 | 40-300 | 9231X2995X2126 | 10 |
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
