250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen

250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen
250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen

Large Image :  250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen

Product Details:
Place of Origin: Shanghai, China
Brand Name: RUNWELL
Certification: CE,ISO certificates
Model Number: XS-3600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD35000-40000
Packaging Details: Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time: 20 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 30 sets per month

250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen

Description
Warranty: 1 Year Warranty From Production Voltage: 380v, 440v / 50Hz, 60Hz
Capacity: 120-180 TPH Weight: 9.5t
Power(Kw): 15Kw Dimension(l*w*h): 4355*4505* 3810mm
Type: Wheel Type Sand Washer Color: White,blue,grey, Or Other Color
Usage: Screening,Ore Sand,separation, Reducing The Earth Function: Screening\separation\sorting\sieving,Screening/separating/cleaning Sand/grading
High Light:

250 TPH Bucket Wheel Sand Washer

,

60t/h Bucket Wheel Sand Washer

,

Eccentric Shaft Vibrating Screen

High Quality Silica Sand Washer Plant Wash Sand Machine Screw Spiral Silica Sand Washing Machine for Sand

Product Description

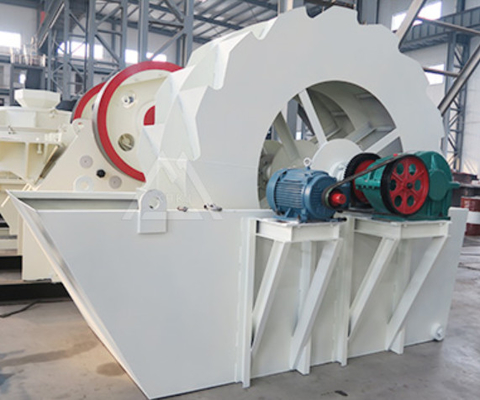

The bucket wheel sand washer cleans and separates stone powder and dust. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects. The sand washer is a kind of high efficiency sand washing equipment operated with sand maker. This series of sand washer features the following advantages: rational structure, convenient maintenance, great handling capacity, low power consumption and high washing cleanliness.

250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 0

Working Principle

  Sand washing machine equipment drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.

Zenith sand washing machine equipment, sand washing machine with CE

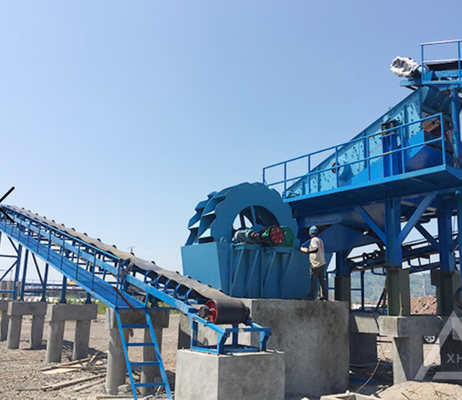

The sand washing machine production line is usually composed of feeders, crushers, drum screens, water washing wheels, belt conveyors,centralized electrical control and other equipment.

This machine is widely used for washing materials in industries such as gravel yard, mining, building materials, transportation, chemical industry, water conservancy and hydropower,and concrete mixing station.
250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 2
250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 3
Performance Features
1.The structure of the machine is simple, and the impeller drive bearing device is isolated from water and water-receivin materials,which greatly avoids the damage of the bearing due to water immersion, sand and pollutants.
2. There is very little loss of medium-fine sand and stone powder, and the grade and fineness modulus of the washed building sand meet the standards for building sand,building pebbles, and gravel.
3. The machine has almost no wearing parts except screen.
4. Long service life, no maintenance for a long time.
250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 4
250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 5
250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 6



250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 7

Specification



Model XS2610 XS2610II XS2800 XS3200 XS3600
Diameter of The Wheel Bucket(mm) 2610 2610 2800 3200 3600
Rotation Rater (r/min) 2.5 2.5 1.2 1 1
Maximum Feeding Size(mm) ≦10 ≦10 ≦10 ≦10 ≦10
Processing Capacity(t/h) 20~50 30~70 50~100 80~120 120~180
Motor Power (kw) 5.5 5.5 7.5 11 15
Overall Dimensions(mm) 3515*2070*2672 3515*2070* 2672 3900*3300* 2990 3965*4440* 3410 4355*4505* 3810
Weight (kg) 2500 2900 3980 7270

9430



Specification

Model Screw diameter(mm) Length of Chute (mm) Max feeding size(mm) Capacity (t/h) Speed (r/min) Power (kw) Water Consumption(t/h) Overall dimension(L×W×H)(mm) Weight(t)
XL508 508 6705 ≦10 20 38 5.5 6-60 8000*2343*1430 2.67
XL610 610 7225 ≦10 40-50 32 7.5 6-63 8000*2050*1400 3.80
XL762 762 7620 ≦10 50-75 26 11 9-63 8545*2650*3862 5.23
XL920 920 8026 ≦10 100 18 11 10-80 8715X1632X2075 4.6
2XL920 920 8026 ≦10 150-180 18 2*11 20-160 8715X2602X2075 7.9
XL1115 1115 8532 ≦10 175 18 15 20-150 9231X1833X2126 5.6
2XL1115 1115 8532 ≦10 200-250 18 2*15 40-300 9231X2995X2126 10



250 TPH 60t/h Bucket Wheel Sand Washer Sand Screw Spiral Eccentric Shaft Vibrating Screen 8

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
