Product Details:
|
| Warranty: | 12months Warranty Time From Production | Voltage: | 380v, 440v/ 50Hz, 60Hz |
|---|---|---|---|
| Weight: | 4.5t | Power(Kw): | 11Kw |
| Capacity: | 100-120 TPH | Dimension(l*w*h): | 8715X1632X2075mm |
| Type: | Wheel Type Sand Washer | Color: | White,blue,grey, Or Other Color |
| Usage: | Reducing The Earth | Function: | Screening\separation\sorting\sieving,Screening/separating/cleaning Sand/grading |
| High Light: | Vibrating Screen Machine XS,Vibrating Screen Machine XL,Silica Sand Washing Machine |
||
XL series spiral sand washing machine application field: widely used in stone factories, mixing stations, building materials, water saving and hydropower.

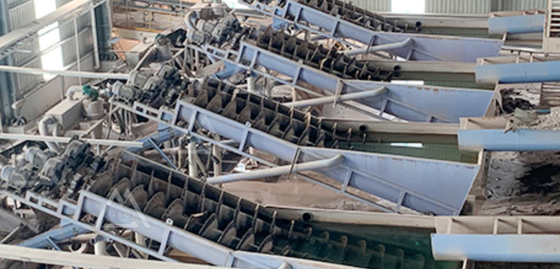

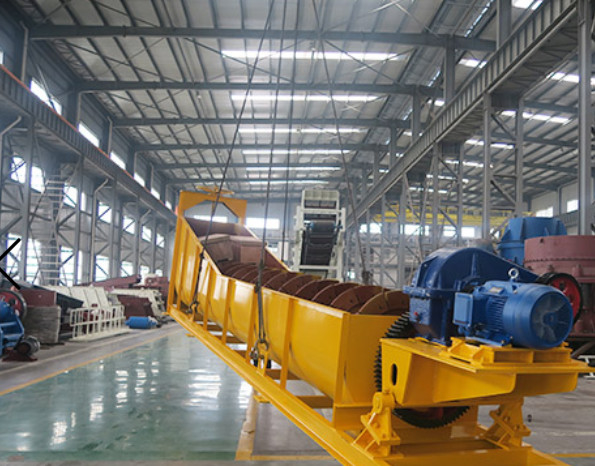

The XL series spiral sand washer is a spiral cleaning device. It has low power, good performance and good sealing. It reduces the loss of fine sand and stone dust during work. It guarantees the cleaning and dewatering of the sand mechanism in the sand production line.
During the operation, the spiral sand washer rotates by the force of the spiral impeller, rotates the impeller and rolls the sand mechanism in the machine body, so that the mechanical sand is broken and milled, and the impurities covering the sandstone surface are eliminated. Destroy the water vapor layer of the coated sand to promote dehydration. At the same time, add water to form a strong water flow, remove foreign matter with less impurities and small specific gravity in time, and discharge from the overflow port to complete the cleaning work, and finally rinse the mechanical sand with water. The rotation of the helical impeller enters the discharge conduit.
| Model | XS2610 | XS2610II | XS2800 | XS3200 | XS3600 |
| Diameter of The Wheel Bucket(mm) | 2610 | 2610 | 2800 | 3200 | 3600 |
| Rotation Rater (r/min) | 2.5 | 2.5 | 1.2 | 1 | 1 |
| Maximum Feeding Size(mm) | ≦10 | ≦10 | ≦10 | ≦10 | ≦10 |
| Processing Capacity(t/h) | 20~50 | 30~70 | 50~100 | 80~120 | 120~180 |
| Motor Power (kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Overall Dimensions(mm) | 3515*2070*2672 | 3515*2070* 2672 | 3900*3300* 2990 | 3965*4440* 3410 | 4355*4505* 3810 |
| Weight (kg) | 2500 | 2900 | 3980 | 7270 |
9430 |
| Model | Screw diameter(mm) | Length of Chute (mm) | Max feeding size(mm) | Capacity (t/h) | Speed (r/min) | Power (kw) | Water Consumption(t/h) | Overall dimension(L×W×H)(mm) | Weight(t) |
| XL508 | 508 | 6705 | ≦10 | 20 | 38 | 5.5 | 6-60 | 8000*2343*1430 | 2.67 |
| XL610 | 610 | 7225 | ≦10 | 40-50 | 32 | 7.5 | 6-63 | 8000*2050*1400 | 3.80 |
| XL762 | 762 | 7620 | ≦10 | 50-75 | 26 | 11 | 9-63 | 8545*2650*3862 | 5.23 |
| XL920 | 920 | 8026 | ≦10 | 100 | 18 | 11 | 10-80 | 8715X1632X2075 | 4.6 |
| 2XL920 | 920 | 8026 | ≦10 | 150-180 | 18 | 2*11 | 20-160 | 8715X2602X2075 | 7.9 |
| XL1115 | 1115 | 8532 | ≦10 | 175 | 18 | 15 | 20-150 | 9231X1833X2126 | 5.6 |
| 2XL1115 | 1115 | 8532 | ≦10 | 200-250 | 18 | 2*15 | 40-300 | 9231X2995X2126 | 10 |
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.
2. What is the payment term?
The payment term is T/T.
3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.
4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.
5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
