Product Details:
|
| Application: | Ore,Mining, And Quarry | Warranty: | 12 Months From Production Time Or 15 Months From Leave Factory |
|---|---|---|---|
| Voltage: | 380V,440V | Condition: | New Machine |
| Max. Feed Sizes: | 200mm | Dimension(l*w*h): | Different Models |
| Type: | Vibrating Screen | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Power(Kw): | 22Kw | Product Name: | China Rotary Sand Vibrator Screen In High Quality Manufacture |
| Color: | Iron Grey,black,red, As Per Customer's Demand | Material: | Carbon Steel, High Mn Steel Net |
| Capacity: | 100-400 TPH | Name: | Round Flour Sieving Machine Ultrasonic Vibrating Screen |
| Layer: | 2 Layers | Usage: | Screening,Ore Sand,separation For Aggregates |
| Highlight: | Vibrating Screen Machine 22Kw,Vibrating Screen Machine 2YK2160,400 TPH Double Deck Vibrating Screen |
||

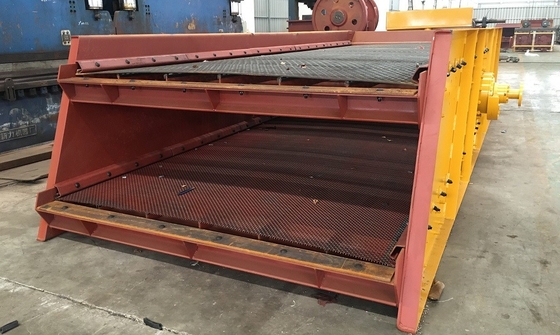

The moving road of this screen is similar as a circle, so it is called Circular Vibrating Screen. Circular Vibrating Screen is of multilayer and high efficiency. The eccentric shaft vibration exciter and eccentric block helps to adjust amplitude. This kind of screen is of long screening stream line and more sieving specifications. So it is widely used for grading in the industries of quarry, building material, transportation, energy, chemical industry, etc.
Circular vibrating screen uses common motor that makes the screen do circular movement along the direction of exciting force to sieve the materials.Circular vibrating screen is widely used used for classification in the quarry, building materials, transportation, energy, chemical industry and so on.
Customized Industrial Sieving and Screening Equipment
| Model | Screen Size(mm) | Screen Hole Size(mm) | Feed Size(mm) | Capacity(t/h) | Power(kw) | Vibration Frequency(r/min) | Double Amplitude |
| 2YK1548 | 1500X4800 | 70 | 120 | 50-200 | 11 | 960 | 7 |
| 3YK1548 | 1500X4800 | 70 | 120 | 50-200 | 15 | 960 | 7 |
| 4YK1548 | 1500X4800 | 70 | 120 | 50-200 | 18.5 | 960 | 7 |
| 2YK1860 | 1800X6000 | 70 | 120 | 80-280 | 22 | 730 | 8 |
| 3YK1860 | 1800X6000 | 70 | 120 | 80-280 | 30 | 730 | 8 |
| 4YK1860 | 1800X6000 | 70 | 120 | 80-280 | 37 | 730 | 8 |
| 2YK2160 | 2100X6000 | 70 | 120 | 100-450 | 30 | 730 | 8 |
| 3YK2160 | 2100X6000 | 70 | 120 | 100-450 | 30 | 730 | 8 |
| 4YK2160 | 2100X6000 | 70 | 120 | 100-450 | 45 | 730 | 8 |
| 2YK2470 | 2400X7000 | 70 | 120 | 160-380 | 30 | 730 | 8 |
| 3YK2470 | 2400X7000 | 70 | 120 | 160-380 | 37 | 730 | 8 |
| 4YK2470 | 2400X7000 | 70 | 120 | 160-380 | 45 | 730 | 8 |
Application Field
It is widely used in the separation of gold, tin, titanium, hematite, iron ore, coal and other minerals, especially in the separation of manganese and barite.
