Product Details:
|
| Warranty: | 12 Months From Production | Capacity(t/h): | 70-1000tph |
|---|---|---|---|
| Application: | Quarry,limestone,coal,etc | Discharge Sizes: | 0-8mm |
| Max. Feeding Size: | 100mm | Weight: | 8.9tons |
| Power(Kw): | 132Kw | Certification: | CE And ISO Certificates |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support | Product Name: | Hot Sale Hammer Mill Crusher,hammer Mill Stone Crusher |
| Spare Parts Supply: | Lifelong Time | Name: | Podwer Hammer Mill,limestone/gypsum/ Shale Hammer Crusher |
| Keyword: | Hammer Crusher,hammer Grinding Mill, Impact Hammer Mill | The Machines Classification: | Building Stone Production Line,Stone Crusher Machine,Small Stone Machine,hammer Mill Crusher For Sale |
| Highlight: | Hammer Crusher Machine 1000 TPH,Coarse Hammer Crusher Machine,Hammer Mill Coal Crusher |
||

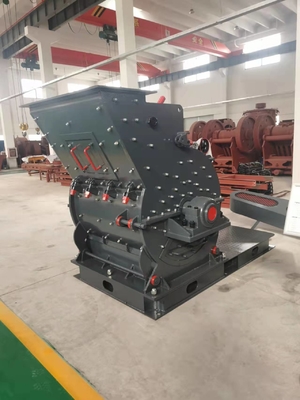

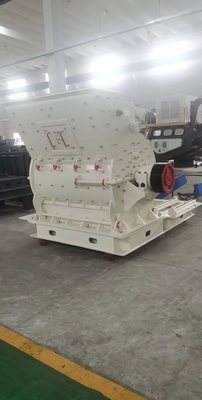

Coarse grinding mill Performance and Features
1. High capacity, big crushing ratio;
2. Low power consumption, uniform granularity;
3. Mechanical structure is simple, easy to use;
4. Investment costs less, more Convenient Management.
Technical Specifications of coarse grinding mill:
| Model | Rotor diameter (mm) |
Rotor length (mm) |
Rotor speed (r/mm) |
Feed head size (mm) |
Max feed size (mm) |
Fineness(mm) | Processing (t/h) |
Motor Power (Kw) |
The number of hammer | Dimensions L*W*H (mm) |
| PC08-75 | 750 | 800 | 800-1000 | 320×930 | <50 | 0-5 | 20-40 | 55-75 | 18 | 2310*1665*1610 |
| PC12-90 | 900 | 1200 | 800-1000 | 400×1200 | <50 | 0-5 | 35-70 | 75-90 | 32 | 2840*2100*2020 |
| PC15-132 | 1150 | 1500 | 550-800 | 500×1500 | <100 | 0-8 | 60-100 | 110-132 | 32 | 3720*2650*2540 |
Note:This specification is just reference,any changes are subject to the Coarse Grinding Mill products.
