Automatic Moving Inclined Aggregate Conveyor Belt Long Distance Mining Ore Sand

Large Image : Automatic Moving Inclined Aggregate Conveyor Belt Long Distance Mining Ore Sand

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	RUNWELL
Certification:	CE,ISO certificates
Model Number:	B500,B650,B800,B1000,B1200, B1400,B1600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD10000-100000
Packaging Details:	40ft Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time:	10-20 working days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	50 sets per month

Contact Now

Automatic Moving Inclined Aggregate Conveyor Belt Long Distance Mining Ore Sand

Description

Material:	Rubber + EP Fabric	Power(w):	7.5kW - 550kW
Material Feature:	Heat Resistant,Fire Resistant,oil Resistance/fire Resistance/weatherproof/hard Wearing,rubber Belt	Structure:	Belt Conveyor,Conveyor System, Belt Transport System
Voltage:	380V/440V, 50Hz.60Hz	Product Name:	Heavy Duty Belt Conveyor,large Capacity Conveyor Belt Used For General Industrial Equipment,Chinese Manufacturer Small Adjustable Speed Conveyor Belt
Warranty:	12 Months From Production Time Or 18 Months From Leave Factory	Name:	DT-II Type Belt Conveyor
Belt Width:	B500,B650,B800,B1000,B1200, B1400,B1600	Application:	Cement,crusher Plant, Coal, Iron Ore, Copper Ore Mine
Highlight:	Automatic Aggregate Conveyor Belt , Moving Aggregate Conveyor Belt , Inclined Belt Conveyor

Long Distance/Good Quality/Automatic Moving/Mining belt Convey Machines/Ore Sand Convey System/Rubber conveyor Belt

Automatic Moving Inclined Aggregate Conveyor Belt Long Distance Mining Ore Sand

Description

Belt Conveyor

Product Introduction

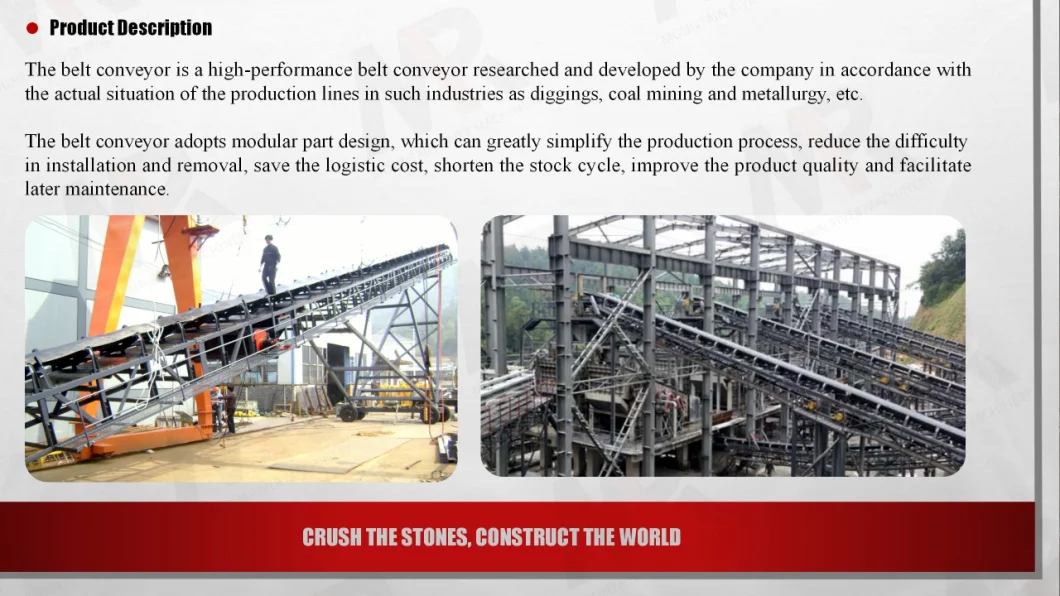

The belt conveyor is a high-performance belt conveyor researched and developed by the company in accordance with the actual situation of the production lines in such industries as diggings, coal mining and metallurgy, etc.The belt conveyor adopts modular part design, which can greatly simplify the production process, reduce the difficulty in installation and removal, save the logistic cost, shorten the stock cycle, improve the product quality and facilitate later maintenance.

Automatic Moving Inclined Aggregate Conveyor Belt Long Distance Mining Ore Sand 0

High Quality Belt Conveyor for Quarry Crushing Plant

Features
Product advantages:
1. It is one of the cheapest ways to move material long distances.
2. There is virtually no degradation of your product caused by conveying.
3. The conveyor can have changes in elevation.
4. The material can be visible on the belt while being conveyed.
5. Belts can be loaded virtually any place along the belt.
6. The belt can have "trippers" to unload the belt almost any place.

Product Description

Belt Conveyors are the most used for the transport of bulk materials and solid objects at great speed,covering great distances up to 30000meters.

Long Span Belt Conveyor for Power Plant Meet Cema Standard

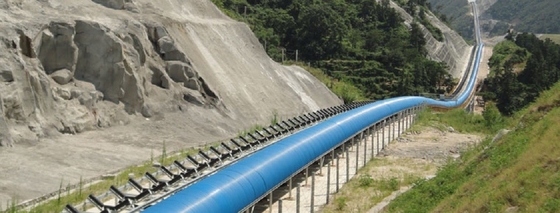

Open troughed belt conveyors are used in a number of industries to transport bulk materials quickly across large distances and rough terrain and suitable for conveying any type of material that must be transported quickly across vast distances through rough terrain. With extremely tight curve radii and large centre distances, these systems enable very high throughput and high mass flows of robust and heavy materials.

Belt Conveyor Technical Specifications
Belt Conveyor Technical Specifications
Belt width(mm)	Belt speed (m/s)
	0.8	1.0	1.3	1.6	2.0	2.5	3.2	4.0	5.0	6.5
	Capacity (m³/h)
500	69	87	108	139	174	217
650	127	159	198	254	318	397
800	198	248	310	397	496	620	781
1000	324	405	507	649	811	1014	1278	1622
1200		593	742	951	1188	1486	1872	2377	2971
1400		825	1032	1321	1652	2065	2602	3304	4130
1600					2186	2733	3444	4373	5466
1800					2795	3494	4403	5591	6989	9083
2000					3470	4338	5466	6941	8676	11277
2200							6843	8690	10863	14120
2400							8289	10526	13158	17104
Remark: Capacity is calculated by material horizontal conveyoring ,20°Operating stacking Angle,35°roller groove Angle .

Centre Distance:	Depending on the topographical conditions,conveyors of up to 30 km are possible
Curve Radius - Standard values:	400 m for horizontal curves, vertical curves depending on the application
Conveying Capacity:	Up to 10,000 t/h, e.g. iron ore
Conveying Speed:	Up to 6.5 m/s
Angles of Inclination:	Up to 20° depending on the material to be conveyed

Features:

1. Reliable and efficient - designed for decades.
2. Curved single-flight conveying systems of 20 km and longer.
3. Conveying capacity up to 10,000 t/h.

4. Conveying speeds up to 6.5 m/s.
5. High-temperature bulk goods can be transported.
6. Highly economical with low investment costs.
7. Low-wear construction with a lengthy service life even with highly abrasive materials.
8. Angle of inclination up to 30°.

RUNWELL Belt Conveyors for Transporting of Bulk Matierial Over Long Distances:
Open troughed belt conveyors are suitable for conveying any type of material that must be transported quickly across vast distances through rough terrain. With extremely tight curve radii and large centre distances, these systems enable very high throughput and high mass flows of robust and heavy materials.Different materials can be conveyed in the upper and lower strands at the same time. This makes troughed belt conveyors particularly flexible and efficient. In addition, low investment costs and the short amortisation time ensure high cost-effectiveness.Rough, mountainous and fragmented terrain with extreme differences in height is nothing our belt conveyors can't handle. The routing of the XinRiSheng belt conveyors is adapted to the geographic and topographic conditions by combining horizontal and vertical curves.

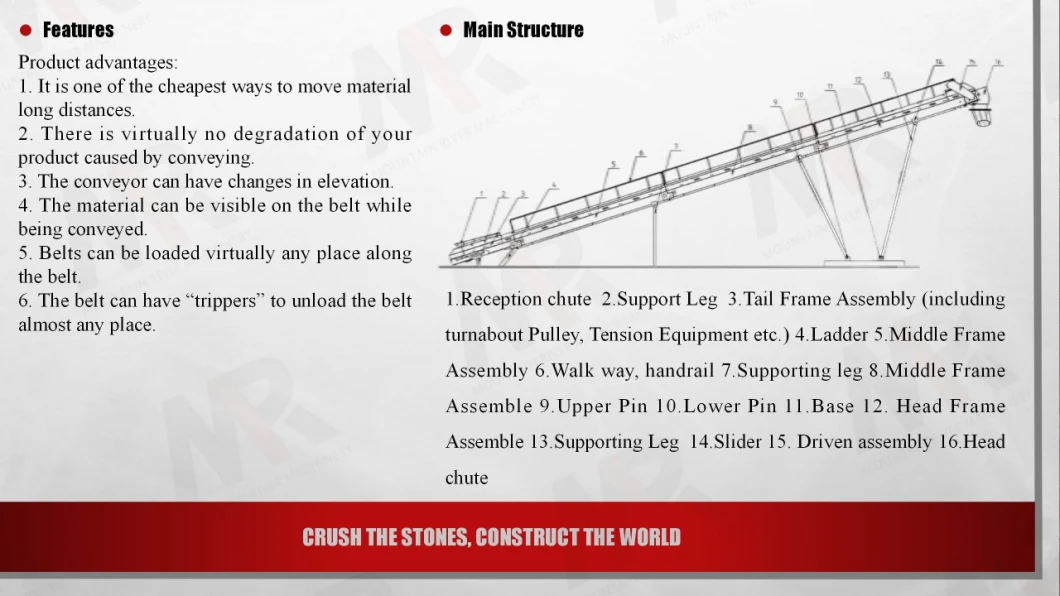

Main Structure
1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including turnabout Pulley, Tension Equipment etc.)
4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting leg 8.Middle Frame Assemble 9.Upper Pin
10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg 14.Slider 15.Driven assembly 16.Head chute
High Quality Belt Conveyor for Quarry Crushing Plant

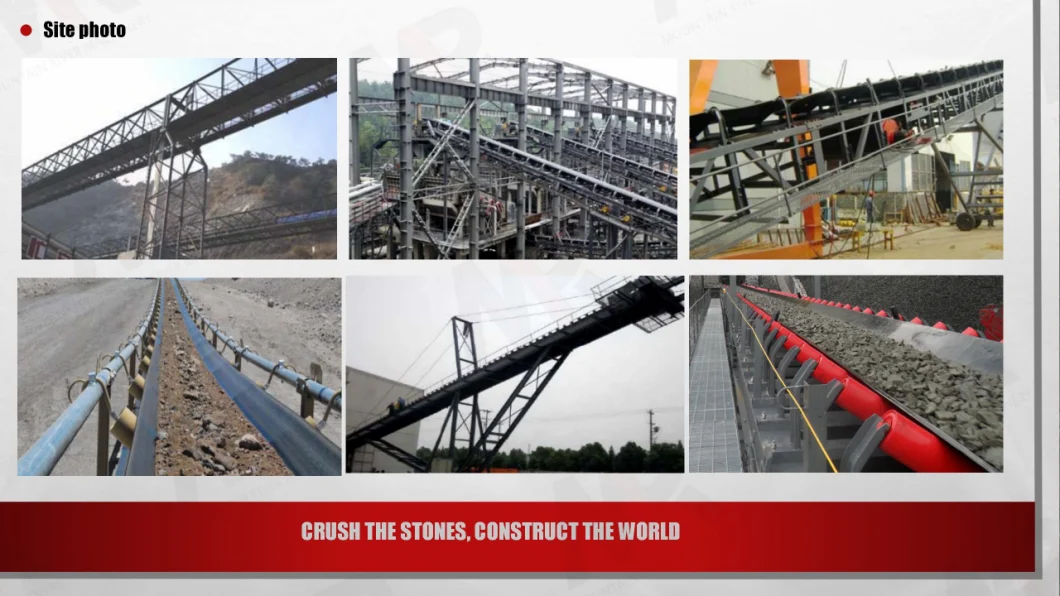

Site Photo

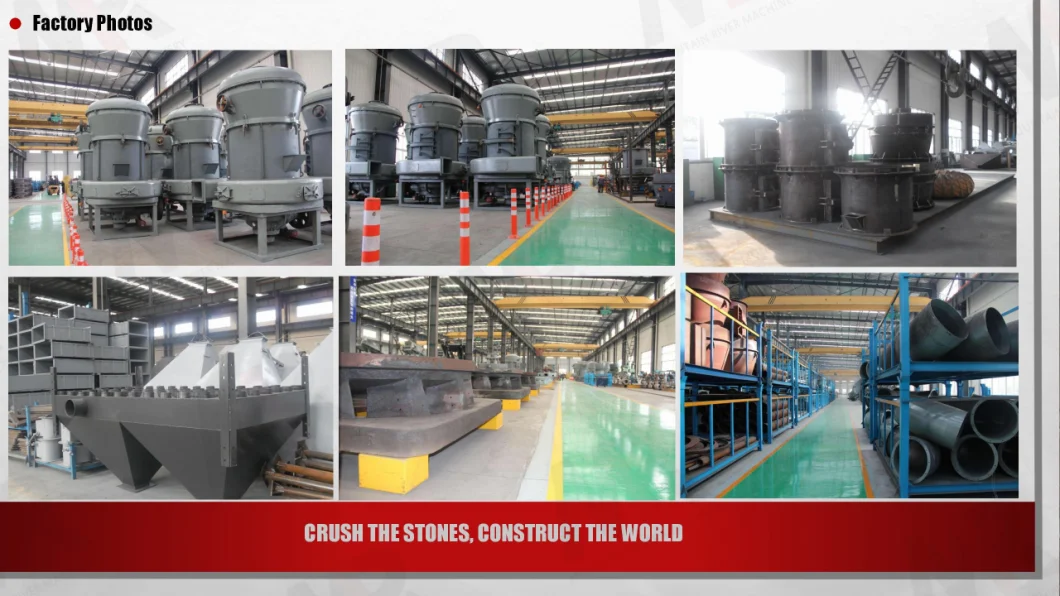

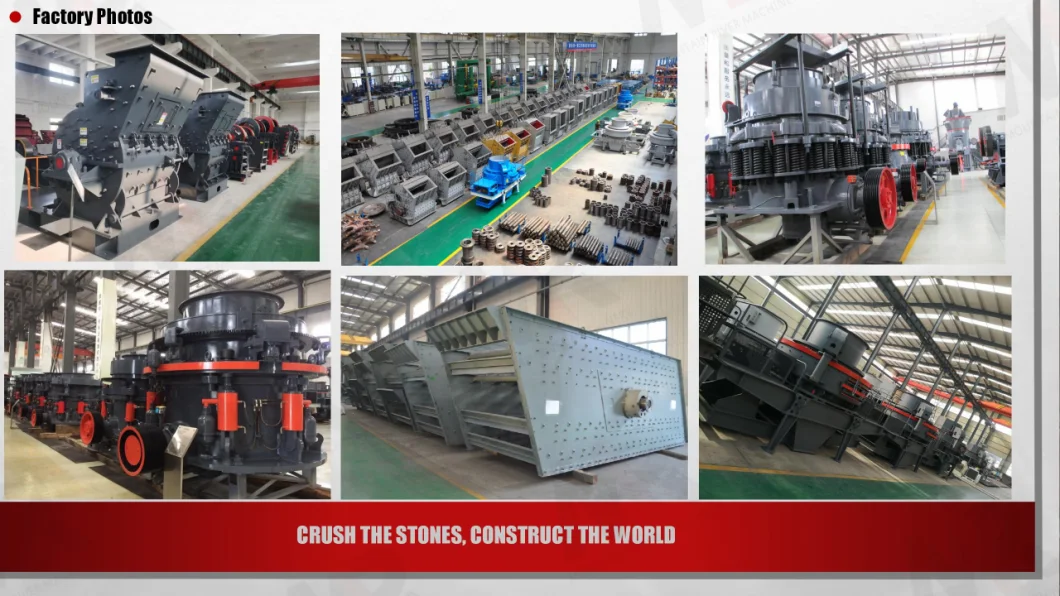

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (MR) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
High Quality Belt Conveyor for Quarry Crushing Plant

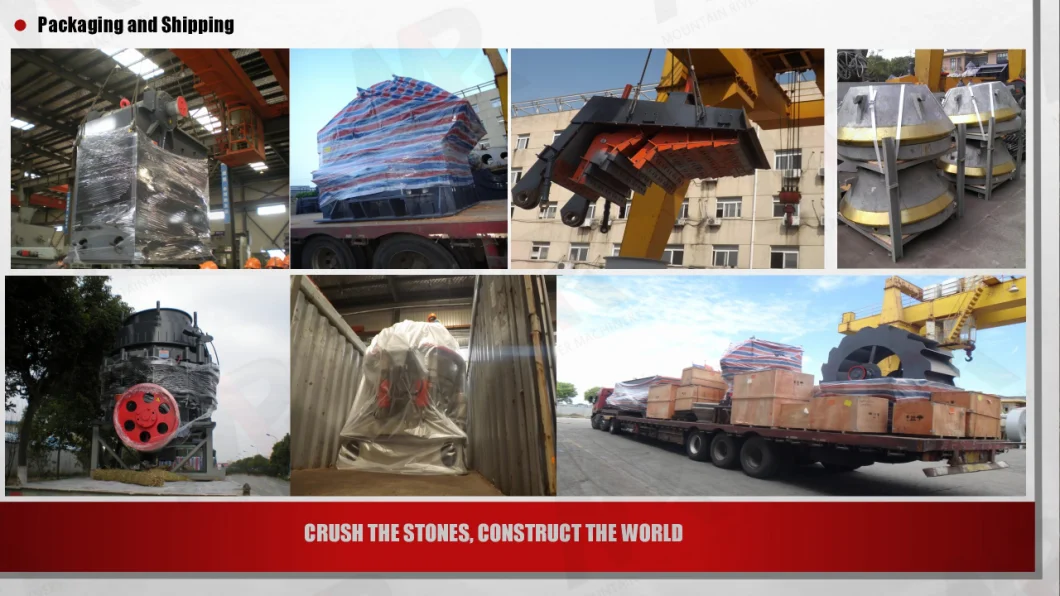

Packaging and Shipping

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
