EP500/3 EP200 Fabric Movable Belt Conveyor Rubber Mining Fire Resistant

EP500/3 EP200 Fabric Movable Belt Conveyor Rubber Mining Fire Resistant
EP500/3 EP200 Fabric Movable Belt Conveyor Rubber Mining Fire Resistant EP500/3 EP200 Fabric Movable Belt Conveyor Rubber Mining Fire Resistant

Large Image :  EP500/3 EP200 Fabric Movable Belt Conveyor Rubber Mining Fire Resistant

Product Details:
Place of Origin: Shanghai, China
Brand Name: RUNWELL
Certification: CE,ISO certificates
Model Number: B500,B650,B800,B1000,B1200, B1400,B1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10000-100000
Packaging Details: Container, Nude Packs, in Bulk; Export Packing Standard
Delivery Time: 10-20 working days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 50 sets per month
Contact Now

EP500/3 EP200 Fabric Movable Belt Conveyor Rubber Mining Fire Resistant

Description
Material: Rubber + EP Fabric Material Feature: Heat Resistant,Fire Resistant,oil Resistance/fire Resistance/weatherproof/hard Wearing,rubber
Structure: Belt Conveyor,Conveyor System Power(w): 11kW - 90kW
Voltage: 380V/440V, 50Hz.60Hz Product Name: Belt Conveyor,large Capacity Conveyor Belt Used For General Industrial Equipment,Chinese Manufacturer Small Adjustable Speed Conveyor Belt
Warranty: 12 Months Name: DT-II Type Belt Conveyor
Belt Width: B500,B650,B800,B1000,B1200, B1400,B1600 Application: Cement,crusher Plant,mining Area
Highlight:

EP500/3 Movable Belt Conveyor

,

EP200 Movable Belt Conveyor

,

Fabric Belt Conveyor

Ep500/3 EP200 Fabric Rubber Conveyor Belt Manufacturer mobile belt conveyormining conveyor belt





Description

Belt Conveyor

Product Introduction
The belt conveyor is a high-performance belt conveyor researched and developed by the company in accordance with the actual situation of the production lines in such industries as diggings, coal mining and metallurgy, etc.The belt conveyor adopts modular part design, which can greatly simplify the production process, reduce the difficulty in installation and removal, save the logistic cost, shorten the stock cycle, improve the product quality and facilitate later maintenance.
High Quality Belt Conveyor for Quarry Crushing Plant
Features
Product advantages:
1. It is one of the cheapest ways to move material long distances.
2. There is virtually no degradation of your product caused by conveying.
3. The conveyor can have changes in elevation.
4. The material can be visible on the belt while being conveyed.
5. Belts can be loaded virtually any place along the belt.
6. The belt can have "trippers" to unload the belt almost any place.

Main Structure
1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including turnabout Pulley, Tension Equipment etc.)
4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting leg 8.Middle Frame Assemble 9.Upper Pin
10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg 14.Slider 15.Driven assembly 16.Head chute
High Quality Belt Conveyor for Quarry Crushing Plant
Technical Parameters
Belt Width
(mm)		 Belt Length (m) / Power (kw) Belt Speed
(m/s)		 Capacity
(t/h)
400 <12/1.5 12-20/2.2 20-25/3 0.8-2.0 40 -80
500 <12/3 12-30/4 20-30/5.5 0.8-2.0 78-191
650 <12/4 12-20/5.5 20-30/7.5 0.8-2.0 131-323
800 <10/4 10-15/5.5 15-25/7.5 1.0-2.0 278-546
1000 <10/5.5 10-20/7.5 20-25/11 1.0-2.0 435-853
1200 <10/7.5 10-20/11 20-25/15 1.0-2.0 655-1284

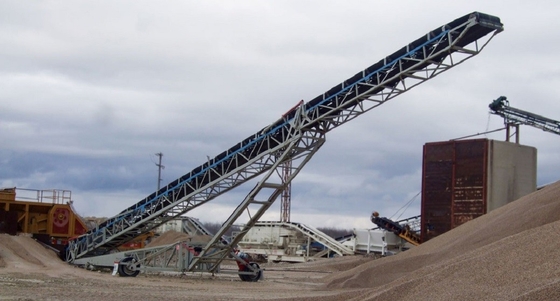

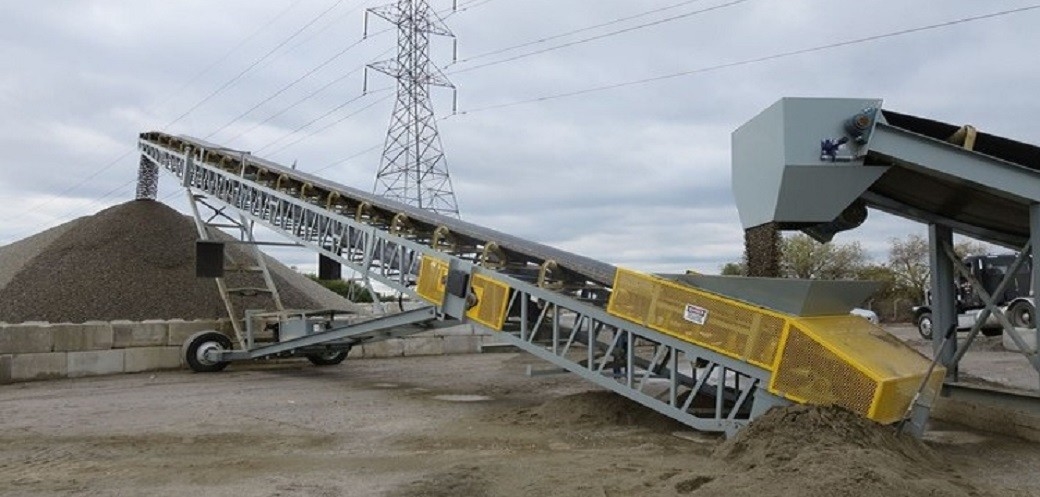

Site Photo
High Quality Belt Conveyor for Quarry Crushing Plant

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (MR) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
High Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing PlantHigh Quality Belt Conveyor for Quarry Crushing Plant
Packaging and Shipping
High Quality Belt Conveyor for Quarry Crushing Plant
Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
